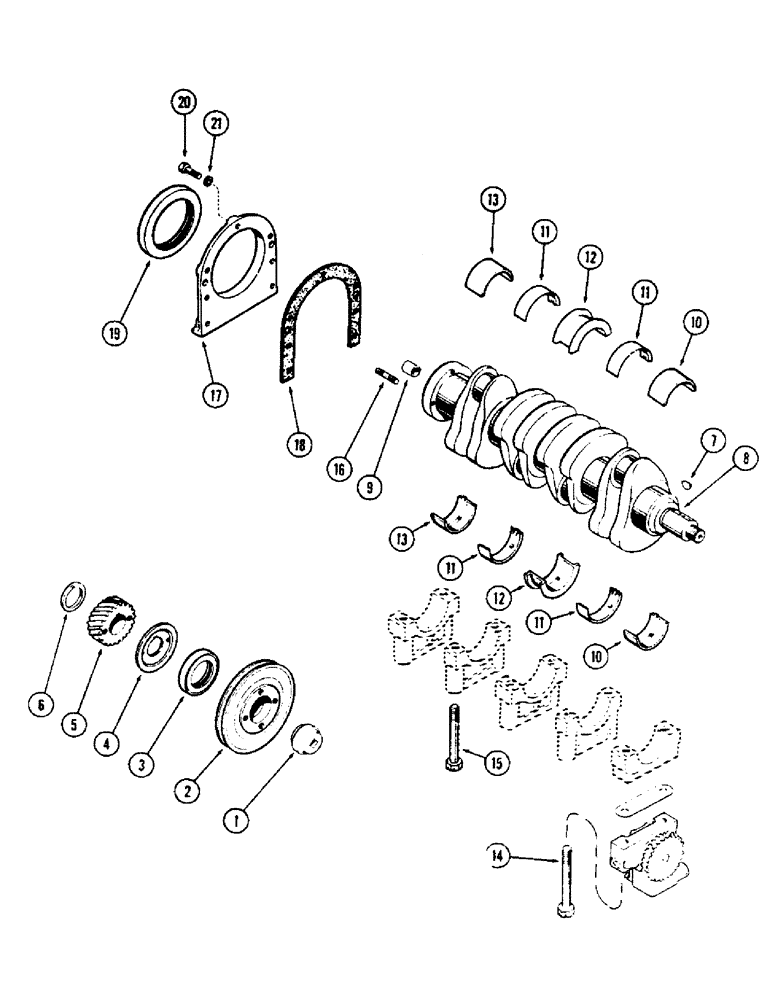

Запчасти Case 500 (016) - CRANKSHAFT, (188) DIESEL ENGINE (01) - ENGINE

1

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

2

G11342

X

PULLEY - crankshaft & fan drive

1шт.

3

A36609

OIL SEAL

- oil, front crankshaft

1шт.

4

A29259

SLINGER

- oil, crankshaft

1шт.

5

A29263

GEAR

- crankshaft (24 T)

1шт.

6

A29294

BUSHING

SPACER - thrust, crankshaft

1шт.

7

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

8

A37211

CRANKSHAFT

- engine (w/13 int. spline teeth) (1st used engine sn 2614827)

1шт.

8

G11889

CRANKSHAFT

- engine (w/bearing) (Used prior to eng. sn 2614827)

1шт.

9

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot (Used w/G11889 crankshaft)

1шт.

10

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER KIT - frt. brg. (Std. size) (Set of 2)

1шт.

10

A36481

LINING

LINER KIT - frt. brg. (-.002") (Set of 2)

1шт.

10

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER KIT - frt. brg. (-.010") (Set of 2)

1шт.

10

A36483

LINING

LINER KIT - frt. brg. (-.020") (Set of 2)

1шт.

10

A36484

LINING

LINER KIT - frt. brg. (-.030") (Set of 2)

1шт.

11

A36485

LINING

LINER KIT - interm. brg. (Std. size) (Set of 2)

2шт.

11

A36486

LINING

LINER KIT - interm. brg. (-.002") (Set of 2)

2шт.

11

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINER KIT - interm. brg. (-.010") (Set of 2)

2шт.

11

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER KIT - interm. brg. (-.020") (Set of 2)

2шт.

11

A36489

LINING

LINER KIT - interm. brg. (-.030") (Set of 2)

2шт.

12

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER KIT - center brg. (Std. size) (Set of 2)

1шт.

12

A36491

LINING

LINER KIT - center brg. (-.002") (Set of 2)

1шт.

12

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER KIT - center brg. (-.010") (Set of 2)

1шт.

12

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER KIT - center brg. (-.020") (Set of 2)

1шт.

12

A36494

LINING

LINER KIT - center brg. (-.030") (Set of 2)

1шт.

13

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER KIT - rear brg. (Std. size) (Set of 2)

1шт.

13

A36496

LINING

LINER KIT - rear brg. (-.002") (Set of 2)

1шт.

13

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER KIT - rear brg. (-.010") (Set of 2)

1шт.

13

A36498

KIT

LINER KIT - rear brg. (-.020") (Set of 2)

1шт.

13

A36499

BEARING LINER

LINER KIT - rear brg. (-.030") (Set of 2)

1шт.

14

G49077

BOLT

- frt. cap & oil pump (1/2" x 5-1/8")

2шт.

15

G49078

BOLT - interm., center & rear brg. cap

8шт.

16

A29434

STUD

-, Serial Range: crankshaft-flywheel

4шт.

17

G2017

RETAINER

- rear oil seal

1шт.

18

G46802

GASKET

- rear oil seal retainer

1шт.

19

A36610

OIL SEAL

- oil, crankshaft, rear

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

20

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Retainer Hex, 1/4"-20 x 1", G5

3шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.
