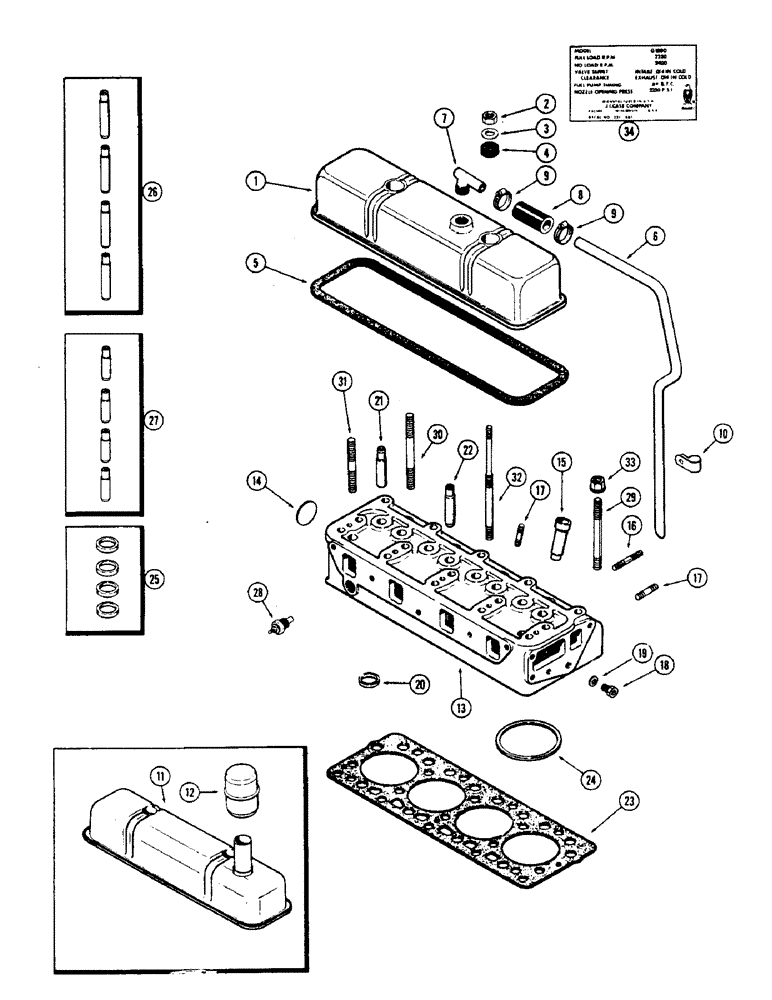

Запчасти Case 500 (012) - CYLINDER HEAD ASSEMBLY, (188) DIESEL ENGINE (01) - ENGINE

1

A36815

COVER

- valve & head (Engine s.n. 9802215 & after)

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

3

G49400

WASHER

- cover nut

2шт.

4

G46867

GROMMET

- rubber

2шт.

5

G46866

GASKET

-, Serial Range: cover-head

1шт.

6

D35014

TUBE

- breather (Eng. s.n. 9802215 & after)

1шт.

7

A9155

90 ELBOW

- breather tube (Eng. s.n. 9802215 & after)

1шт.

8

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube (Eng. S/N 9802215 & after) 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

9

214-10

X

CLAMP - hose (Eng. s.n. 9802215 & after)

2шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube to engine (Eng. s.n. 9802215 & after)

1шт.

11

A35198

COVER - valve & head (Prior eng. s.n. 9802215)

1шт.

12

A36608

CAP

- breather (Prior eng. s.n. 9802215)

1шт.

13

A36880

HEAD ASSY. - cylinder

1шт.

14

A30036

PLUG

- 1-3/4" expansion

1шт.

15

G11724

LINER

- fuel injector

4шт.

16

A35175

STUD

- manifold, 3/8" N.C. x 2-7/16"

6шт.

17

A29431

STUD

- manifold & injector, 3/8" N.C. x 1-3/4"

12шт.

18

G49083

BOLT

- drilled, gear cover

1шт.

19

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof, 1/2" ext.

1шт.

20

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 25)

4шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order ref. 26)

4шт.

22

NS

NOT SERVICED

GUIDE - intake valve stem (Order ref. 27)

4шт.

23

A36877

GASKET

-, Serial Range: head-block

1шт.

24

A36900

RING, PISTON

RING - fire, cylinder (Std. w/orange mark)

4шт.

24

A37031

RING

- five, cylinder (Oversize coated black)

4шт.

25

G11986

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

26

G11946

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

27

G11945

GUIDE

S - intake valve stem (Set of 4)

1шт.

28

A13796

X

UNIT - sending, engine temperature

1шт.

29

A36902

STUD

- head to block, 1/2" N.C. x 5-5/8"

11шт.

30

A36905

STUD

- head to block, 1/2" N.C. x 6-1/8"

2шт.

31

A36904

STUD

- head to block, 1/2" N.C. x 4"

4шт.

32

A36903

STUD

- head and cover

2шт.

33

A37030

FLANGE NUT

- flanged, head stud

19шт.

34

321-887

DECAL - engine data

1шт.
