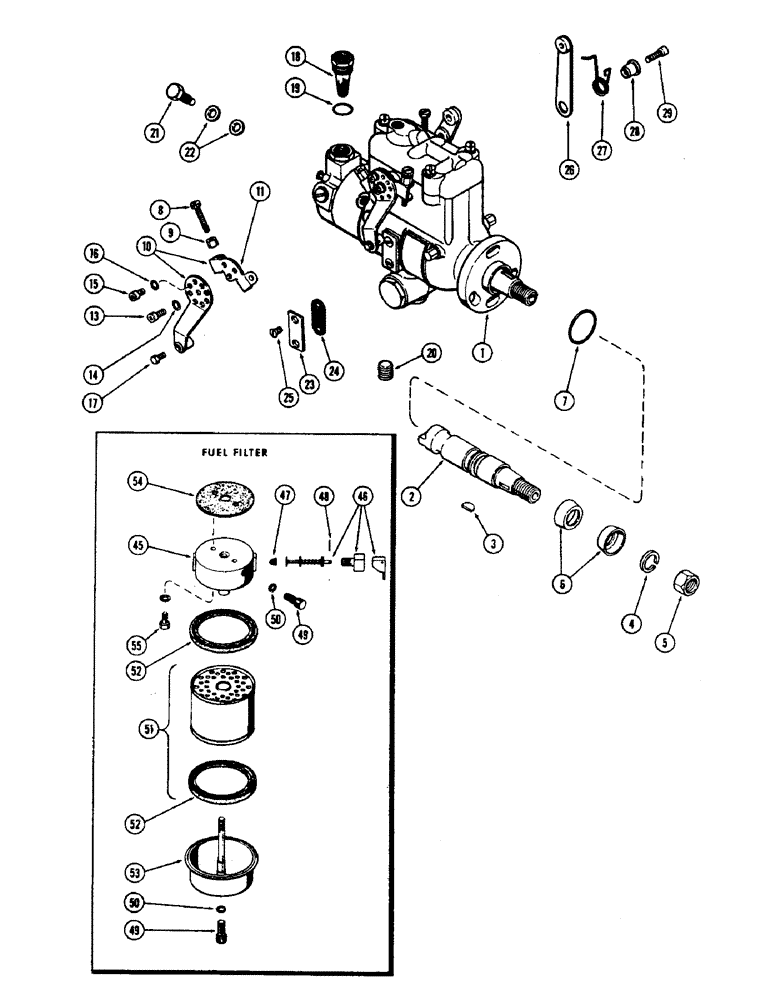

Запчасти Case 500 (010) - FUEL INJECTION PUMP, (188) DIESEL ENGINE (01) - ENGINE

1

A35776

PUMP

ASSY. - fuel injection

1шт.

2

G47113

SHAFT

- pump drive

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Drive gear #6, 5/32" x 5/8"

1шт.

4

G49081

WASHER

- lock, drive gear nut

1шт.

5

25-119

NUT,9/16"-18, G5

- drive gear ret., 9/16" N.F. half hex.

1шт.

6

R14711

SEAL

- drive shaft

2шт.

7

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - injection pump

1шт.

8

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

9

73651

SCREW

- idle screw

1шт.

10

G45337

ARM

- fuel shut-off

1шт.

11

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

13

73670

SCREW

-, Serial Range: arm-pump

1шт.

14

73630

LOCK WASHER

WASHER - pump screw

1шт.

15

73646

SCREW

- shut-off arm to stop arm

1шт.

16

73645

SEALING RING COLLAR

- lock, stop arm screw

1шт.

17

73667

IGNITION SWITCH

- clamp, shut-off cable

1шт.

18

73671

ROPE

FILTER - fuel inlet

1шт.

19

51200280

SEAL

- inlet filter

1шт.

20

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

End plate Hex Soc, 1/4"-18 NPTF

1шт.

21

73613

SCREW

FITTING - fuel lines

4шт.

22

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - fitting

8шт.

23

G46330

COVER

- timing window

1шт.

24

73453

GASKET

- timing window cover

1шт.

25

51200263

SCREW

- timimg window cover

2шт.

25

G45338

ARM

- throttle

1шт.

27

G48505

SPRING

- throttle arm

1шт.

28

G49621

RETAINER

- throttle arm spring

1шт.

29

G49079

SET SCREW

SCREW - retainer & throttle arm

1шт.

G45254

SET OF PARTS

FILTER ASSY. - fuel, engine

1шт.

45

NSS

NOT SOLD SEPARAT

BODY - filter (Order G45254), fuel

1шт.

46

G45390

VALVE ASSY. - shut-off, fuel filter

1шт.

47

G46898

SEAL - shut-off valve, fuel filter

1шт.

48

138-6

LOCK PIN,1/16" x 1/2", Slotted

Pin, , lever, fuel filter 1/16" x 1/2", Slotted

1шт.

49

G49080

PLUG

SCREW - air vent & drain, fuel filter

2шт.

50

G46886

O-RING

GASKET - plug screw, fuel filter

2шт.

51

A35668

FILTER

ELEMENT KIT - filter, fuel

1шт.

52

G46895

GASKET

- filter element, fuel filter

2шт.

53

G45389

BOWL

ASSY. - sediment, fuel filter

1шт.

54

G46874

GASKET

- filter to tank, fuel filter

1шт.

55

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - cap, 1/4 x 5/8" N.F. socket hd., fuel filter

2шт.
