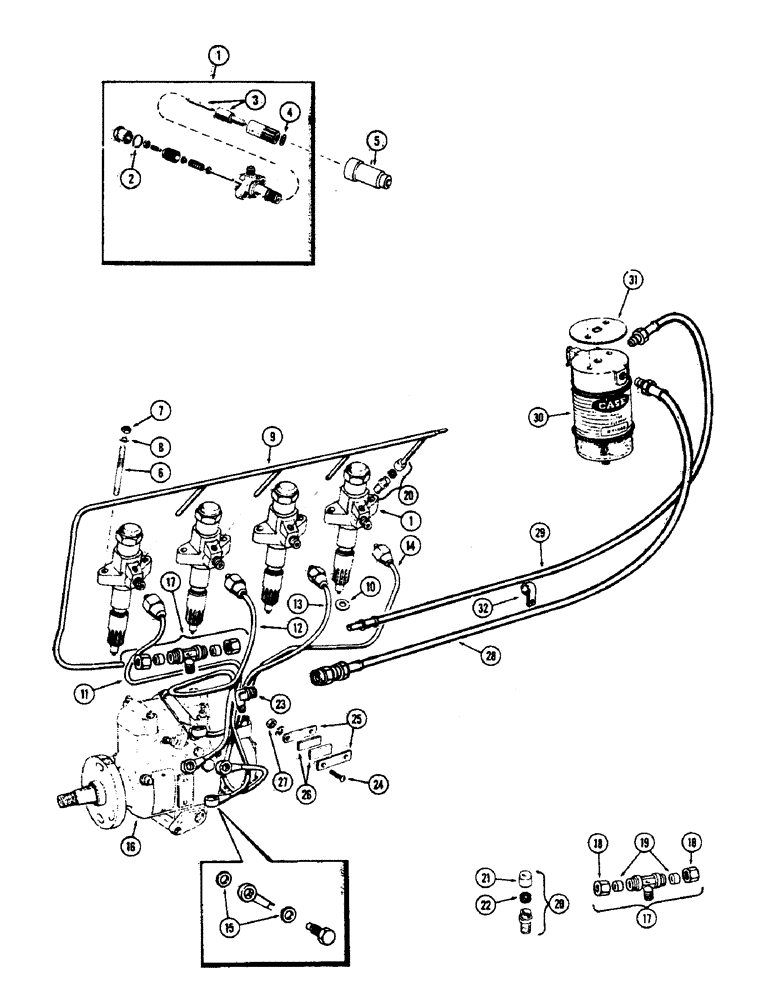

Запчасти Case 500 (008) - FUEL INJECTION SYSTEM, (188) DIESEL ENGINE (01) - ENGINE

1

A49056

NOZZLE CAP

INJECTOR ASSY. - fuel

4шт.

2

G46885

GASKET

- cap

1шт.

3

A35085

NOZZLE CAP

NOZZLE - injection

1шт.

4

G49068

GASKET

- seat, injection

1шт.

5

G11724

LINER

- injector nozzle

4шт.

6

A29431

STUD

- nozzle holder

8шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" N.C., hex.

8шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

A36514

TUBE ASSY.

TUBE - leak-off manifold

1шт.

10

G49068

GASKET

- injector nozzle

4шт.

11

A35058

TUBE

ASSY. - injector (#1 cyl.) (Incl. item 15)

1шт.

12

A35059

TUBE

ASSY. - injector (#2 cyl.) (Incl. item 15)

1шт.

13

A35060

TUBE

ASSY. - injector (#3 cyl.) (Incl. item 15)

1шт.

14

A35061

TUBE

ASSY. - injector (#4 cyl.) (Incl. item 15)

1шт.

15

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - screw connector

1шт.

16

A35776

PUMP

ASSY. - fuel injection (Repairs, figure 10)

1шт.

17

222-73

TEE,5/16" Flex Tube Run x 1/8" NPTF Br

ASSY. - 5/16"

1шт.

18

222-113

TUBE NUT,9/16"-24

NUT - 5/16 tube O.D.

2шт.

19

222-103

SLEEVE,5/16" Tube

2шт.

20

222-21

FITTING,7/16"-24 x 1/8" NPTF

4шт.

21

222-111

TUBE NUT,7/16" - 24

NUT - 3/16" tube O.D.

1шт.

22

222-101

SLEEVE,3/16" Tube

- connector, O.D. 3/16" Tube

1шт.

23

222-4045

ELBOW - 5/16 x 1/4"

1шт.

24

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach., #10 x 1" N.F., rd. hd.

2шт.

25

A27978

CLAMP

- injector tubes

2шт.

26

A27980

CUSHION

- injector tube clamp

2шт.

27

129-7

NUT,Hex, #10 - 24

- #10 N.F., hex.

2шт.

28

A16427

HOSE

- filter to injection pump

1шт.

29

A16428

HOSE - injection, Serial Range: pump-filte4r

1шт.

30

G45254

SET OF PARTS

FILTER - fuel (Repairs, figure 10)

1шт.

31

G46874

GASKET

- fuel, Serial Range: filter-tank

1шт.

32

A10852

CLIP - filter hose

3шт.
