Запчасти Case 400C (148) - PR75 DIFFERENTIAL (06) - POWER TRAIN

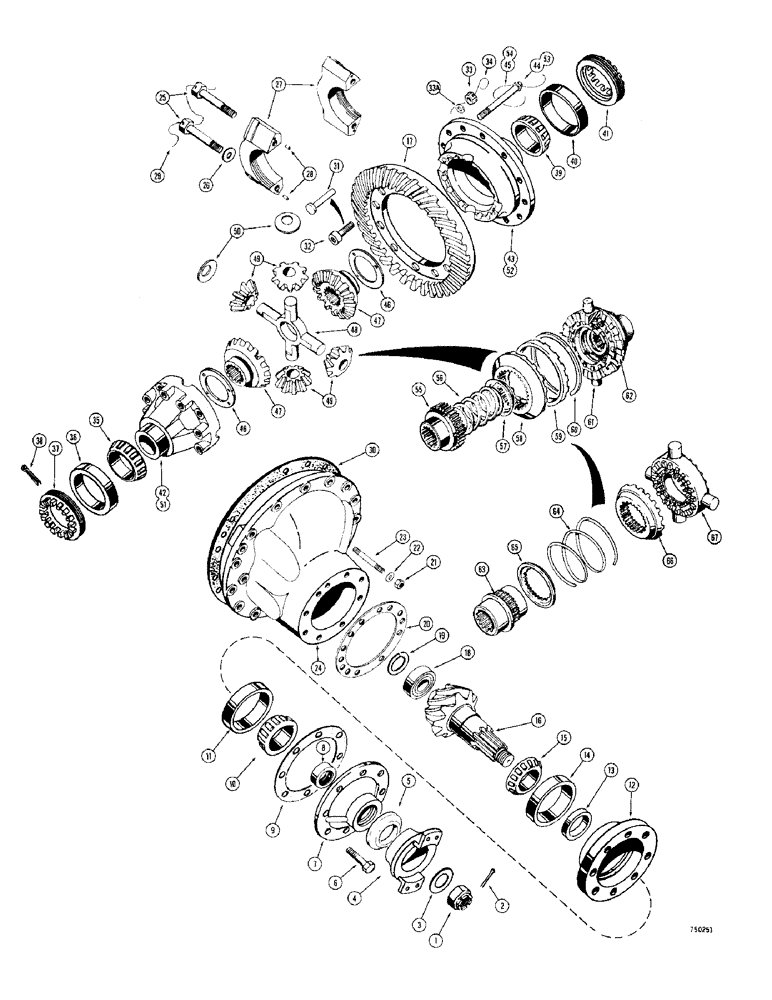

Схема запчастей Case 400C - (148) - PR75 DIFFERENTIAL (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

D45631

AXLE ASSEMBLY - complete, Hi-Traction (Power shift models only), Includes: Ref. 1 - 29

1шт.

D45632

AXLE ASSEMBLY - complete, No-Spin (Power shift models only), Includes: Ref. 1 - 29

1шт.

D50655

AXLE ASSEMBLY - complete, Hi-Traction (Synchromesh models only), Includes: Ref. 1 - 29

1шт.

D50656

AXLE ASSEMBLY - complete, No-Spin (Synchromesh models only), Includes: Ref. 1 - 29

1шт.

1

L30731

SLOTTED NUT

- yoke to pinion shaft (If used)

1шт.

1a

L35091

NUT

NUT - special, lock (If used) Not shown

1шт.

3

A13124

WASHER

- special

1шт.

D47349

YOKE ASSEMBLY - drive shaft, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

5

A18189

SLINGER

- oil

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

A18184

COVER

ASSEMBLY - pinion shaft, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

8

A18185

OIL SEAL

- oil

1шт.

9

A18190

GASKET

-, Serial Range: cover-cage

1шт.

L30333

CAGE

ASSEMBLY - pinion shaft bearing, Includes: Ref. 10 - 15

1шт.

10

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - bearing, tapered roller type

1шт.

11

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - bearing, tapered roller type

1шт.

12

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft bearing

1шт.

13

A18358

SPACER

- bearing, .172" thick

1шт.

13

A18359

SPACER

- bearing, .173" thick

1шт.

13

A18360

SPACER

- bearing, .174" thick

1шт.

13

A18361

SPACER

- bearing, .175" thick

1шт.

13

A18362

RING

SPACER - bearing, .176" thick

1шт.

13

A18363

SPACER

- bearing, .177" thick

1шт.

13

A18364

SPACER

- bearing, .183" thick

1шт.

13

A18365

SPACER

- bearing, .189" thick

1шт.

13

A18366

SPACER

- bearing, .195" thick

1шт.

13

A18367

SPACER

- bearing, .201" thick

1шт.

L30395

BEARING

CUP AND CONE - tapered roller bearing, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

CUP - bearing, tapered roller type

1шт.

15

NSS

NOT SOLD SEPARAT

CONE - bearing, tapered roller type

1шт.

D47348

GEAR

SET - drive and pinion, matched set (Power shift models only)

1шт.

D50998

GEAR-SET

GEAR SET - drive and pinion, matched set (Synchromesh models only), Includes: Ref. 16 and 17

1шт.

REF#15B-GEAR SET- HAS 6 TEETH ON PINION,35 TEETH ON RING GEAR.

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

18

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - inner, drive pinion (Ball type)

1шт.

19

A18199

SNAP RING,#106, Ext

Ring, Snap, , bearing #106, Ext

1шт.

20

A18197

SHIM,.003" Thk

Bearing cage .003" Thk

1шт.

20

A18198

SHIM,.005" Thk

Bearing cage .005" Thk

1шт.

21

129-530

NUT,7/16"-20, G8

10шт.

22

D47367

WASHER

- special (7/16")

10шт.

23

A18207

STUD

- carrier to axle housing

10шт.

A18168

CARRIER AND CAP ASSEMBLY - differential, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

25

A18171

CAP

BOLT - special

4шт.

26

L30737

WASHER

- special

4шт.

27

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

28

NSS

NOT SOLD SEPARAT

DOWEL - cap

4шт.

29

391-625

LOCKWIRE - bolt, #16 (18" long) cut as required

2шт.

30

L35977

GASKET

- carrier to axle housing

1шт.

31

NSS

NOT SOLD SEPARAT

RIVET - drive gear to differential case (Use items 32-34)

12шт.

2

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , If used 1/8" x 1 3/4"

1шт.

32

L35919

BOLT

- special, drive gear to differential case

12шт.

33

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex., slotted (1/2" - 20 NF)

12шт.

33a

D47366

WASHER

- special (Used with L35919 bolt and 131-1138 nut only)

12шт.

34

391-618

ELECTRICAL WIRE

LOCKWIRE - bolt (#16 - 10" long) Cut as required (If used)

6шт.

35

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE - bearing, tapered roller type (R.H. rear - L.H. front)

1шт.

36

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, tapered roller type (R.H. rear - L.H. front)

1шт.

37

A18194

RING

- bearing adjusting (R.H. rear - L.H. front)

1шт.

38

A18196

HARDWARE

PIN - cotter, special

2шт.

39

A18173

ROLLER BEARING

CONE - bearing, tapered roller type (L.H. rear - R.H. front)

1шт.

40

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing, tapered roller type L.H. rear - R.H. front

1шт.

41

A18195

RING

- bearing adjusting (L.H. rear - R.H. front)

1шт.

L34022

TRANSMISSION

DIFFERENTIAL CASE AND GEAR ASSEMBLY - Hi-Traction only, Includes: Ref. 42 - 50

1шт.

D47347

CASE ASSY.

CASE ASSEMBLY - differential, HI -TRACTION ONLY, Includes: Ref. 42 - 45

1шт.

42

NSS

NOT SOLD SEPARAT

CASE - differential, plain half, HI -TRACTION ONLY

1шт.

43

NSS

NOT SOLD SEPARAT

CASE - differential, flange half, HI -TRACTION ONLY

1шт.

44

L30668

SCREW

BOLT - special, drilled lead (When stock is exhausted, order L35899 bolt for service), HI -TRACTION DIFFERENTIAL ONLY

8шт.

44

L35899

BOLT - special, HI -TRACTION DIFFERENTIAL ONLY

8шт.

45

391-627

ELECTRICAL WIRE

LOCKWIRE - bolt, #16 (22" long) Cut as required (Used with L30668 bolt only), HI -TRACTION DIFFERENTIAL ONLY

1шт.

46

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

- thrust, side gear, HI -TRACTION DIFFERENTIAL ONLY

2шт.

46

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

- thrust, side gear, HI -TRACTION DIFFERENTIAL ONLY

2шт.

47

A18179

GEAR

- differential, side, HI -TRACTION ONLY

2шт.

48

A18181

U-JOINT SPIDER

SPIDER - differential, HI -TRACTION ONLY

1шт.

49

A18175

PINION

GEAR - differential, pinion, HI -TRACTION ONLY

4шт.

50

A18176

DISC

WASHER - thrust, HI -TRACTION DIFFERENTIAL ONLY

4шт.

D47420

DIFFERENTIAL CASE AND GEAR ASSEMBLY - No-Spin only, Includes: Ref. 51 - 54

1шт.

D47347

CASE ASSY.

CASE ASSEMBLY - differential, no-spin only, Includes: Ref. 51 - 54

1шт.

51

NSS

NOT SOLD SEPARAT

CASE - differential, plain half, no-spin only

1шт.

52

NSS

NOT SOLD SEPARAT

CASE - differential, flange half, no-spin only

1шт.

53

L30668

SCREW

BOLT - special, drilled head (When stock is exhausted, order L35899 bolt for service), no-spin differential only

8шт.

53

L35899

BOLT - special, no-spin differential only

8шт.

54

391-627

ELECTRICAL WIRE

LOCKWIRE - bolt #16 (22" long) Cut as required (Use with L30668 bolt only), no-spin differential only

1шт.

D47380

DIFFERENTIAL ASSY

NO-SPIN ASSEMBLY - differential (Used prior to axle Sn. MYM145489 except for axle Sn. MYMO21125 and 26) When stock is exhausted, order L35996 No-Spin Ass'y for service only, Includes: Ref. 55 - 67

1шт.

L35996

TOGGLE

NO-SPIN ASSEMBLY - differential (Used Axle Sn. MYMO21125 and 26 and MYM145489 and after) only, Includes: Ref. 55 - 67

1шт.

55

D47381

GEAR - differential, side, no-spin only

2шт.

56

D47382

SPRING - differential, no-spin only

2шт.

57

D47383

RETAINER - spring, no-spin differential only

2шт.

58

D47384

CLUTCH - driven, no-spin differential only

2шт.

59

D47385

RING - holdout , no-spin differential only

2шт.

D48207

SPIDER AND CAM ASSEMBLY - differential, no-spin only, Includes: Ref. 60 - 67

1шт.

60

NSS

NOT SOLD SEPARAT

SNAP RING - differential, no-spin only

1шт.

61

NSS

NOT SOLD SEPARAT

SPIDER - differential, no-spin only

1шт.

62

NSS

NOT SOLD SEPARAT

CAM - differential, no-spin only

1шт.

L35996

TOGGLE

NO-SPIN ASSEMBLY - differential only, Includes: Ref. 63 - 67

1шт.

63

L35999

PINION

GEAR - differential, side, no-spin only

2шт.

64

L36000

VALVE SPRING

SPRING - differential, no-spin only

2шт.

65

A44688

DIFFERENTIAL

RETAINER - spring, no-spin differential only

2шт.

66

L35998

CLUTCH ASSEMBLY

CLUTCH AND HOLDOUT RING - driven, no-spin differential only

2шт.

67

L35997

TOGGLE

SPIDER AND CAM ASSEMBLY - differential , no-spin only

1шт.

A44686

SNAP RING - differential, no-spin only

1шт.

A44686

SNAP RING - differential, no-spin only

1шт.

NSS

NOT SOLD SEPARAT

SPIDER - differential, no-spin only

1шт.

NSS

NOT SOLD SEPARAT

CAM - differential, no-spin only

1шт.

Выбрано товаров: 106
