Запчасти Case 400C (144) - SYNCHROMESH TRANSMISSION, REAR AXLE DRIVE SHAFT (06) - POWER TRAIN

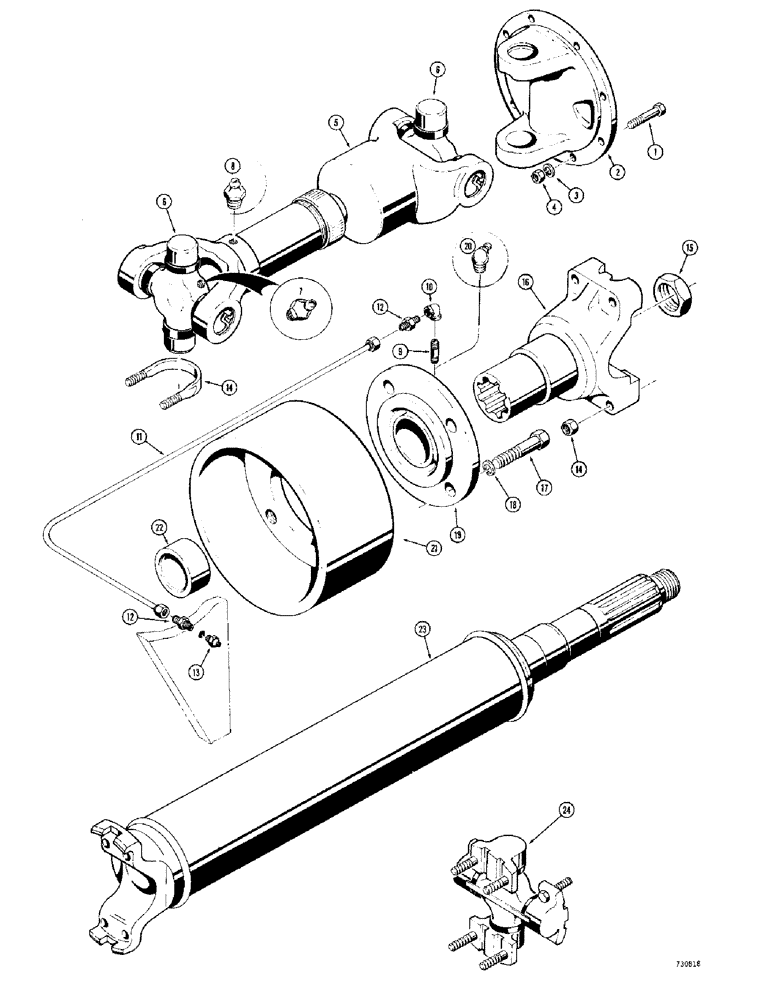

Схема запчастей Case 400C - (144) - SYNCHROMESH TRANSMISSION, REAR AXLE DRIVE SHAFT (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

D45244

SHAFT ASSY.

DRIVE SHAFT ASSEMBLY - rear, Includes: Ref. 1 - 24

1шт.

1

D45968

BOLT

- special

8шт.

2

D45969

YOKE

FLANGE - yoke, at transfer case

1шт.

3

92-6

LOCK WASHER,3/8"

8шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

8шт.

5

D45970

SHAFT ASSY.

SHAFT ASSEMBLY - drive shaft (Transfer case end), Includes: Ref. 6 - 8

1шт.

6

D45166

KIT

SPIDER AND BEARING KIT - shaft, front and intermediate

2шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 20 NF)

2шт.

8

219-27

LUBE NIPPLE,3/8" - 24

FITTING - grease, straight (3/8" - 24 NF)

1шт.

9

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - pipe, late production (1/8" NPT x 3/4")

1шт.

10

221-1374

ELBOW,90 Degree, 1/8" NPT

- pipe, late production (90 degrees - 1/8" NPT)

1шт.

11

D47595

TUBE

- bearing lubricant, late production

1шт.

12

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, straight (Late production)

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) If used

1шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

1шт.

14

D45971

BOLT

"U" BOLT - drive shaft

2шт.

15

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

16

D45972

YOKE

- driveshaft, intermediate

1шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

D45171

BEARING, BALL

BEARING - ball type

1шт.

20

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degrees (1/8" NPT) Early production

1шт.

21

D45975

MOUNTING PARTS

MOUNT - bearing

1шт.

22

D45973

SPACER

- drive shaft bearing

1шт.

23

D45974

SHAFT ASSY.

SHAFT ASSEMBLY - drive line (Axle end)

1шт.

24

D45163

U-JOINT SPIDER

SPIDER AND BEARING KIT - shaft, rear (When stock is exhausted L33945 kit will be supplied)

1шт.

24

L33945

U-JOINT SPIDER

SPIDER AND BEARING KIT - shaft, rear

1шт.

Выбрано товаров: 27
