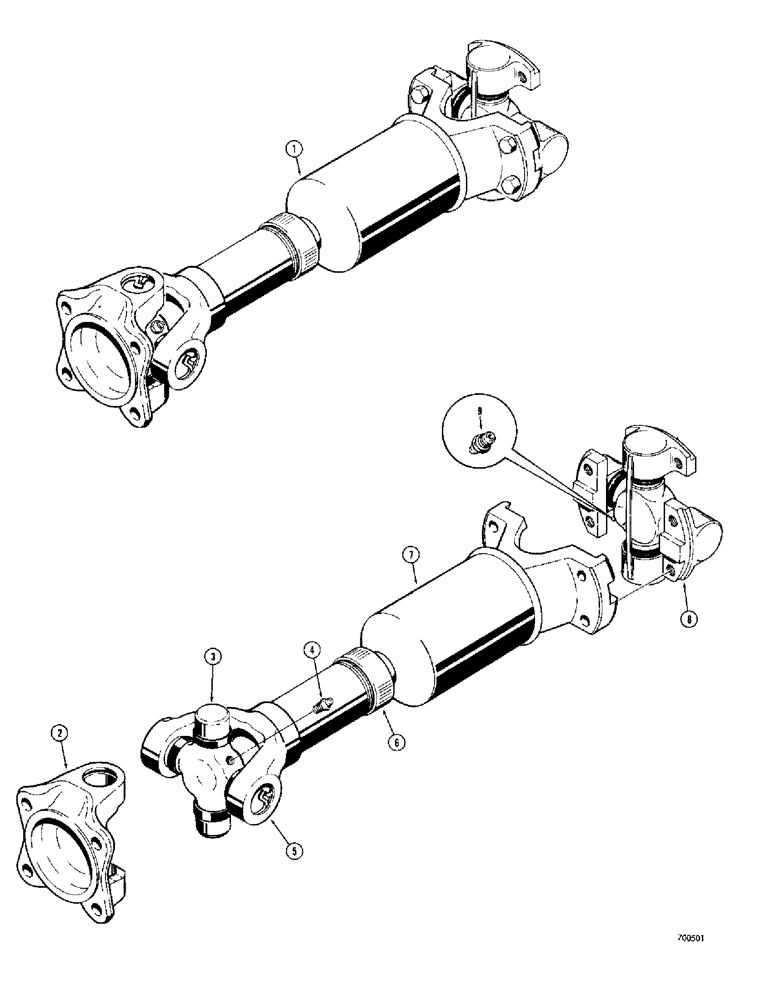

Запчасти Case 400C (142) - POWER SHIFT TRANSMISSION, FRONT AXLE DRIVE SHAFT (06) - POWER TRAIN

1

D47275

SHAFT ASSY.

DRIVE SHAFT ASSEMBLY - fron PR 75 axle, Includes: Ref. 2 - 9

1шт.

1

D51211

DRIVE SHAFT

ASSEMBLY - front PR 154 axle, Includes: Ref. 2 - 9

1шт.

2

D47591

FLANGE

- yoke, at transmission

1шт.

3

D45166

KIT

SPIDER AND BEARING ASSEMBLY - shaft, at transmission, Includes: Ref. 4

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 20 NF)

1шт.

5

D47592

HALF SHAFT

YOKE AND SLEEVE ASSEMBLY - shaft

1шт.

6

D47593

CAP

- drive shaft

1шт.

7

D47594

SHAFT

- drive (D47275 drive shaft only)

1шт.

7

D51213

SHAFT - drive (D51211 drive shaft only)

1шт.

8

D45163

U-JOINT SPIDER

SPIDER AND BEARING KIT - shaft (Axle end) (When stock is exhausted L33945 kit will be supplied)

1шт.

8

L33945

U-JOINT SPIDER

SPIDER AND BEARING KIT - shaft (Axle end), Includes: Ref. 9

1шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 20 NF)

1шт.
