Запчасти Case 400C (140) - SYNCHROMESH TRANSMISSION, FRONT AXLE DRIVE SHAFT (06) - POWER TRAIN

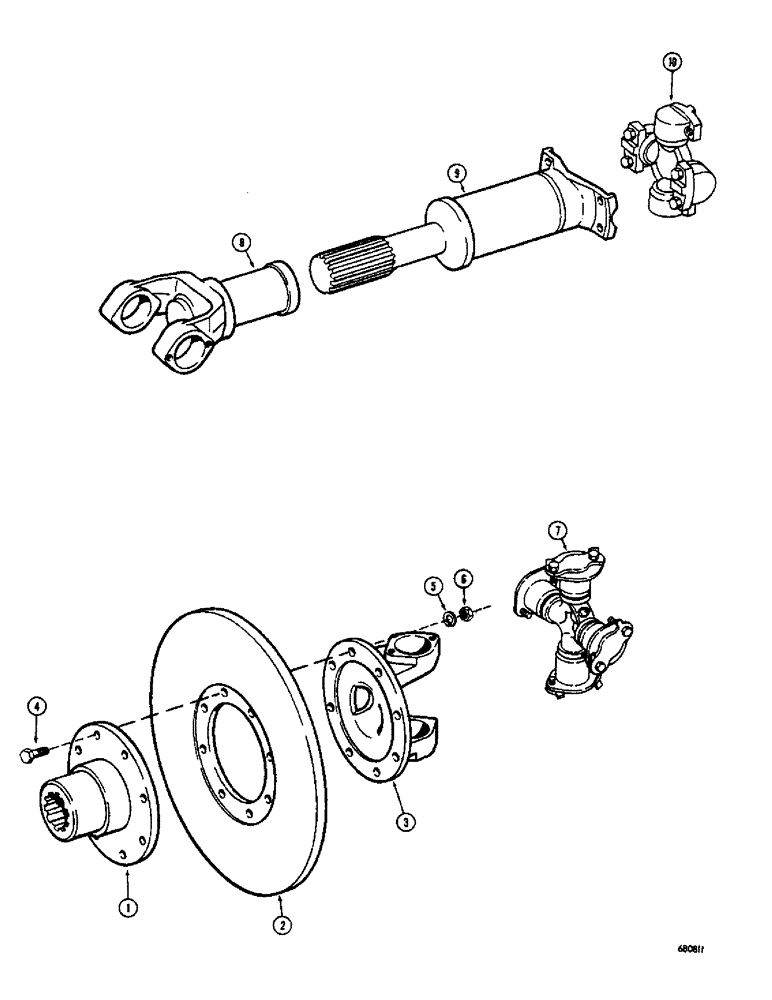

Схема запчастей Case 400C - (140) - SYNCHROMESH TRANSMISSION, FRONT AXLE DRIVE SHAFT (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

D45243

SHAFT

DRIVE SHAFT ASSEMBLY - front axle, Includes: Ref. 1 - 10

1шт.

1

D45962

FLANGE

- companion

1шт.

2

D45963

DISC

- brake

1шт.

3

D45965

YOKE

- flange

1шт.

4

D45964

BOLT

- special

8шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

8шт.

7

D45162

KIT

SPIDER AND BEARING KIT - shaft (Transfer case end)

1шт.

8

D45966

YOKE

AND SLEEVE ASSEMBLY - drive shaft

1шт.

9

D45967

SHAFT ASSY.

SHAFT ASSEMBLY - drive shaft, front

1шт.

10

D45163

U-JOINT SPIDER

SPIDER AND BEARING KIT - shaft (Axle end) (When stock is exhausted L33945 kit will be supplied)

1шт.

10

L33945

U-JOINT SPIDER

SPIDER AND BEARING KIT - shaft (Axle end)

1шт.

Выбрано товаров: 12
