Запчасти Case 400C (134) - POWER SHIFT TRANSMISSION, HYDRAULIC BRAKES, BRAKE PEDAL AND PARKING BRAKE (06) - POWER TRAIN

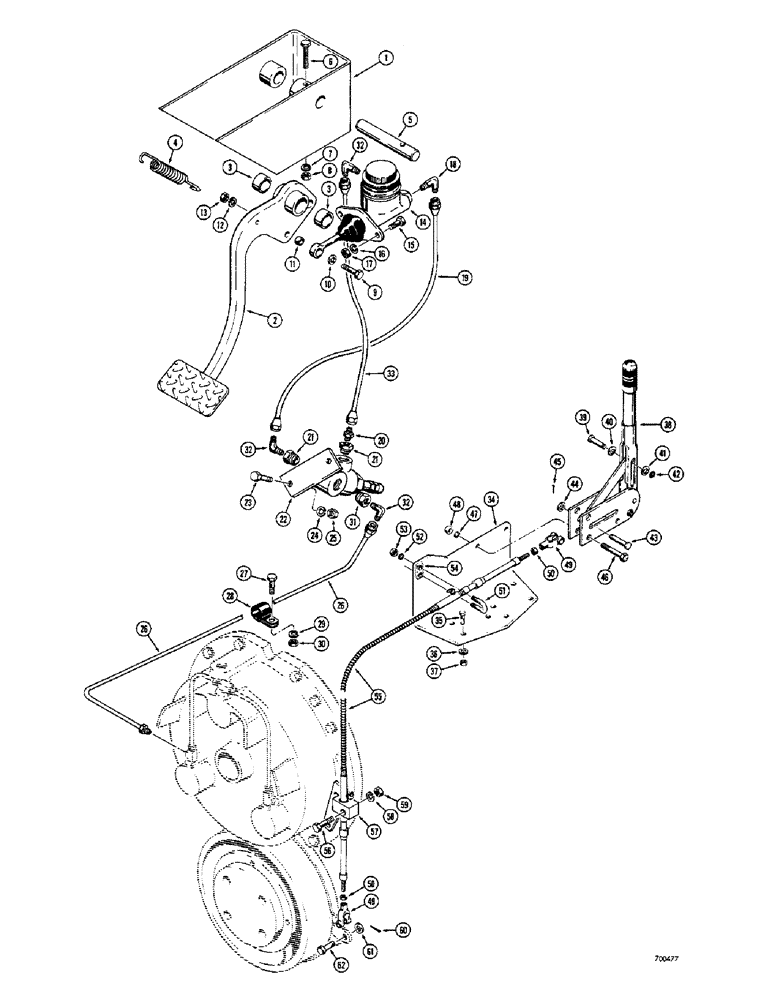

Схема запчастей Case 400C - (134) - POWER SHIFT TRANSMISSION, HYDRAULIC BRAKES, BRAKE PEDAL AND PARKING BRAKE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

D50876

HOOD - engine (See Figure 192 for related parts)

1шт.

2

D53313

PEDAL - brake control

1шт.

3

D45164

BUSHING - brake pedal

2шт.

4

D45789

SPRING - return, brake pedal

1шт.

5

D50929

SHAFT - brake pedal pivot

1шт.

6

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

1шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

25-104

NUT,1/4"-20, G5

1шт.

9

14-724

SCREW,Hex, 7/16" - 20 x 1 1/2", Gr 5

HHCS - 7/16" - 24 NF x 1-1/2"

1шт.

10

95-7

WASHER,7/16"

- plain () 7/16"

1шт.

11

D47291

ELECTRICAL WIRE

BUSHING - master cylinder push rod

1шт.

12

92-7

LOCK WASHER,7/16"

1шт.

13

25-117

NUT,7/16"-20, G5

- hex. (7/16" - 24 NF)

1шт.

14

D51206

MASTER CYLINDER - brake (Parts list Figure 138)

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

18

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

19

D51232

TUBE - master cylinder to relief valve, Serial Range: (Bend-fit)

1шт.

20

222-802

HYD CONNECTOR,7/16"-20, 45 Degree Fl x 1/8" NPT

CONNECTOR - male, straight

1шт.

21

221-54

BUSHING

- reducing (1/2" NPT x 1/8" NPT)

2шт.

22

D45165

VALVE - relief (Parts list Figure 118)

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

26

D51233

TUBE - relief valve to transmission brake

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

28

D45802

CLAMP - tube

1шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

25-104

NUT,1/4"-20, G5

1шт.

31

221-54

BUSHING

- reducing (1/2" NPT x 1/8" NPT)

1шт.

32

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male 90º, 7/16"-20, 45º Fl x 1/8" NPT

3шт.

33

D51232

TUBE - return, relief valve to master cylinder, Serial Range: (Bend-fit)

1шт.

34

D50960

BRACKET - mounting, winch control, parking brake and linkage

1шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Parking brake and linkage Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

36

92-6

LOCK WASHER,3/8"

parking brake and linkage 3/8"

4шт.

37

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), parking brake and linkage

4шт.

D45655

LEVER ASSEMBLY - parking brake and linkage, Includes: Ref. 38 - 45

1шт.

38

NSS

NOT SOLD SEPARAT

LEVER - parking brake and linkage

1шт.

39

D47260

PIN

- handle, parking brake and linkage

1шт.

40

D47261

WASHER

- special, parking brake and linkage

1шт.

41

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16"), parking brake and linkage

1шт.

42

C14652

RING

SNAP RING - pin retaining, parking brake and linkage

1шт.

43

L30975

AXLE PIN,7.82mm OD x 39.69mm L

PIN - link, parking brake and linkage

1шт.

44

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16"), parking brake and linkage

1шт.

45

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", parking brake and linkage

1шт.

46

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Parking brake and linkage Hex, 3/8"-16 x 2", G5

2шт.

47

92-6

LOCK WASHER,3/8"

parking brake and linkage 3/8"

2шт.

48

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), parking brake and linkage

2шт.

49

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - parking brake cable and linkage

2шт.

50

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF), parking brake and linkage

2шт.

D47337

"U"BOLT ASSEMBLY - parking brake cable and linkage

1шт.

51

NSS

NOT SOLD SEPARAT

"U"BOLT - parking brake cable and linkage

1шт.

52

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Parking brake and linkage 1/4"

2шт.

53

25-104

NUT,1/4"-20, G5

Parking brake and linkage 1/4"-20, G5

2шт.

54

D47336

PLATE - cable mounting "U" bolt retaining, parking brake and linkage

1шт.

55

D45858

CABLE - parking brake control and linkage

1шт.

56

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Parking brake and linkage Hex, 3/8"-16 x 1 3/4", G5

1шт.

57

D47338

BRACKET - cable mounting, parking brake and linkage

1шт.

58

92-6

LOCK WASHER,3/8"

parking brake and linkage 3/8"

1шт.

59

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), parking brake and linkage

1шт.

60

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", parking brake and linkage

1шт.

61

95-6

WASHER,3/8"

- standard wrot (), parking brake and linkage 3/8"

1шт.

62

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Parking brake and linkage 3/8" x 1.060"

1шт.

Выбрано товаров: 64
