Запчасти Case 400C (124) - POWERSHIFT TRANSMISSION, TRANSMISSION DRIVE SHAFT (06) - POWER TRAIN

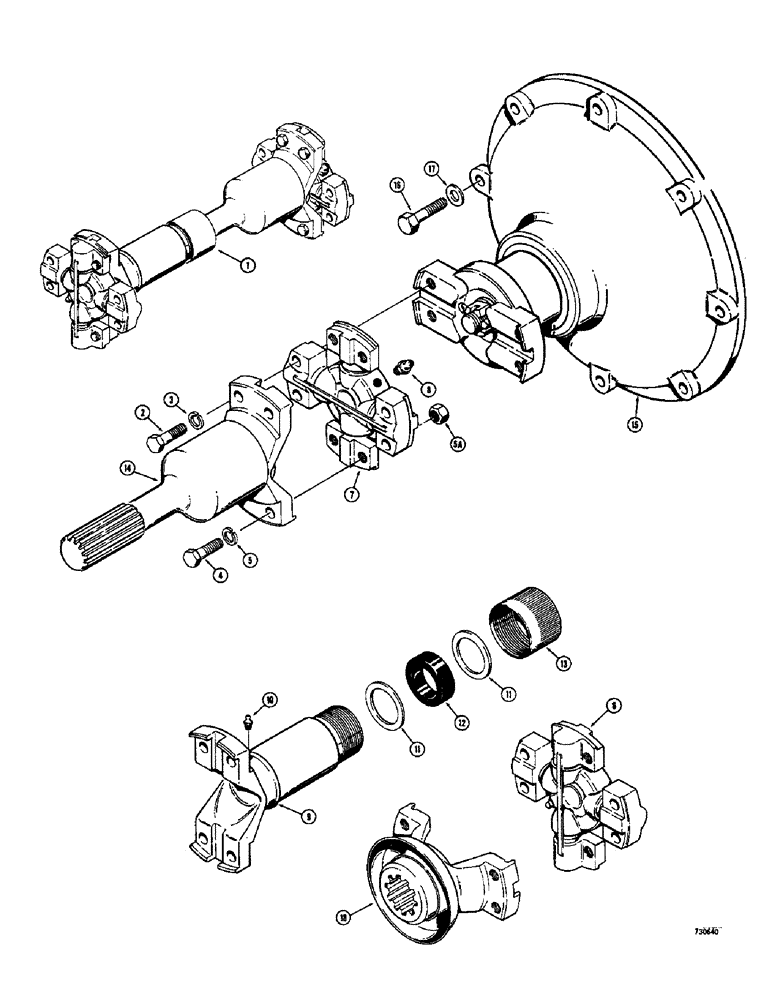

Схема запчастей Case 400C - (124) - POWERSHIFT TRANSMISSION, TRANSMISSION DRIVE SHAFT (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

L26879

SHAFT

ASSEMBLY - drive, transmission, Includes: Ref. 2 - 14

1шт.

2

L31781

BOLT

BOLT - special, spider and bearing to torsional dampener and transmission flange

8шт.

3

L32430

LOCK WASHER

- lock, special

8шт.

4

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT - special, drive shaft to spider and bearing

8шт.

5

L32430

LOCK WASHER

- lock, special

8шт.

5a

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

8шт.

6

L32423

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 7 and 8

2шт.

7

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

9

L32424

TUBE

YOKE - drive shaft, slip end

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

L32425

CAP

KIT - dust, drive shaft, Includes: Ref. 11 - 13

1шт.

11

L31779

WASHER

- felt retaining

2шт.

12

L31778

WASHER

- felt type (When stock is exhausted, order L33948 washer for service)

1шт.

12

L33948

WASHER

- felt type

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft

1шт.

14

L32429

YOKE

TUBE AND YOKE ASSEMBLY - drive shaft, transmission

1шт.

15

L53677

DAMPENER - torsional, engine to transmission drive shaft (Parts list Figure 101A)

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

17

D41740

WASHER

- special, hardened (3/8")

8шт.

18

L52643

YOKE

- drive, Serial Range: shaft-transmission

1шт.

Выбрано товаров: 21
