Запчасти Case 400C (122) - POWERSHIFT TRANSMISSION, TRANSMISSION CONTROL PARTS (06) - POWER TRAIN

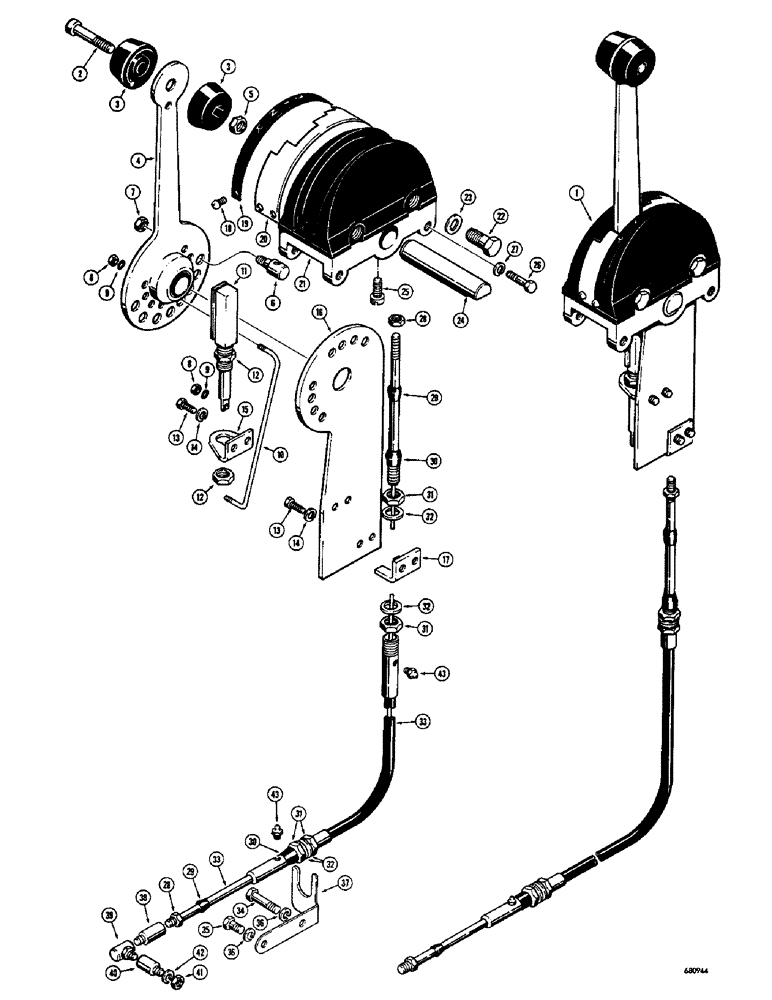

Схема запчастей Case 400C - (122) - POWERSHIFT TRANSMISSION, TRANSMISSION CONTROL PARTS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

D47327

LEVER ASSEMBLY - shift control, Includes: Ref. 2 - 25

1шт.

2

71-524

SCREW,Slotted Fil Hd, 5/16"-18 x 1 1/2"

- machine, slotted fillister head (5/16" - 18 NC x 1-1/2")

1шт.

3

D47600

KNOB

- control lever

2шт.

4

D47601

LEVER - transmission control

1шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

6

D47602

TRUNNION - lever

1шт.

7

131-3

LOCK NUT,5/16"-24, GB

NUT - hex., lock (5/16" - 24 NF)

1шт.

8

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex., lock (#10 - 32 NF)

2шт.

9

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O"RING - switch actuator rod

2шт.

10

D47611

ROD - switch actuator

1шт.

11

D47612

SWITCH

- transmission control lever (When stock is exhausted, order L33938 switch for service)

1шт.

11

L33938

SWITCH

- transmission control lever

1шт.

12

D47610

NUT - switch mounting, special

2шт.

13

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

4шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

D47609

SUPPORT - switch

1шт.

16

D47607

PLATE - hanger, transmission control

1шт.

17

D47608

SUPPORT - control cable

1шт.

18

175-94

SCREW - machine, truss head (#10 - 24 NC x 5/16")

4шт.

19

D47603

PLATE - transmission shift pattern

1шт.

20

D47604

PLATE - shift lever positioning

1шт.

21

D47605

HOUSING - shift lever

1шт.

22

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

23

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

24

D47606

SHAFT - shift lever pivot

1шт.

25

169-97

SCREW,Sl Fil Hd, #10 - 24 x 1/2"

- machine, fillister head (#10 - 24 NC x 1/2")

1шт.

26

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

D47328

CABLE ASSEMBLY - control, transmission control lever to transmission, Includes: Ref. 28 - 33

1шт.

28

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., lock (5/16" - 24 NF)

2шт.

29

D47598

SEAL - cable rod

2шт.

30

D47599

SEAL - cable sleeve

2шт.

31

25-1511

NUT - hex., lock (11/16" - 16 NF)

4шт.

32

195-545

WASHER,3/4", SAE

- plain (11/16)

4шт.

33

NSS

NOT SOLD SEPARAT

CABLE - control, transmission control, Serial Range: lever-transmission

1шт.

34

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

D47329

BRACKET - transmission control cable

1шт.

38

D47330

ADAPTER - cable

1шт.

39

D38296

JOINT

- ball type, control cable

1шт.

40

D47331

ADAPTER - ball joint

1шт.

41

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

1шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 28 NF)

2шт.

Выбрано товаров: 45
