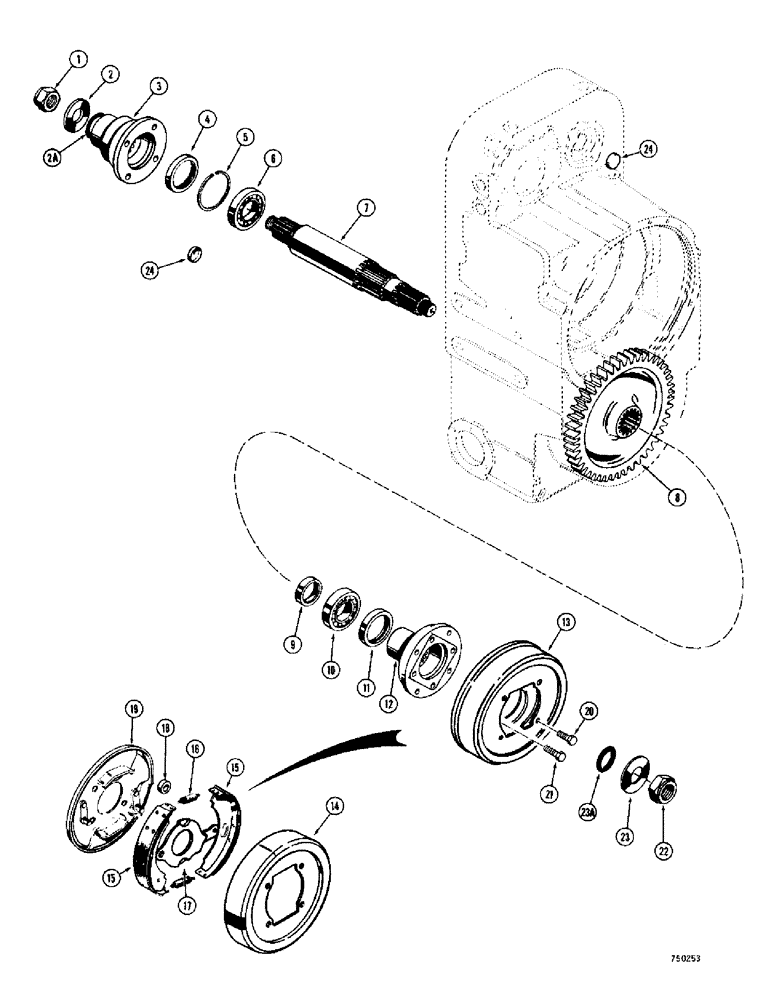

Запчасти Case 400C (114) - POWERSHIFT TRANSMISSION, AXLE OUTPUT SHAFT AND PARKING BRAKE (06) - POWER TRAIN

D50653

TRANSMISSION ASSEMBLY - power shift, complete (Used on 300 C models only), Includes: Ref. 1 - 24

1шт.

D50654

TRANSMISSION ASSEMBLY - power shift, complete (Used on 400 C models only), Includes: Ref. 1 - 24

1шт.

1

L31165

NUT

- flange washer retaining

1шт.

2

D47424

WASHER

- flange retaining (When stock is exhausted, order (1) L35974 wsher and (1) L35973 "O"ring seal for service)

1шт.

2

L35974

WASHER

- flange retaining

1шт.

2a

L35973

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

3

D47425

FLANGE

- transmission to front axle drive shaft

1шт.

4

D47485

SEAL

- oil

1шт.

5

D47486

SNAP RING

SNAP RING - internal type

1шт.

6

L31013

BALL BEARING

- ball type

1шт.

7

D47491

SHAFT

- output, main (Axle drive)

1шт.

8

D47487

GEAR

- transfer

1шт.

9

D51506

BUSHING

SPACER - bearing

1шт.

10

D47489

ROLLER BEARING

BEARING - ball type

1шт.

11

D47485

SEAL

- oil

1шт.

12

D47426

FLANGE

- transmission to rear axle drive shaft

1шт.

13

D46610

BRAKE ASSEMBLY - parking, Includes: Ref. 14 - 19

1шт.

14

D47527

DRUM

- brake

1шт.

15

D47524

BRAKE SHOE

SHOE AND LINING ASSEMBLY - brake

2шт.

Part of P/N D47501 Parking brake lining kit, available for service replacement.

1шт.

16

F18272

SPRING

- brake shoe return

2шт.

17

D47526

LEVER

- brake shoe

1шт.

18

L33579

ROLLER

- brake

1шт.

19

D47522

PLATE - backing

1шт.

20

121-212

LOCK BOLT,Lock Place, Hex, 3/8" - 24 x 5/8", Gr 8

HHCS - 3/8" - 24 NF x 5/8"

4шт.

21

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

HHCS - 1/2" - 13 NC x 7/8"

4шт.

22

L31165

NUT

- flange washer retaining

1шт.

23

D47424

WASHER

- flange retaining

1шт.

23a

L35973

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

24

L31051

PLUG

- Housing (Used in D47460 transmission housing only) See Figure 102 for proper housing

2шт.

24

L33620

PLUG

- housing (Used in L33619 and L35838 transmission housing only) See Figure 102 for proper housing

2шт.

D47501

LINING

KIT parking brake lining, available for service replacement, includes two brake linings and twenty-four, L33939 rivets, also Includes: Ref. 15

1шт.
