Запчасти Case 400C (106) - POWERSHIFT TRANSMISSION, TURBINE DRIVEN GEARS, FREEWHEEL UNIT AND TRANSMISSION MOUNT (06) - POWER TRAIN

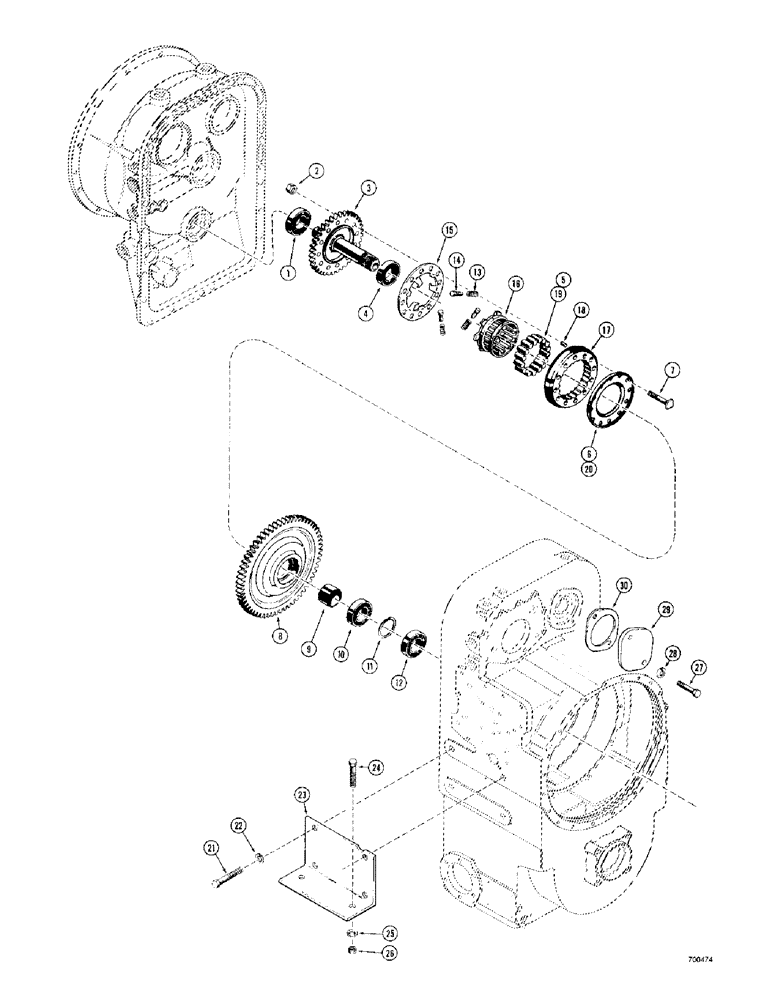

Схема запчастей Case 400C - (106) - POWERSHIFT TRANSMISSION, TURBINE DRIVEN GEARS, FREEWHEEL UNIT AND TRANSMISSION MOUNT (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

D50653

TRANSMISSION ASSEMBLY - power shift, complete (Used on 300 C models only), Includes: Ref. 1 - 20

1шт.

D50654

TRANSMISSION ASSEMBLY - power shift, complete (Used on 400 C models only), Includes: Ref. 1 - 20

1шт.

1

D47572

BEARING

- ball type

1шт.

2

L31163

SPECIAL NUT

- hex., lock (Special)

12шт.

3

D50276

GEAR AND SHAFT ASSEMBLY - driven, second turbine

1шт.

4

D47573

BALL BEARING

BEARING - ball type

1шт.

5

L31161

ROLLER

- freewheel (Also included in D47640 clutch kit)

15шт.

6

D47454

RESERVOIR

COLLECTOR PLATE - lube (Also included in D47640 overrunning clutch kit)

1шт.

7

D47455

SQUARE BOLT

- special

12шт.

8

D47456

GEAR

- driven, first turbine

1шт.

9

D48331

BUSHING

SPACER - bearing

1шт.

10

D47572

BEARING

- ball type

1шт.

11

D47458

THRUST WASHER,36.58mm ID x 41.91mm OD x 1.32mm Thk

SPACER - bearing

1шт.

12

D47572

BEARING

- ball type

1шт.

D47640

KIT

- overrunning clutch, Includes: Ref. 13 - 20

1шт.

13

D48863

SPRING

- plate

3шт.

14

D47644

PIN

- spring positioning

3шт.

15

D47645

PLATE ASSY.

PLATE - spring

1шт.

16

D47641

CAGE

- freewheel roller

1шт.

D47642

CAM

ASSEMBLY - freewheel, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

CAM - freewheel

1шт.

18

138-294

LOCK PIN,1/8" x 1/4", Slotted

Pin, , Cam 1/8" x 1/4", Slotted

1шт.

19

L31161

ROLLER

- freewheel

15шт.

20

D47454

RESERVOIR

COLLECTOR PLATE - lube

1шт.

21

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

23

D53317

MOUNT - transmission (R.H.)

1шт.

D53318

MOUNT - transmission (L.H.)

1шт.

24

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

26

25-1010

NUT,5/8"-11, G5

4шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

D47283

COVER

- pump mounting hole, transmission rear

1шт.

30

D47284

GASKET - cover

1шт.

Выбрано товаров: 35
