Запчасти Case 400C (100) - POWER SHIFT TRANSMISSION, FRONT COVER, INPUT SHAFT AND TORQUE CONVERTER (06) - POWER TRAIN

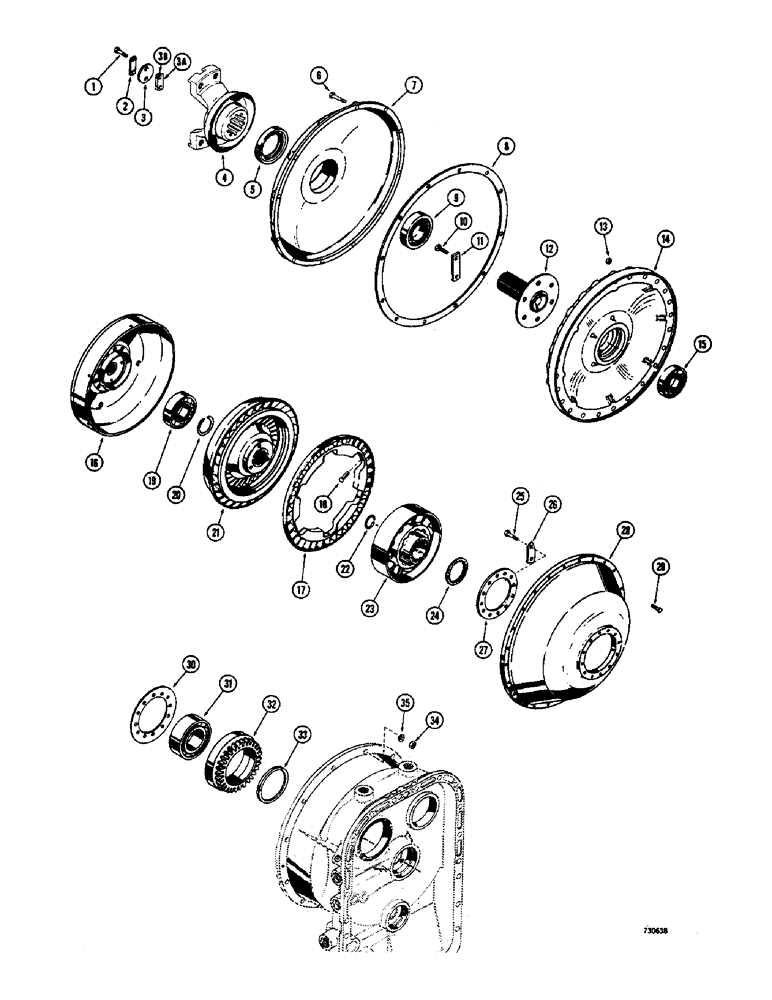

Схема запчастей Case 400C - (100) - POWER SHIFT TRANSMISSION, FRONT COVER, INPUT SHAFT AND TORQUE CONVERTER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

D50653

TRANSMISSION ASSEMBLY - power shift, complete (Used 300 C models only), Includes: Ref. 1 - 35

1шт.

D50654

TRANSMISSION ASSEMBLY - power shift, complete (Used on 400 C models only), Includes: Ref. 1 - 35

1шт.

1

121-213

BOLT,Hex, Lock, 3/8"-24 x 1 1/8"

HHCS - 3/8" - 24 NF x 1-1/8"

2шт.

2

A12736

LOCKING PLATE

PLATE - locking, washer

1шт.

3

A12717

WASHER

- flange retaining

1шт.

3a

L33824

SHIM - flange retainer (.025")

1шт.

3b

L33825

SHIM - flange retainer (.005")

1шт.

4

L52643

YOKE

FLANGE - input, transmission drive, Serial Range: shaft-transmission

1шт.

5

A12675

GASKET

SEAL - oil, input shaft

1шт.

6

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

HHCS - 3/8" - 24 NF x 2"

12шт.

7

D47427

COVER - transmission, front

1шт.

8

D47428

GASKET

- front cover

1шт.

9

D47566

BEARING

- ball type, input shaft

1шт.

10

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

6шт.

11

A12731

LOCKING PLATE

PLATE - locking, input shaft

3шт.

12

D47430

SHAFT - input

1шт.

13

131-308

LOCK

NUT - hex. (5/16" - 24 NF)

24шт.

14

D47431

COVER - torque converter

1шт.

15

L33908

BEARING

- ball type

1шт.

D46601

TURBINE

ASSEMBLY - torque converter, first, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

TURBINE HOUSING - torque converter, first

1шт.

17

NSS

NOT SOLD SEPARAT

TURBINE - torque converter, first

1шт.

18

L31076

PIN

- turbine

6шт.

19

L31015

BEARING

- ball type

1шт.

20

D47442

RING

SNAP RING - bearing retaining

1шт.

21

D47432

NO LONGER SERVICED

TURBINE ASSEMBLY - torque converter, second (When stock is exhausted, order L35837 turbine assembly for service)

1шт.

21

L35837

TURBINE

ASSEMBLY - torque converter, second

1шт.

22

D47433

RING

SNAP RING - external type

1шт.

23

D47434

STATOR

- torque converter (Used with D50653 transmission only)

1шт.

23

D50277

STATOR

- torque converter (Used with D50654 transmission only)

1шт.

24

D47435

BUSHING

SPACER - stator

1шт.

24

D47435

BUSHING

SPACER - stator

1шт.

25

121-7

BOLT (SPREADER),Hex, Lock, 1/4"-28 x 1 1/4"

HHCS - 1/4" - 28 NF x 1-1/4"

12шт.

26

D47436

PLATE, LOCKING

PLATE - locking

6шт.

27

D47437

RETAINER

- pump

1шт.

D47438

COVER

PUMP ASSEMBLY - torque converter, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

PUMP - torque converter

1шт.

29

A12695

BOLT

- special

24шт.

30

D48208

GASKET

- pump

1шт.

31

D47531

BALL BEARING,55mm ID x 100mm OD x 33.34mm W

BEARING - ball type

1шт.

32

L32398

X

GEAR - drive (When stock is exhausted, order L35399 gear for service)

1шт.

32

L35399

GEAR

- drive

1шт.

33

D47441

SEAL

- ring type, converter housing sleeve

1шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

12шт.

35

92-6

LOCK WASHER,3/8"

12шт.

Выбрано товаров: 45
