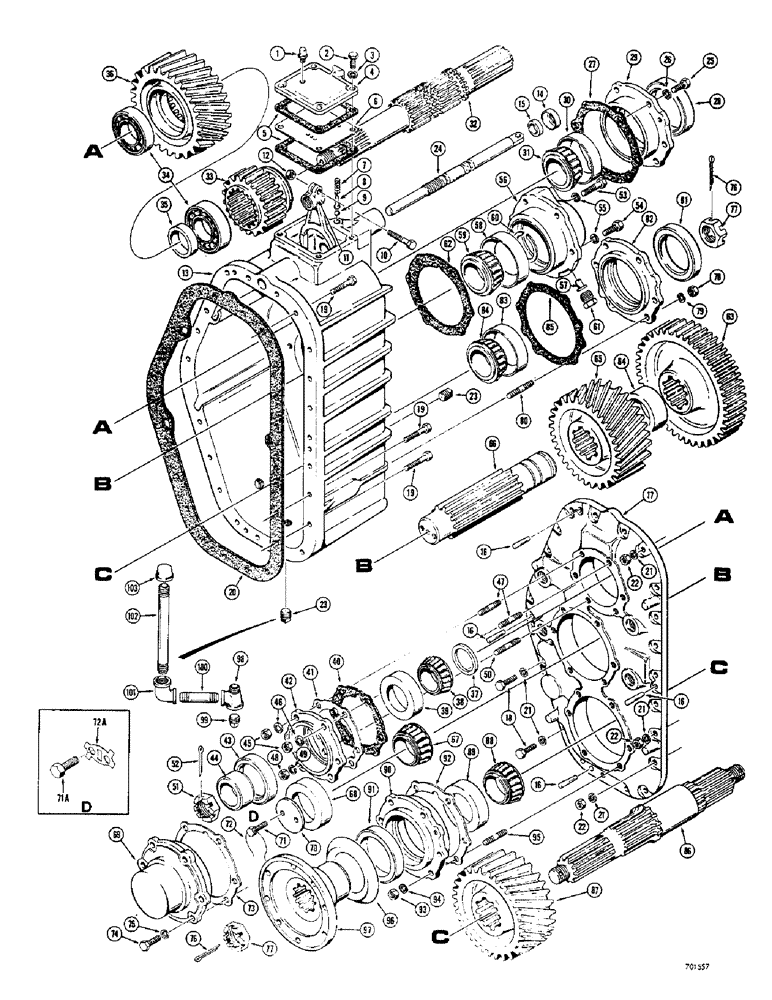

Запчасти Case 400C (090) - SYNCHROMESH TRANSMISSION, TRANSFER CASE (06) - POWER TRAIN

D48293

TRANSFER CASE ASSEMBLY - transmission to drive shafts, Includes: Ref. 1 - 43

1шт.

1

T25082

BREATHER - transfer case

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

D46720

COVER - gear shift

1шт.

5

D46722

GASKET - shift cover

2шт.

6

D46721

PLATE - breather, shift cover

1шт.

7

D46718

SPRING - shift detent

1шт.

8

D46719

PLUNGER - shift detent

1шт.

9

211-7

BALL,1/4" Dia

- shift detent, Includes Ref 10 - 18 1/4" Dia

1шт.

10

114-239

X

HHCS - 3/8" - 24 NF x 1-3/4"

1шт.

11

D46723

FORK - range shift (High, neutral or low)

1шт.

12

131-1232

BOLT (MACHINE)

NUT- 3/8" - 24 NF clamp bolt

1шт.

D46704

CASE ASSEMBLY - transfer, Includes: Ref. 13 - 18

1шт.

13

NSS

NOT SOLD SEPARAT

CASE - transfer

1шт.

14

D46754

RETAINER

- shifter shaft packing

1шт.

15

D46753

PACKING

- shifter shaft

1шт.

16

139-107

PIN - taper, #7 x 1-1/2"

4шт.

17

NSS

NOT SOLD SEPARAT

COVER - transfer case, rear

1шт.

18

113-245

X

HHCS - 3/8" - 16 NC x 1"

2шт.

19

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

HHCS - 3/8" - 24 NF x 2"

21шт.

20

D46744

GASKET -, Serial Range: case-cover

1шт.

21

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

23шт.

22

129-524

NUT,3/8"-24, G8

21шт.

23

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - drain, square head (3/4" NPT)

2шт.

24

D46716

SHAFT - gear shift (High, neutral or low)

1шт.

25

113-307

X

HHCS - 7/16" - 14 NC x 1-1/8"

6шт.

26

92-7

LOCK WASHER,7/16"

6шт.

27

D46711

GASKET - mainshaft cover, front

1шт.

D46706

COVER ASSEMBLY - mainshaft, front, Includes: Ref. 28 - 43

1шт.

28

D46757

SEAL - oil

1шт.

29

NSS

NOT SOLD SEPARAT

COVER - mainshaft, front

1шт.

30

A7876

GASKET

CUP - bearing, tapered roller type

1шт.

31

D48115

CONE - bearing, tapered roller type

1шт.

32

D46736

MAINSHAFT - transfer case

1шт.

33

D48294

GEAR - sliding

1шт.

34

F18136

BEARING

- drive gear, ball type

2шт.

35

D46726

SPACER - bearing

1шт.

36

48295

SUPPORT

GEAR - drive

1шт.

37

D46750

SPACER - rear bearing, mainshaft

1шт.

38

A20301

CUP

CONE - bearing, tapered roller type

1шт.

39

F60825

CUP - bearing, tapered roller type

1шт.

40

D46731

GASKET - mainshaft cover, rear

1шт.

41

D46727

SHIM - mainshaft, .003" thick

1шт.

41

D46728

SHIM - mainshaft, .005" thick

1шт.

41

D46729

SHIM - mainshaft, .010" thick

1шт.

41

D46730

SHIM - mainshaft, .020" thick

1шт.

42

D46732

COVER - mainshaft, rear

1шт.

43

D46733

SEAL - mainshift, rear

1шт.

44

D46737

SLEEVE - mainshaft, rear

1шт.

45

129-530

NUT,7/16"-20, G8

2шт.

46

193-86

LOCK WASHER,7/16"

WASHER - lock, internal Shakeproof () 7/16"

2шт.

47

D46751

STUD - mainshaft cover mounting, rear (Upper two)

2шт.

52

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

48

129-530

NUT,7/16"-20, G8

4шт.

49

92-7

LOCK WASHER,7/16"

4шт.

50

D46766

STUD - mainshaft cover mounting, rear (Center and lower two)

4шт.

51

F19657

NUT

- hex., slotted (1-1/4" - 18 NF)

1шт.

53

113-325

HHCS - 7/16" - 14 NC x 2-1/4"

2шт.

54

113-307

X

HHCS - 7/16" - 14 NC x 1-1/8"

3шт.

55

92-7

LOCK WASHER,7/16"

5шт.

D46705

COVER ASSEMBLY - idler shaft, front, Includes: Ref. 56 - 58

1шт.

56

NSS

NOT SOLD SEPARAT

COVER - idler shaft, front

1шт.

57

D46755

BUSHING - speedometer drive

1шт.

58

F60825

CUP - bearing, tapered roller type

1шт.

59

A10001

ROLLER BEARING,2.0625" ID x 1.193"

CONE - bearing, tapered roller type

1шт.

60

D46713

SNAP RING - idler shaft, front

1шт.

61

D46714

PLUG - speedometer driven gear hole

1шт.

62

D46711

GASKET - idler shaft cover, front

1шт.

63

D48296

GEAR - low, idler shaft

1шт.

64

D46747

SPACER - low and high gear

1шт.

65

D46746

GEAR - high, idler shaft

1шт.

66

D46712

IDLER SHAFT - transfer case

1шт.

67

D48115

CONE - bearing, tapered roller type

1шт.

D46709

COVER ASSEMBLY - idler shaft, rear, Includes: Ref. 68 and 69

1шт.

68

A7876

GASKET

CUP - bearing, tapered roller type

1шт.

69

NSS

NOT SOLD SEPARAT

COVER - idler shaft, rear

1шт.

70

D46738

LOCK PLATE - idler shaft

1шт.

71

D46760

BOLT

- special, drilled head (When stock is exhausted, order 2 - 113-313 bolts and 1 - D52314 plate for service)

2шт.

71a

113-313

BOLT - special, solid head

2шт.

72

391-613

WIRE

LOCK WIRE - #16 - 4" long (Used with D46760 bolts)

1шт.

72a

D52314

PLATE

LOCK PLATE - used with 113-313 bolts

1шт.

73

D46739

SHIM - idler shaft, .003" thick

1шт.

73

D46740

SHIM - idler shaft, .005" thick

1шт.

73

D46741

SHIM - idler shaft, .010" thick

1шт.

73

D46742

SHIM - idler shaft, .020" thick

1шт.

74

113-307

X

HHCS - 7/16" - 14 NC x 1-1/8"

6шт.

75

92-7

LOCK WASHER,7/16"

6шт.

77

D46765

LOCK NUT

NUT - hex., slotted (1-1/4" - 18 NF)

2шт.

78

129-530

NUT,7/16"-20, G8

6шт.

79

92-7

LOCK WASHER,7/16"

6шт.

80

D46766

STUD - axle drive shaft cover mounting, front

6шт.

D46708

COVER ASSEMBLY - axle drive shaft, front, Includes: Ref. 81 - 83

1шт.

81

D46757

SEAL - oil

1шт.

82

NSS

NOT SOLD SEPARAT

COVER - axle drive shaft, front

1шт.

83

A12946

BEARING CUP

CUP - bearing, tapered roller type

1шт.

84

D46749

CONE - bearing, tapered roller type

1шт.

76

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.

85

D46711

GASKET - axle drive shaft cover, front

1шт.

86

D46743

SHAFT - axle drive

1шт.

87

D46745

GEAR - axle drive shaft, driven

1шт.

88

D48115

CONE - bearing, tapered roller type

1шт.

D46707

COVER ASSEMBLY - axle drive shaft, rear, Includes: Ref. 89 - 91

1шт.

89

A7876

GASKET

CUP - bearing, tapered roller type

1шт.

90

NSS

NOT SOLD SEPARAT

COVER - axle drive shaft, rear

1шт.

91

D46757

SEAL - oil

1шт.

92

D46739

SHIM - axle drive shaft, .003" thick

1шт.

92

D46740

SHIM - axle drive shaft, .005" thick

1шт.

92

D46741

SHIM - axle drive shaft, .010" thick

1шт.

92

D46742

SHIM - axle drive shaft, .020" thick

1шт.

93

129-530

NUT,7/16"-20, G8

6шт.

94

92-7

LOCK WASHER,7/16"

6шт.

95

D46766

STUD - axle drive shaft cover mounting, rear

6шт.

D46710

FLANGE ASSEMBLY - axle drive shaft, rear, Includes: Ref. 96 and 97

1шт.

96

D46759

DEFLECTOR - dirt

1шт.

97

NSS

NOT SOLD SEPARAT

FLANGE - axle drive shaft, rear

1шт.

98

221-694

TEE - pipe, service (3/4" NPT)

1шт.

99

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - drain, square socket head (3/4" NPT)

1шт.

100

221-219

PLUG

NIPPLE - pipe (3/4" NPT x 4" NPT)

1шт.

101

221-378

ELBOW,90 Degree, 3/4" NPT

- female, pipe (90 degrees) 3/4" NPT

1шт.

102

221-227

NIPPLE - pipe (3/4" NPT x 8")

1шт.

103

221-526

CAP

- pipe (3/4" NPT)

1шт.
