Запчасти Case 400C (088) - SYNCHROMESH TRANSMISSION, CLUTCH (06) - POWER TRAIN

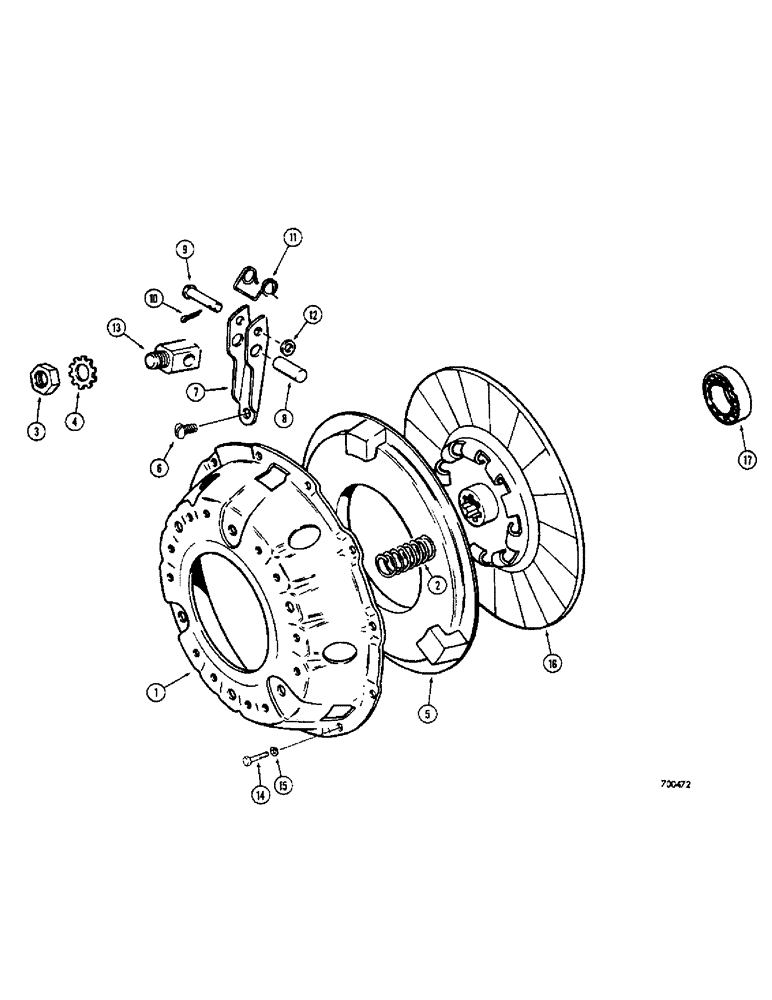

Схема запчастей Case 400C - (088) - SYNCHROMESH TRANSMISSION, CLUTCH (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

D50648

CLUTCH ASSEMBLY - transmission, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - clutch

1шт.

2

D46302

SPRING - clutch

15шт.

3

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18 NF)

3шт.

4

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

3шт.

D50867

PLATE ASSEMBLY - clutch pressure, Includes: Ref. 5 - 13

1шт.

5

A42158

PLATE

- clutch pressure

1шт.

A42210

KIT

LEVER ASSEMBLY - clutch, Includes: Ref. 6 and 7

3шт.

6

A42209

SCREW - lever, special

1шт.

7

NSS

NOT SOLD SEPARAT

LEVER - clutch

1шт.

8

D46306

PIN - lever pivot

3шт.

9

D46307

PIN - clevis

3шт.

10

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

11

A25120

SPRING

- lever

3шт.

12

195-25

WASHER,3/8"

- plain () 3/8"

3шт.

13

D46305

BLOCK - lever

3шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

15

92-6

LOCK WASHER,3/8"

12шт.

16

D48305

DISC - clutch

1шт.

17

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING - fly wheel

1шт.

Выбрано товаров: 20
