Запчасти Case 400C (080) - SYNCHROMESH TRANSMISSION, GEARS AND SHAFTS, REVERSE BOX (06) - POWER TRAIN

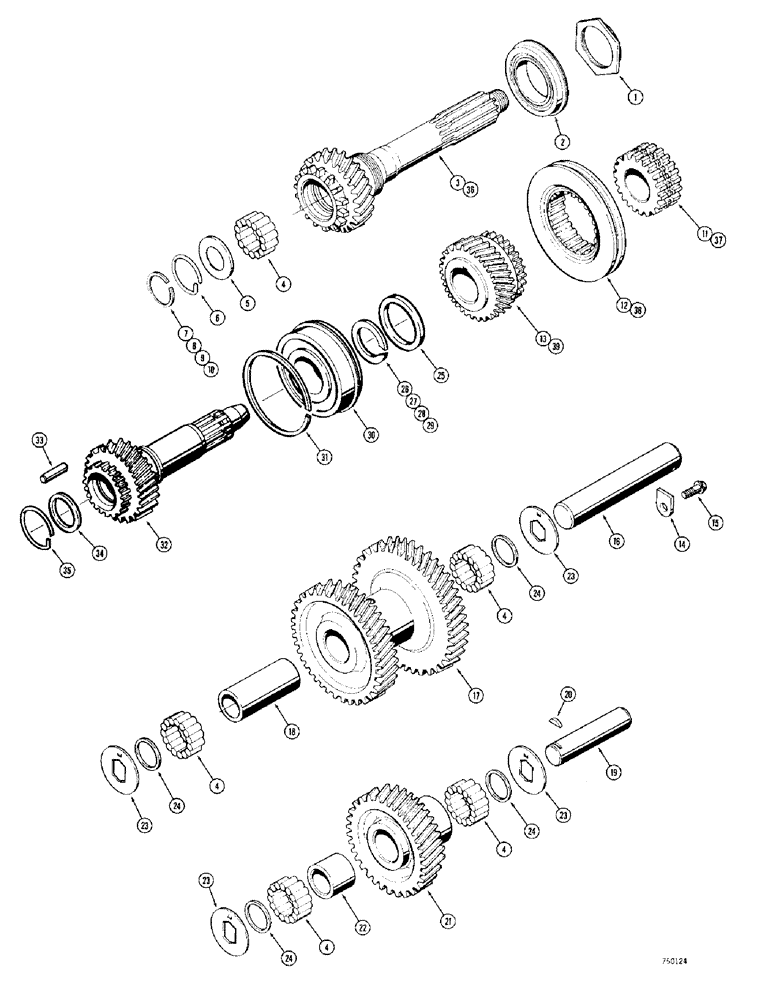

Схема запчастей Case 400C - (080) - SYNCHROMESH TRANSMISSION, GEARS AND SHAFTS, REVERSE BOX (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

D50652

TRANSMISSION ASSEMBLY - synchromesh, complete, Includes: Ref. 1 - 35

1шт.

D52468

REVERSE BOX ASSEMBLY - transmission, also includes items 1-20 on Figure 78), Includes: Ref. 1 - 35

1шт.

1

D48387

NUT

- drive gear bearing retaining

1шт.

2

D48833

BEARING

- drive gear

1шт.

3

D48388

GEAR

- reverse box drive (When stock is exhausted, complete new D66317 service kit will be supplied consisting of four gears, not interchangeable with old)

1шт.

Old gears are stamped 97579 on stem portion of drive gear. New gears are stamped 11189. New process D66317 service kit parts are not interchangeable with old gears. References 3, 11, 12 and 13 will be supplied until exhausted, then a complete kit of all four new parts are required. For complete transmission see Figures 76 thru 86

1шт.

4

D48828

NEEDLE - bearing, 14 req'd per gear end

70шт.

5

D48389

WASHER - needle retaining

1шт.

6

D48390

SNAP RING - needle retaining washer

1шт.

7

D48391

SNAP RING - clutch gear (.086" - .088" thick)

1шт.

8

D48392

SNAP RING - clutch gear (.089" - .091" thick)

1шт.

9

D48393

SNAP RING - clutch gear (.092" - .094" thick)

1шт.

10

D48394

SNAP RING - clutch gear (.095" - .097" thick)

1шт.

11

D48395

GEAR

- clutch (When stock is exhausted, complete D66317 kit is required)

1шт.

Old gears are stamped 97579 on stem portion of drive gear. New gears are stamped 11189. New process D66317 service kit parts are not interchangeable with old gears. References 3, 11, 12 and 13 will be supplied until exhausted, then a complete kit of all four new parts are required. For complete transmission see Figures 76 thru 86

1шт.

12

D48396

GEAR

- sliding clutch (When stock is exhausted, complete D66317 kit is required)

1шт.

Old gears are stamped 97579 on stem portion of drive gear. New gears are stamped 11189. New process D66317 service kit parts are not interchangeable with old gears. References 3, 11, 12 and 13 will be supplied until exhausted, then a complete kit of all four new parts are required. For complete transmission see Figures 76 thru 86

1шт.

13

D48397

GEAR

- reverse output (When stock is exhausted, complete D66317 kit is required)

1шт.

Old gears are stamped 97579 on stem portion of drive gear. New gears are stamped 11189. New process D66317 service kit parts are not interchangeable with old gears. References 3, 11, 12 and 13 will be supplied until exhausted, then a complete kit of all four new parts are required. For complete transmission see Figures 76 thru 86

1шт.

14

D48398

LOCK

- countershaft

1шт.

15

193-531

SCREW AND LOCKWASHER - lock (3/8" - 16 NC x 5/8")

1шт.

16

D48399

COUNTERSHAFT - reverse box

1шт.

17

D48400

GEAR - cluster

1шт.

18

D48401

SPACER - cluster

1шт.

19

D48402

SHAFT - reverse idler

1шт.

20

D48827

KEY - shaft

1шт.

21

D48403

GEAR - reverse idler

1шт.

22

D48404

SPACER - reverse idler gear

1шт.

23

D48405

WASHER - thrust

4шт.

24

D48406

WASHER - needle retaining

4шт.

25

D48410

SPACER - thrust

1шт.

26

D48756

SNAP RING - bearing retaining (.087" - .089" thick)

1шт.

Aso included with D52469 Gear Box Assembly. See Figure 82.

1шт.

27

D48757

SNAP RING - bearing retaining (.090" - .092" thick)

1шт.

Aso included with D52469 Gear Box Assembly. See Figure 82.

1шт.

28

D48758

SNAP RING - bearing retaining (.093" - .095" thick)

1шт.

Aso included with D52469 Gear Box Assembly. See Figure 82.

1шт.

29

D48759

SNAP RING - bearing retaining (.096" - .098" thick)

1шт.

Aso included with D52469 Gear Box Assembly. See Figure 82.

1шт.

30

D48834

BEARING ASSY,1.7717" ID x 3.937" OD x 0.9843"

BEARING - input drive gear

1шт.

Aso included with D52469 Gear Box Assembly. See Figure 82.

1шт.

31

D48760

SPACER - bearing

1шт.

Aso included with D52469 Gear Box Assembly. See Figure 82.

1шт.

32

D48761

GEAR - input drive (When stock is exhausted, order D51459 gear for service)

1шт.

Aso included with D52469 Gear Box Assembly. See Figure 82.

1шт.

32

D51479

GEAR - input drive

1шт.

Aso included with D52469 Gear Box Assembly. See Figure 82.

1шт.

33

D48828

NEEDLE - bearing, drive gear

14шт.

Aso included with D52469 Gear Box Assembly. See Figure 82.

1шт.

34

D48389

WASHER - needle retaining

1шт.

Aso included with D52469 Gear Box Assembly. See Figure 82.

1шт.

35

D48390

SNAP RING - washer

1шт.

Aso included with D52469 Gear Box Assembly. See Figure 82.

1шт.

D66317

GEAR

KIT - service for gear and clutch, Includes: Ref. 36 - 39

1шт.

Old gears are stamped 97579 on stem portion of drive gear. New gears are stamped 11189. New process D66317 service kit parts are not interchangeable with old gears. References 3, 11, 12 and 13 will be supplied until exhausted, then a complete kit of all four new parts are required. For complete transmission see Figures 76 thru 86

1шт.

36

D66322

GEAR WHEEL

GEAR - main drive

1шт.

37

D66323

GEAR WHEEL

GEAR - clutch

1шт.

38

D66320

CLUTCH ASSEMBLY

CLUTCH - sliding

1шт.

39

D66321

GEAR WHEEL

GEAR - reverse output

1шт.

Выбрано товаров: 59
