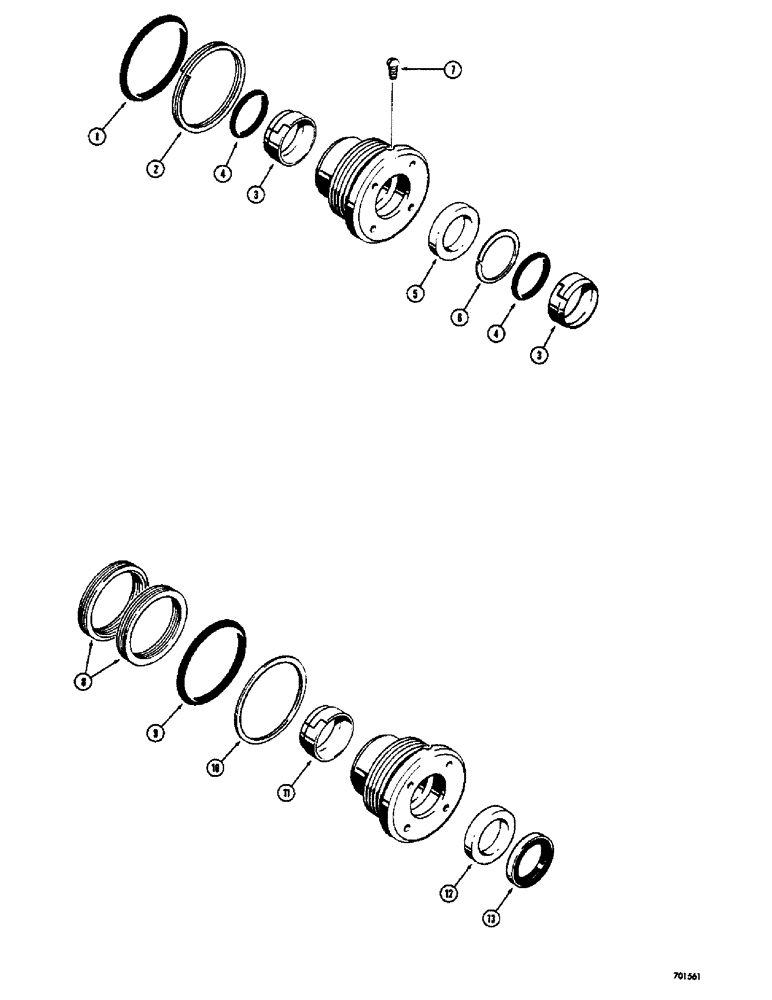

Запчасти Case 400C (169A) - CYLINDER PACKING KITS, USED IN STEERING CYLINDER WITH 3-1/2 INCH I.D. TUBE AND 2 INCH DIAMETER ROD (05) - STEERING

D42874

PACKING GLAND

KIT - gland packing, Includes: Ref. 1 - 7

1шт.

1

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

2

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

3

D27380

SCRAPER RING

WIPER - rod

2шт.

4

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

5

D36971

RING

SEAL - rod

1шт.

6

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

G32293

SEAL

KIT - cylinder packing, G32293, Includes: Ref. 8 - 13

1шт.

8

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, chevron, G32293 CYLINDER KIT

2шт.

9

G15458

STUD

SEAL - "O" ring, gland, G32293 CYLINDER PACKING KIT

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland seal, G32293 CYLINDER PACKING KIT

1шт.

11

D27380

SCRAPER RING

WIPER - rod, inner, G32293 CYLINDER PACKING KIT

1шт.

12

D36971

RING

SEAL - rod, G32293 CYLINDER PACKING KIT

1шт.

13

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod, outer, G32293 CYLINDER PACKING KIT

1шт.
