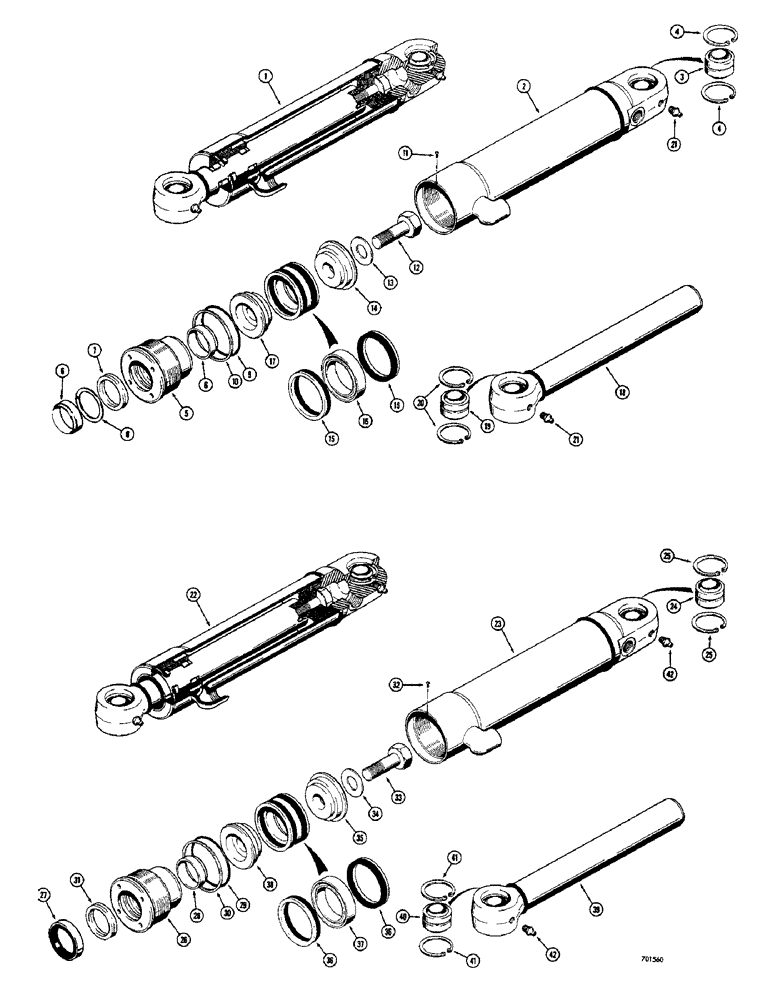

Запчасти Case 400C (168) - STEERING CYLINDERS, D49566 AND D49567 STEERING CYLINDERS WITH FLAT SNAP-IN TYPE OUTER ROD WIPER (05) - STEERING

1

D49567

CYLINDER ASSY.

CYLINDER - steering, R.H. (3-1/2" I.D. x 10" stroke) When stock is exhausted, order G32125 cyl. for service, Includes: Ref. 2 - 21

1шт.

These cylinders use D42874 packing kit. See figure 169A.

1шт.

1

G32125

CYLINDER

- steering (Listed below), Includes: Ref. 2 - 21

1шт.

These cylinders use D42874 packing kit. See figure 169A.

1шт.

1

D49566

CYLINDER ASSY.

CYLINDER - steering, L.H. (3-1/2" I.D. x 10" stroke) When stock is exhausted, order G32124 cyl. for service, Includes: Ref. 2 - 21

1шт.

These cylinders use D42874 packing kit. See figure 169A.

1шт.

1

G32124

CYLINDER ASSY.

CYLINDER - steering (Listed below), Includes: Ref. 2 - 21

1шт.

These cylinders use D42874 packing kit. See figure 169A.

1шт.

2

D49569

TUBE - cylinder, R.H.

1шт.

2

D49568

TUBE - cylinder, L.H., Includes: Ref. 3 and 4

1шт.

3

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - pivotal

1шт.

4

D28436

SNAP RING,2", Int, #200

Ring, Snap, , bushing 2", Int, #200

2шт.

5

D45070

GLAND

- packing (When stock is exhausted, order G32736 Gland Assembly for service - see item 26 below)

1шт.

6

D27380

SCRAPER RING

WIPER - piston rod

2шт.

7

D36971

RING

SEAL - piston rod

1шт.

8

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland to tube

1шт.

10

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping (#8 - 32 NC x 1/2")

1шт.

12

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Special Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

13

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

1шт.

14

D28367

PISTON

- split, bolt end half

1шт.

15

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, chevron

2шт.

16

D47208

RING

- packing, piston

1шт.

17

D28368

PISTON

- split, rod end

1шт.

18

D49573

ROD - piston (2" dia.), Includes: Ref. 19 and 20

1шт.

19

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - pivotal

1шт.

20

D28436

SNAP RING,2", Int, #200

Ring, Snap, , bushing 2", Int, #200

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

22

G32125

CYLINDER

- steering, R.H. (3-1/2" I.D. x 10" stroke), G32124 AND G32125 WITH U-TYPE PRESS-IN OUTER ROD WIPER, Includes: Ref. 23 - 42

1шт.

These cylinders use G32293 packing kit. See figure 169A.

1шт.

22

G32124

CYLINDER ASSY.

CYLINDER - steering, L.H. (3-1/2" I.D. x 10" stroke), G32124 AND G32125 WITH U-TYPE PRESS-IN OUTER ROD WIPER, Includes: Ref. 23 - 42

1шт.

These cylinders use G32293 packing kit. See figure 169A.

1шт.

23

D49569

TUBE - cylinder, R.H., G32124 AND G32125 STEERING WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

23

D49568

TUBE - cylinder, L.H., G32124 AND G32125 STEERING WITH U-TYPE PRESS-IN OUTER ROD WIPER, Includes: Ref. 24 and 25

1шт.

24

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - pivotal, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

25

D28436

SNAP RING,2", Int, #200

Ring, Snap, , bushing, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER 2", Int, #200

1шт.

G32736

GLAND

ASSEMBLY - packing, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER, Includes: Ref. 26 - 31

1шт.

26

NSS

NOT SOLD SEPARAT

GLAND - packing, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

27

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod, outer, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD

1шт.

28

D27380

SCRAPER RING

WIPER - rod, inner, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD

1шт.

29

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

30

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland seal, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

31

D36971

RING

SEAL - piston rod, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

32

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping (#8 - 32 NC x 1/2"), G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

33

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Special, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

34

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

35

D28367

PISTON

- split, bolt end half, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

36

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, chevron, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER

2шт.

37

D47208

RING

- packing, piston, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

38

D28368

PISTON

- split, rod end half, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER WIPER

1шт.

39

D49573

ROD - piston (2" dia.), G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER WIPER, Includes: Ref. 40 and 41

1шт.

40

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - pivotal, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER

1шт.

41

D28436

SNAP RING,2", Int, #200

Ring, Snap, , bushing, G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER 2", Int, #200

2шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), G32124 AND G32125 STEERING CYLINDER WITH U-TYPE PRESS-IN OUTER ROD WIPER

2шт.
