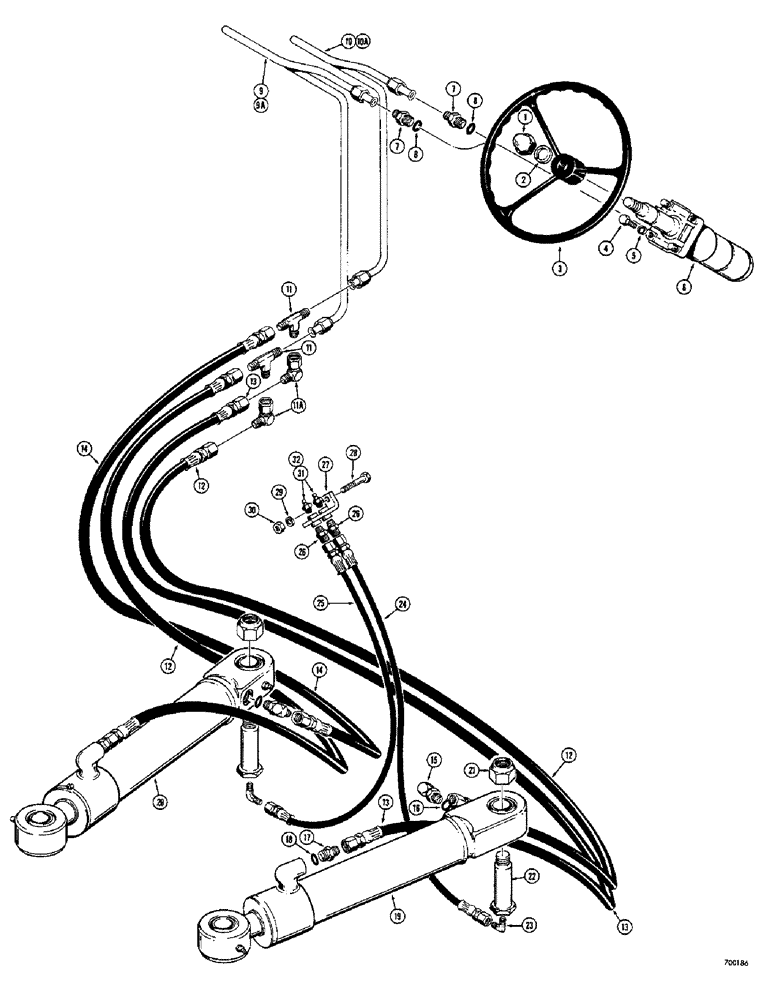

Запчасти Case 400C (166) - STEERING WHEEL AND STEERING HYDRAULICS (05) - STEERING

1

A8744

NUT

- acorn, special

1шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

D45692

WHEEL - steering

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

D50872

PUMP ASSEMBLY - steering, manual (Parts list Figure 164)

1шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., male, straight (1/2" JIC x 5/8" JIC), Incl. Ref. 8

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5066 connector

1шт.

9

D51452

TUBE - from upper port (Synchromesh models only)

1шт.

9a

D51490

TUBE - form upper port (Power Shift models only)

1шт.

10

D51453

TUBE - from lower port (Synchromesh models only)

1шт.

10a

D51491

TUBE - from upper port (Synchromesh models only)

1шт.

11

218-595

TEE,7/8"-14, 37 Degree

- tube (5/8" JIC)

2шт.

11a

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- swivel, 90 degrees (5/8" JIC) Synchromesh models only

2шт.

12

D51454

PLUG

HOSE - R.H. steering cylinder closed end and L.H. cylinder rod end (51" long)

2шт.

13

D51455

HOSE - R.H. steering cylinder, rod end (63" long)

1шт.

14

D33344

HOSE

- L.H. steering cylinder, closed end (37-1/2" long)

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (5/8" JIC) closed end

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5107 elbow

1шт.

17

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight (5/8" JIC) Rod end, Includes: Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5062 connector

1шт.

19

REF

INSTRUCTION

CYLINDER - steering, R.H. (Parts list Figure 168)

1шт.

20

REF

INSTRUCTION

CYLINDER - steering, L.H. (Parts list Figure 168)

1шт.

21

131-39

NUT,1"-14

NUT - hex., lock (1" - 14 NF)

2шт.

22

D50260

PIN

- steering cylinder mounting, front (With internal grease channel) use D53301 "solid type" mounting pin and run grease line to grease location on cylinder tube eye

2шт.

22

D53301

PIN

- steering cylinder mounting, front (Solid type)

2шт.

23

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degrees (1/8" NPT x 1/4" JIC)

2шт.

24

D47335

HOSE - to steering cylinder pin, R.H. (32" long)

1шт.

25

D47334

HOSE - to steering cylinder pin, L.H. (26" long)

1шт.

26

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, straight (1/4" JIC x 1/8" NPT)

2шт.

27

D47333

BRACKET - hose mounting, at transmission housing

1шт.

28

14-636

SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5

HHCS - 3/8" - 24 NF x 2-1/4"

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

1шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) If used

2шт.

32

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT) If used

2шт.
