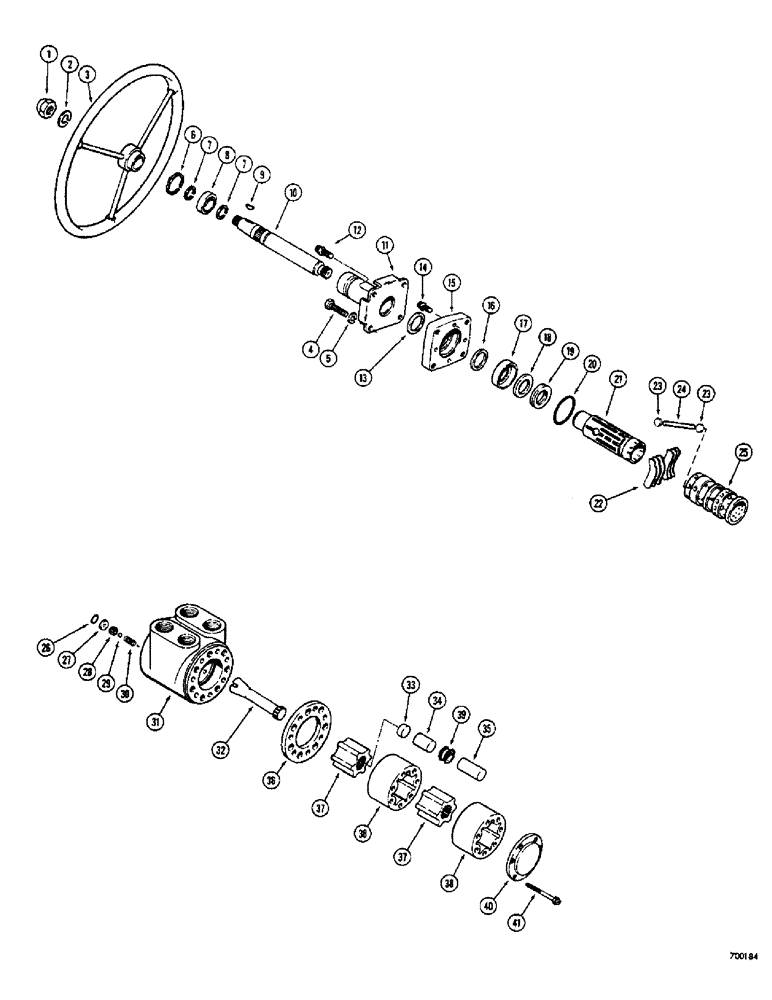

Запчасти Case 400C (164) - STEERING WHEEL AND MANUAL STEERING PUMP (05) - STEERING

1

A8744

NUT

- acorn (Special)

1шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

D45692

WHEEL - steering

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

D50872

PUMP ASSEMBLY - steering, manual, Includes: Ref. 6 - 41

1шт.

6

D46319

OIL SEAL

RETAINER - bearing, outer

1шт.

7

F53335

RING, SNAP

SNAP RING - bearing retaining

2шт.

8

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- steering shaft

1шт.

9

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY - #11 Woodruff

1шт.

10

D46320

SHAFT - steering

1шт.

11

D46321

COLUMN - steering

1шт.

12

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3/4")

2шт.

13

A28211

OIL SEAL

- oil

1шт.

14

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

SCREW - ferry cap (5/16" - 18 NC x 5/8")

4шт.

15

D46317

PLATE ASSY.

COVER - upper

1шт.

16

A72029

RING

SEAL - quad ring

1шт.

L35676

BEARING ASSY

BEARING ASSEMBLY - needle, Includes: Ref. 17 - 19

1шт.

17

D51218

BEARING

RETAINER - bearing (When stock is exhausted, order L35676 bearing assembly for service)

1шт.

18

D51219

WASHER

RACE - thrust bearing (When stock is exhausted, order L35676 bearing assembly for service)

2шт.

19

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle

1шт.

20

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

SEAL - "O"ring

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - pump

1шт.

22

L30889

SPRING

- centering

6шт.

23

L30894

PIN

DISC - pin

2шт.

24

L30888

PIN

- centering

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE - pump

1шт.

26

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL - "O"ring, 7/16 x 5/16 x 1/16 in

1шт.

27

L30892

PLUG

- seal, housing

1шт.

28

L30891

SEAT

- check

1шт.

29

211-101

BALL,1/4" Dia, Stainless

1шт.

30

L30890

VALVE SPRING

SPRING - check

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

32

L30878

DRIVE SHAFT

SHAFT - drive

1шт.

33

D46315

SPACER

- drive shaft, 1/2" long

1шт.

34

L30877

SPACER

- drive shaft, 7/8" long

1шт.

35

D51216

SPACER

- drive shaft, 1-5/8" long

1шт.

36

A72026

PLATE

- spacer

1шт.

D51215

GEAR WHEEL

GEAR SET - pump, Includes: Ref. 37 and 38

2шт.

37

NSS

NOT SOLD SEPARAT

STAR - gear

1шт.

38

NSS

NOT SOLD SEPARAT

RING - gear

1шт.

39

D46316

DRIVE SPROCKET

SLEEVE - splined

1шт.

40

A72024

CAP

COVER - lower

1шт.

41

D51217

BOLT,5/16" x 3 1/2"

SCREW - ferry cap (5/16" - 24 NF x 4-5/16")

7шт.
