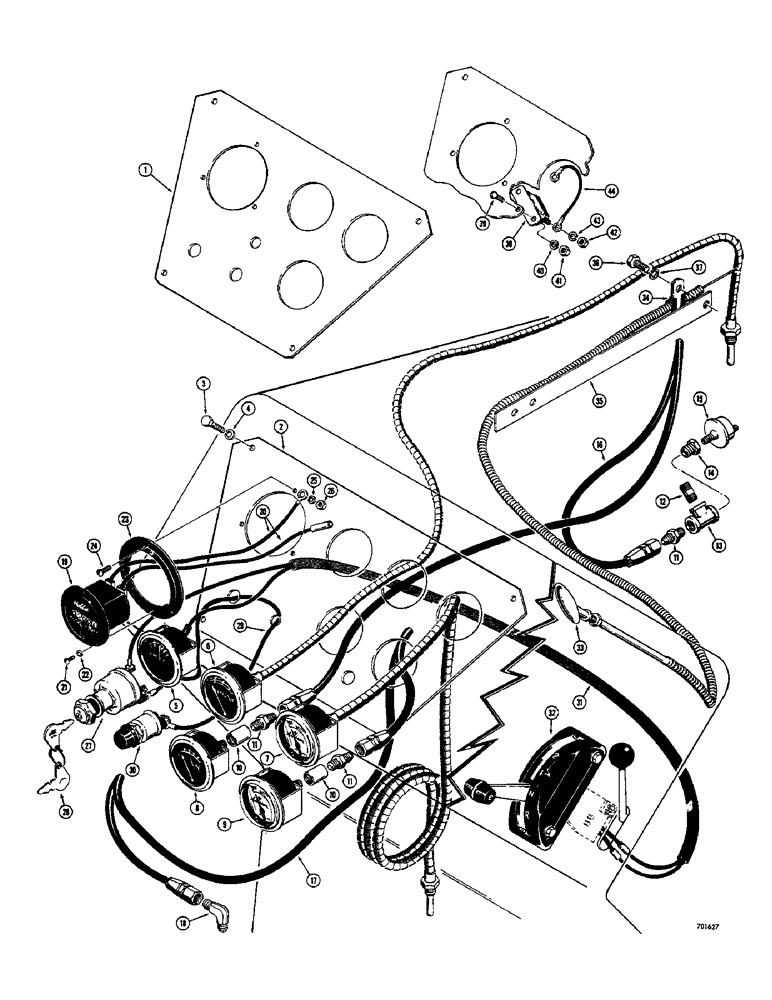

Запчасти Case 400C (068) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

D50869

PANEL - instrument, Synchromesh models

1шт.

2

D50870

PANEL - instrument, Power shift models

1шт.

3

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

D45831

AMMETER

GAUGE - ammeter, alternator amperage

1шт.

6

D45827

GAUGE - engine water temperature

1шт.

7

D47503

GAUGE

- transmission temperature (Power shift models)

1шт.

8

D22853

GAUGE

- engine oil pressure

1шт.

9

D47583

GAUGE

- transmission oil pressure (Power shift models)

1шт.

10

221-335

COUPLING,Pipe, 1/8" NPT

- 1/8" NPT

1-2шт.

11

218-1021

HYD CONNECTOR,3/8" - 24 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, male (1/8" NPT x 3/8" J.I.C.)

2-3шт.

12

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - close, 3/8" NPT

1шт.

13

221-423

TEE,3/8" NPT

- female 3/8" NPT

1шт.

14

221-345

COUPLING, BREAK AWAY

BUSHING - reducing (3/8" NPT x 1/8" NPT)

2шт.

15

D28798

SWITCH

- oil pressure gauge

1шт.

16

D47587

HOSE

Engine Oil Pressure Gauge (71" long)

1шт.

17

D47585

HOSE - transmission oil pressure gauge (97" long) Power shift models

1шт.

18

218-1503

ELBOW - male, 90 degrees (1/8" NPT x 3/8" J.I.C. (Power shift models)

1шт.

19

R24646

ELECTRICAL GAUGE

METER - hour

1шт.

20

D39285

ELECTRICAL WIRE

WIRE - hour meter (36" long)

2шт.

D39284

KIT

PACKET - mounting hardware, Includes: Ref. 21and 22

1шт.

21

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

22

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

23

D35079

DAMPER

DAMPENER - vibration

1шт.

24

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

25

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

26

129-640

NUT,#6-32, Brass

- hex. (#6 - 32 NC)

3шт.

D35092

SWITCH

AND KEY - electrical, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

28

D36822

KEY

- switch, set of two

1шт.

29

D52913

WIRE - switch to starter button

1шт.

30

A30858

SWITCH

STARTING SWITCH - push button type

1шт.

31

D51197

WIRE - starting switch and ammeter to transmission shift control lever (Power shift models)

1шт.

32

REF

INSTRUCTION

LEVER ASSEMBLY - shift control, Power shift models (See Figure 122 for power shift transmission control parts)

1шт.

33

D45999

FUEL SHUTOFF - engine

1шт.

34

D45836

CLAMP - cable

1шт.

35

D51175

BRACKET - cable clamp

1шт.

36

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

37

92-6

LOCK WASHER,3/8"

3шт.

38

A22877

BREAKER,40A

CIRCUIT BREAKER - 40 amp., used on Synchromesh models Sn. 5899 and after - 300C Power shift models Sn. 5450 and after - 400C Power shift models Sn. 6744 and after

1шт.

39

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

RHMS - #10 - 24 NC x 1/2"

1шт.

40

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

41

129-7

NUT,Hex, #10 - 24

- #10 - 24 NC

1шт.

42

129-27

NUT,Hex, #10 - 32

- terminal (#10 - 32 NF)

2шт.

43

195-12

WASHER,#10

- flat #10

2шт.

44

D52913

WIRE - circuit, Serial Range: breaker-ammeter

1шт.
