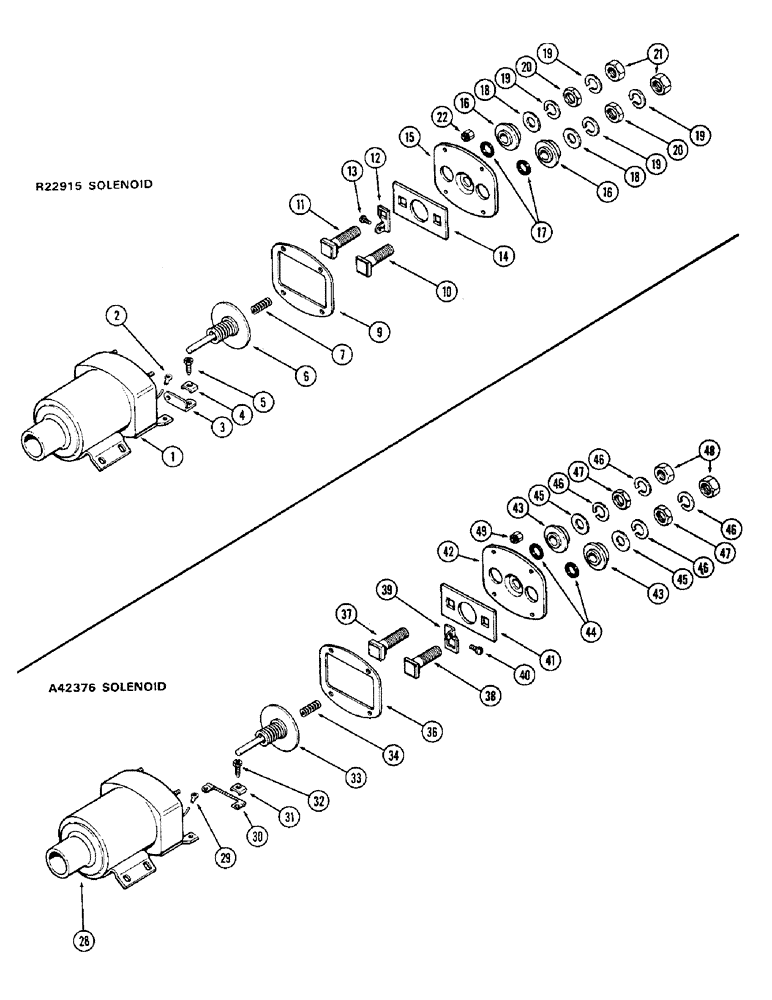

Запчасти Case 400C (058) - R22915 SOLENOID, (336B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

R22915

SOLENOID SWITCH

SOLENOID ASSY. - (Delco Remy #1119878), Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

CASE ASSY. - w/coil, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

CLIP - terminal, coil lead

1шт.

3

R22994

CONNECTOR - ground

1шт.

4

R15182

CLIP

- terminal

1шт.

5

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip

2шт.

6

D32498

CONTACT

DISC ASSY. - contact

1шт.

7

D32499

SPRING

- contact disc return

1шт.

D29577

PLATE ASSY, Includes: Ref. 9 - 21

1шт.

9

A42260

GASKET

- solenoid

1шт.

10

D32505

STUD

- battery terminal

1шт.

11

D32506

STUD

- starter terminal

1шт.

12

D29910

SUPPORT

- coil lead

1шт.

13

175-92

SCREW - #10 x 3/16" N.F. truss hd. mach.

1шт.

14

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

15

D32504

COVER

PLATE - terminal

1шт.

16

D32508

INSULATOR

BUSHING - terminal studs, inside

2шт.

17

D32510

BUSHING

- terminal studs, outside

2шт.

18

D32509

X

WASHER - terminal studs, flat

2шт.

19

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2"

4шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

22

D32500

NUT

ASSY. - w/Shakeproof washer

4шт.

A42376

SWITCH

SOLENOID ASSY. - (Delco-Remy #1119848), Includes: Ref. 28 - 49

1шт.

28

NSS

NOT SOLD SEPARAT

CASE ASSY. - w/coil, A42376 SOLENOID, Includes: Ref. 29

1шт.

29

D30020

CLIP - terminal, coil lead, A42376 SOLENOID

1шт.

30

A42408

ELECTRICAL WIRE

CONNECTOR - ground, A42376 SOLENOID

1шт.

31

A42407

CLAMP

CLIP - terminal, A42376 SOLENOID

2шт.

32

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip, A42376 SOLENOID

2шт.

33

D32498

CONTACT

DISC ASSY. - contact, A42376 SOLENOID

1шт.

34

A42411

VALVE SPRING

SPRING - contact disc return, A42376 SOLENOID

1шт.

A42412

PLATE

ASSY., A42376 SOLENOID, Includes: Ref. 36 - 48

1шт.

36

A42260

GASKET

- A42376 SOLENOID

1шт.

37

A42413

STUD

- battery terminal, A42376 SOLENOID

1шт.

38

D32506

STUD

- starter terminal, A42376 SOLENOID

1шт.

39

A42406

SUPPORT

- coil lead, A42376 SOLENOID

1шт.

40

175-56

SCREW - #10 x 3/16" N.C. truss hd. mach., A42376 SOLENOID Slotted Truss Hd, #6-32 x 3/16"

1шт.

41

D32507

RUBBER INSULATOR

INSULATOR - plate, A42376 SOLENOID

1шт.

42

A42410

PLATE

- terminal, A42376 SOLENOID

1шт.

43

A42409

BUSHING

- terminal studs, inside, A42376 SOLENOID

2шт.

44

D32510

BUSHING

- terminal studs, outside, A42376 SOLENOID

1шт.

45

A42404

X

WASHER - terminal studs, flat, A42376 SOLENOID

2шт.

46

192-113

LOCK WASHER,1/2"

WASHER - lock, , A42376 SOLENOID 1/2"

4шт.

47

129-145

JAM NUT,Jam, 1/2"-13, G5

A42376 Solenoid Jam, 1/2"-13, G5

2шт.

48

129-105

NUT,Hex, 1/2" - 13, Gr 5

A42376 Solenoid 1/2"-13, G5

2шт.

49

D32500

NUT

ASSY. - w/Shakeproof washer, A42376 SOLENOID

4шт.
