Запчасти Case 400C (054) - A15485 STARTER, (336B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

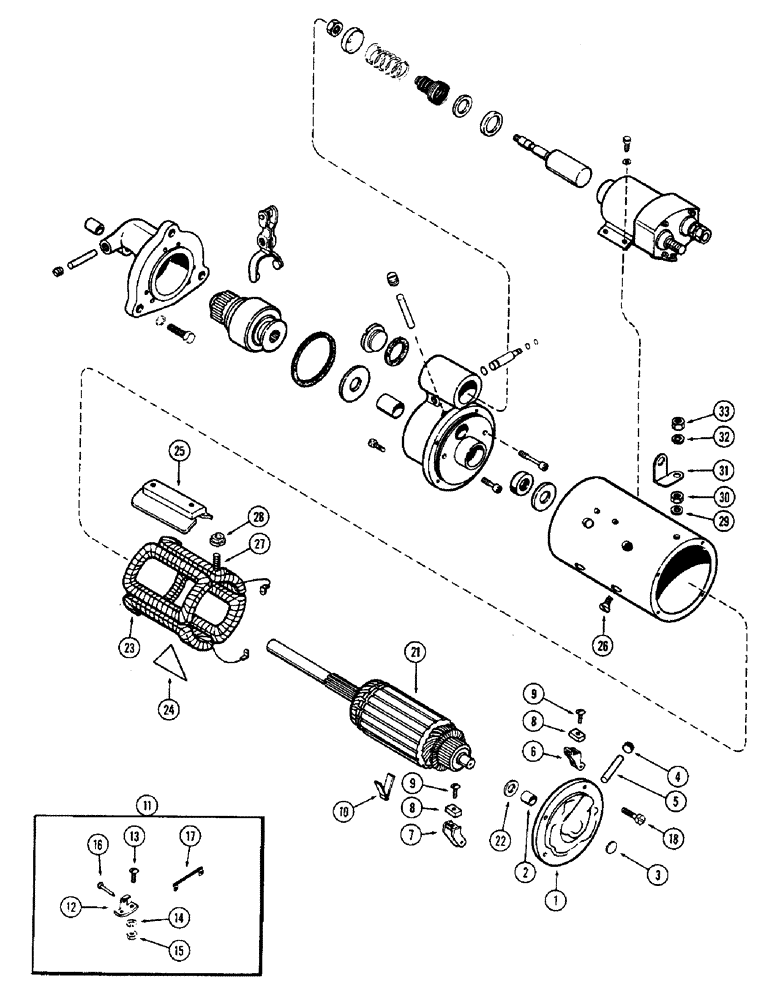

Схема запчастей Case 400C - (054) - A15485 STARTER, (336B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A15485

STARTING MOTOR

STARTER ASSY. - (Delco Remy #1113370) (Used for repairs), Includes: Ref. 1 - 33

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

1

R21559

FRAME

FRAME ASSY. - commutator end, Includes: Ref. 2 - 5

1шт.

2

R15020

BUSHING

BUSHING - frame

1шт.

3

R15021

PLUG

PLUG - expansion

1шт.

4

221-1041

PLUG

PLUG - oil wick hole

1шт.

5

R15023

WICK

WICK - oil

1шт.

6

R21590

HOLDER

HOLDER - brush, insulated

2шт.

7

A40217

HOLDER

HOLDER - brush, ground

2шт.

8

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

9

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush attaching

4шт.

10

R15025

SPRING

SPRING - brush

2шт.

11

R15029

BRUSH

KIT - brush support, Includes: Ref. 12 - 17

2шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT - brush

1шт.

13

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

SCREW - #10 x 3/4" N.F. truss hd. mach.

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

R15032

X

NUT - #10 N.F. hex.

2шт.

16

R15035

PIN

PIN - brush holder

1шт.

17

R15030

ELECTRICAL WIRE

WIRE LEAD - ground

1шт.

18

R21578

SCREW

BOLT - commutator frame mounting

4шт.

21

A40909

ARMATURE

ARMATURE - starter

1шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer, commutator end

1шт.

23

R21557

COIL ASSY.

COIL ASSY. - field

1шт.

24

A41977

RUBBER INSULATOR

INSULATOR - field coil

1шт.

25

R15115

SHOE

SHOE - pole

4шт.

26

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoe

8шт.

27

R15017

STUD

STUD - terminal

1шт.

28

R15010

BUSHING

BUSHING - insulating, terminal stud

1шт.

29

A42010

WASHER

INSULATOR - terminal stud

1шт.

30

R15013

WASHER

WASHER - terminal stud

1шт.

31

D32480

SPARE PART CONNECTOR - term., Serial Range: stud-solenoid

1шт.

32

192-111

WASHER,3/8"

WASHER - lock, 3/8"

1шт.

33

R15014

NUT

NUT - terminal stud

2шт.

Выбрано товаров: 36
