Запчасти Case 400C (052) - R20745 STARTER, (336B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

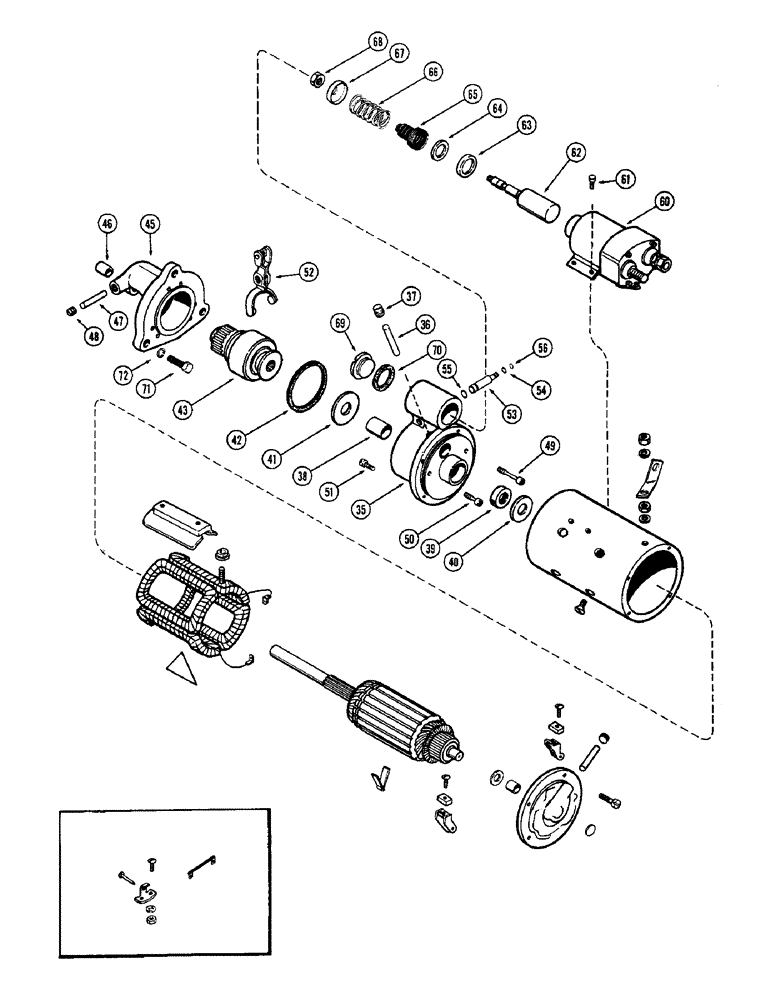

Схема запчастей Case 400C - (052) - R20745 STARTER, (336B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

R20745

STARTER ASSY. (continued from figure 50), Includes: Ref. 35 - 70

1шт.

35

R21579

HOUSING

ASSY. - shift lever, Includes: Ref. 36 - 39

1шт.

36

R15023

WICK

- oil

1шт.

37

221-1041

PLUG

- oil wick hole

1шт.

38

R21580

BUSHING

- lever housing

1шт.

39

R21582

OIL SEAL

- oil, lever housing

1шт.

40

R21583

WASHER

- spacer, armature

1шт.

41

R15145

DISC

WASHER - brake

1шт.

42

R21562

GASKET

- drive housing to lever housing

1шт.

43

R42397

DRIVE ASSY. - starter

1шт.

45

A40283

HOUSING

ASSY. - drive end, Includes: Ref. 46 - 48

1шт.

46

A40893

BUSHING

- housing

1шт.

47

R15023

WICK

- oil

1шт.

48

221-1041

PLUG

- oil wick hole

1шт.

49

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - socket head (1-1/2" long)

1шт.

50

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - socket head (7/8" long)

1шт.

51

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Lever housing to frame Hex, 1/4"-28 x 1", G5

4шт.

52

D32547

LEVER

- shift

1шт.

53

A42199

PIN

SHAFT - shift lever pivot

1шт.

54

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - shaft, small

1шт.

55

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - shaft, large

1шт.

56

A40422

RING

- snap, shaft retaining

1шт.

60

R22915

SOLENOID SWITCH

SOLENOID ASSY. - (See Figure 58)

1шт.

61

R15139

WASHER

SCREW ASSY. -, Serial Range: solenoid-frame

4шт.

62

A42309

PLUNGER

- solenoid

1шт.

63

R21572

RETAINER

WASHER - retainer

1шт.

64

A42063

RETAINER - spring

1шт.

65

A42308

BOOT

- solenoid

1шт.

66

A41242

SPRING

- return

1шт.

67

R21571

RETAINER

- spring

1шт.

68

131-31

LOCK NUT,5/16"-24, G8

NUT - adjusting, plunger guide

1шт.

69

R21587

PLUG

- lever housing

1шт.

70

A41924

GASKET

- plug

1шт.

71

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used w/Synchromesh trans., w/turbo charger Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

71

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex. (Used w/synchromesh trans., w/ & w/o turbo-charger and w/power shift trans.)

2шт.

71

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" N.C. hex. (Used w/synchromesh & power shift trans. w/o turbo-charger)

1шт.

72

92-8

LOCK WASHER,1/2"

3шт.

Выбрано товаров: 37
