Запчасти Case 400C (048) - A59149 FUEL INJECTION PUMP, (336B) DIESEL ENGINE, W/ TURBO-CHARGER, W/O HAND PRIMER PUMP OR FILTER (03) - FUEL SYSTEM

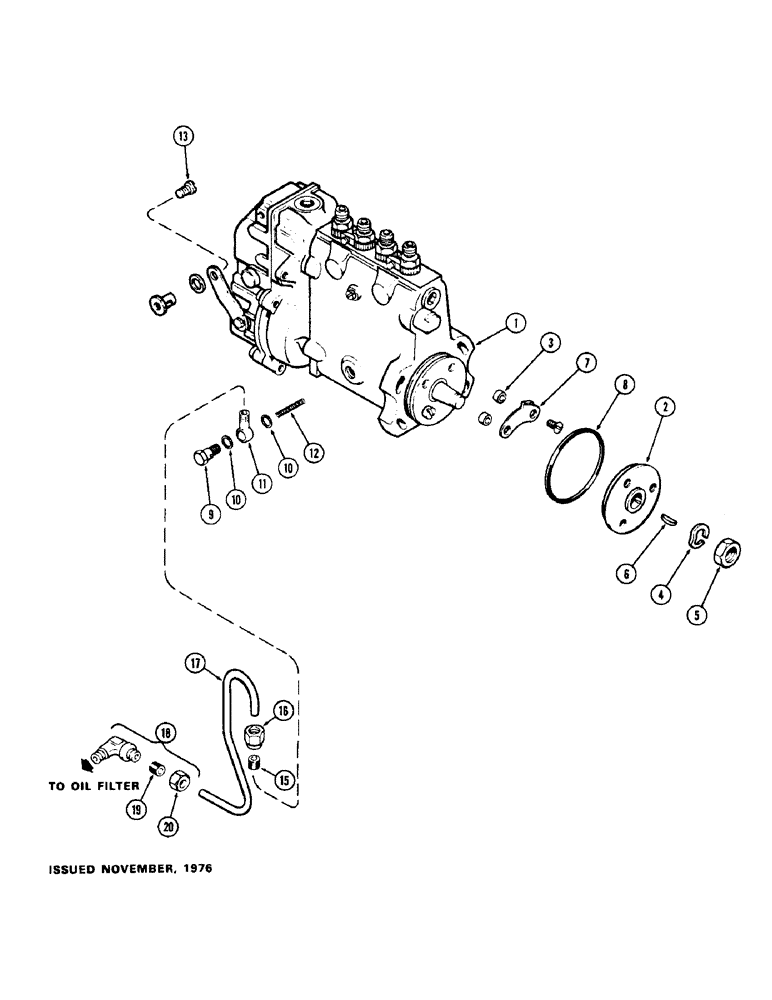

Схема запчастей Case 400C - (048) - A59149 FUEL INJECTION PUMP, (336B) DIESEL ENGINE, W/ TURBO-CHARGER, W/O HAND PRIMER PUMP OR FILTER (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

A59149

RING

PUMP ASSY. - fuel injection (2000 R.P.M.) Bosch #PES4A95C420LS3013 (Order 1-A138015, 1-A136901 & 1-222-42), Includes: Ref. 2 - 13

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41859

BUSHING

SPACER - hub

2шт.

4

A41851

LOCK WASHER

- lock, hub nut

1шт.

5

A41852

LOCK NUT

- hub

1шт.

6

A41850

KEY

-, Serial Range: hub-shaft

1шт.

7

A41858

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mounting

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- tube fitting, copper

2шт.

11

A25191

FITTING

- oil tube to pump, banjo

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

513-2200

BOLT

SCREW - stop cable lock

1шт.

15

222-102

SLEEVE,1/4" Tube

1шт.

16

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

17

A59226

TUBE

- oil, Serial Range: gallery-pump

1шт.

18

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

- 1/4" tube x 1/4" P.T., Includes: Ref. 19 and 20

1шт.

19

222-102

SLEEVE,1/4" Tube

1шт.

20

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

Выбрано товаров: 19
