Запчасти Case 400C (047C) - A62326 FUEL INJECTION PUMP, (336B) DIESEL ENGINE, W/ TURBO-CHARGER, W/ HAND PRIMER PUMP AND FILTER (03) - FUEL SYSTEM

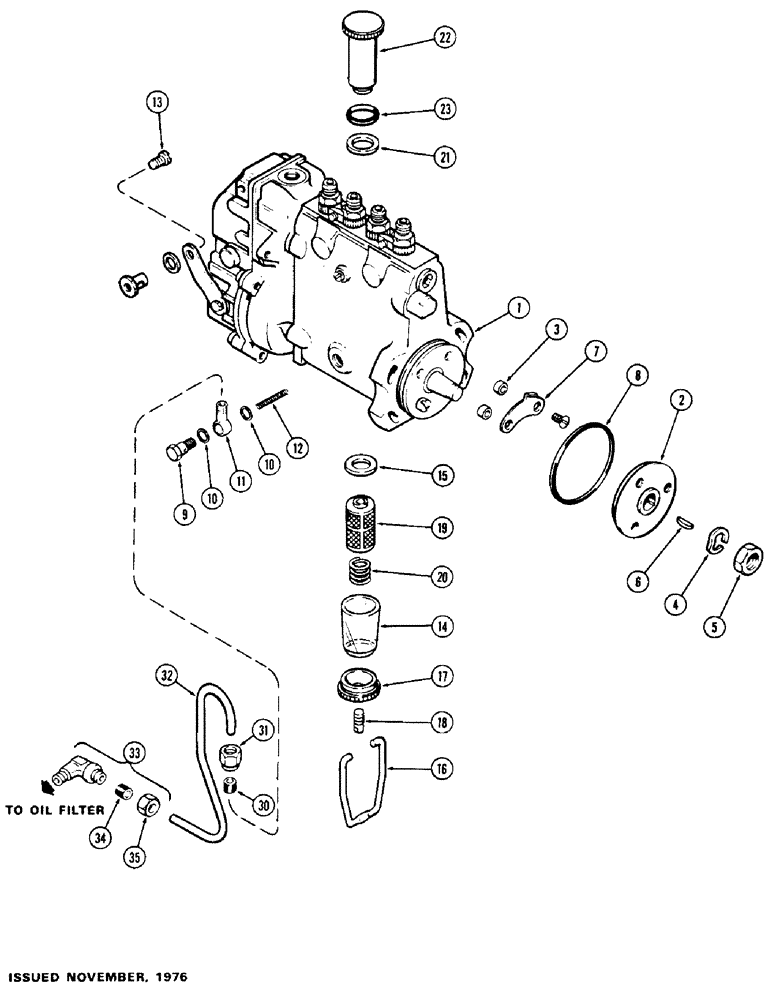

Схема запчастей Case 400C - (047C) - A62326 FUEL INJECTION PUMP, (336B) DIESEL ENGINE, W/ TURBO-CHARGER, W/ HAND PRIMER PUMP AND FILTER (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

A62326

PUMP

ASSY. - fuel injection (2200 R.P.M.) (Order 1-A138015, 1-A136901 & 1-222-42) (See Figure 47A) Bosch #PES4A95C420LS3013, Includes: Ref. 2 - 23

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41859

BUSHING

SPACER - hub

2шт.

4

A41851

LOCK WASHER

- lock, hub nut

1шт.

5

A41852

LOCK NUT

- hub

1шт.

6

A41850

KEY

-, Serial Range: hub-shaft

1шт.

7

A41858

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mtg., 2-61/64 x 3-3/16 x 1/8"

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

513-200

SCREW - pump stop control cable lock

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - retaining

1шт.

18

A43349

STUD

- bailnut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- port, copper gasket

2шт.

22

A43343

CARTRIDGE

PRIMER - hand pump, Includes: Ref. 23

1шт.

23

A45352

KIT

GASKET - primer pump

1шт.

30

222-102

SLEEVE,1/4" Tube

Tube to pump 1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - tube to pump

1шт.

32

A59226

TUBE

- oil, Serial Range: gallery-pump

1шт.

33

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - oil, gallery, Includes: Ref. 34 and 35

1шт.

34

222-102

SLEEVE,1/4" Tube

- for 1/8" tube

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT - for 1/8" tube

1шт.

Выбрано товаров: 29
