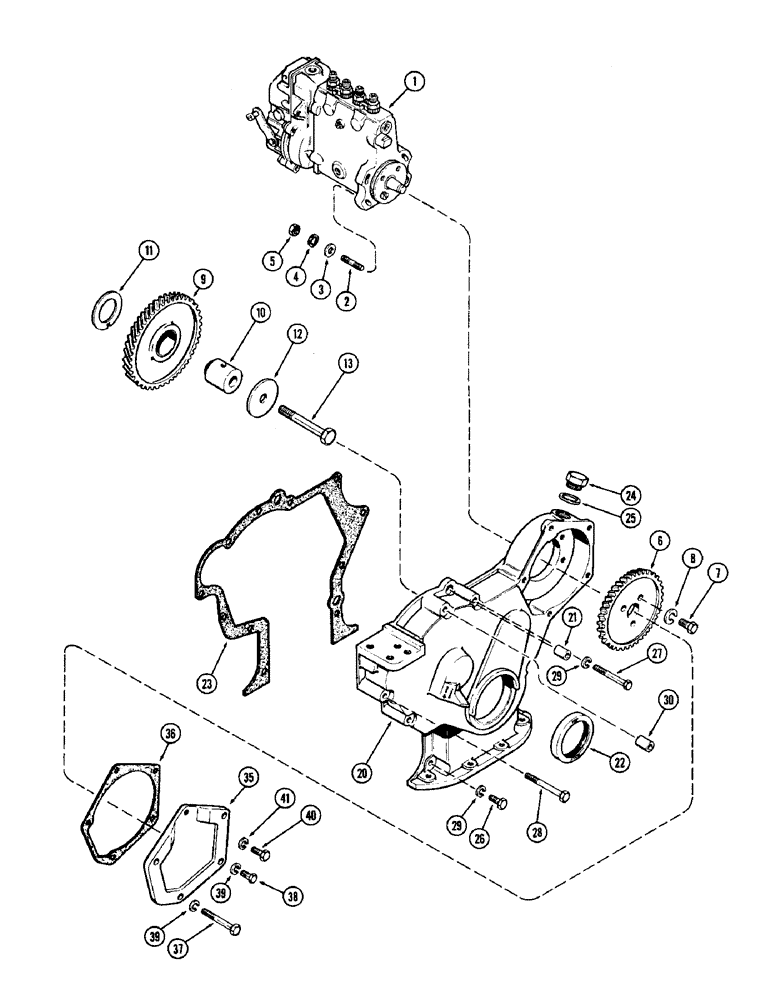

Запчасти Case 400C (046) - FUEL INJECTION PUMP AND DRIVE, (336B) DIESEL ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
PUMP ASSY. - fuel injection, w/turbo-charger (W/hand primer & filter) (See Figures 47A & 47C)
1шт.
1
REF
INSTRUCTION
PUMP ASSY. - fuel injection, w/turbo-charger (W/o hand primer pump or filter) (See Figure 48)
1шт.
1
REF
INSTRUCTION
PUMP ASSY. - fuel injection, w/o turbo-charger (W/hand primer pump & filter) (See Figures 47E & 47G)
1шт.
1
REF
INSTRUCTION
PUMP ASSY. - fuel injection, w/o turbo-charger (W/o hand primer pump or filter) (See Figure 49A)
1шт.
2
A58689
STUD
- pump mounting
4шт.
3
A57470
WASHER
- 13/32 x 11/16 x 16 ga.
4шт.
4
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
5
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
4шт.
6
A58693
GEAR
- injection pump
1шт.
7
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
3шт.
8
92-6
LOCK WASHER,3/8"
3шт.
9
A62542
GEAR
ASSY. - idler, w/bushing (Replaces A58686)
1шт.
10
A58690
SHAFT
- idler gear
1шт.
11
A58691
WASHER
- thrust, idler shaft
1шт.
12
A58692
PLATE
- thrust, idler shaft
1шт.
13
13-868
BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5
1шт.
20
A58609
COVER
ASSY. - timing gear, Includes: Ref. 21
1шт.
21
A58611
PIN
- dowel, cover
2шт.
22
A62049
OIL SEAL
- crankshaft front
1шт.
23
A58612
GASKET
- cover
1шт.
24
A21140
PLUG
- timimg window
1шт.
25
A58613
SEALING WASHER
GASKET - plug
1шт.
26
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
27
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- 3/8 x 2-1/2" N.C. hex.
2шт.
28
13-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
3шт.
29
92-6
LOCK WASHER,3/8"
9шт.
30
A19774
BUSHING
SPACER - alternator pry point
1шт.
35
A61053
COVER
- fuel pump
1шт.
36
A58615
GASKET
- cover
1шт.
37
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- 3/8 x 3-1/2" N.C. hex.
2шт.
38
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
39
92-6
LOCK WASHER,3/8"
4шт.
40
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
1шт.
41
92-5
LOCK WASHER,5/16"
1шт.
Выбрано товаров: 34
