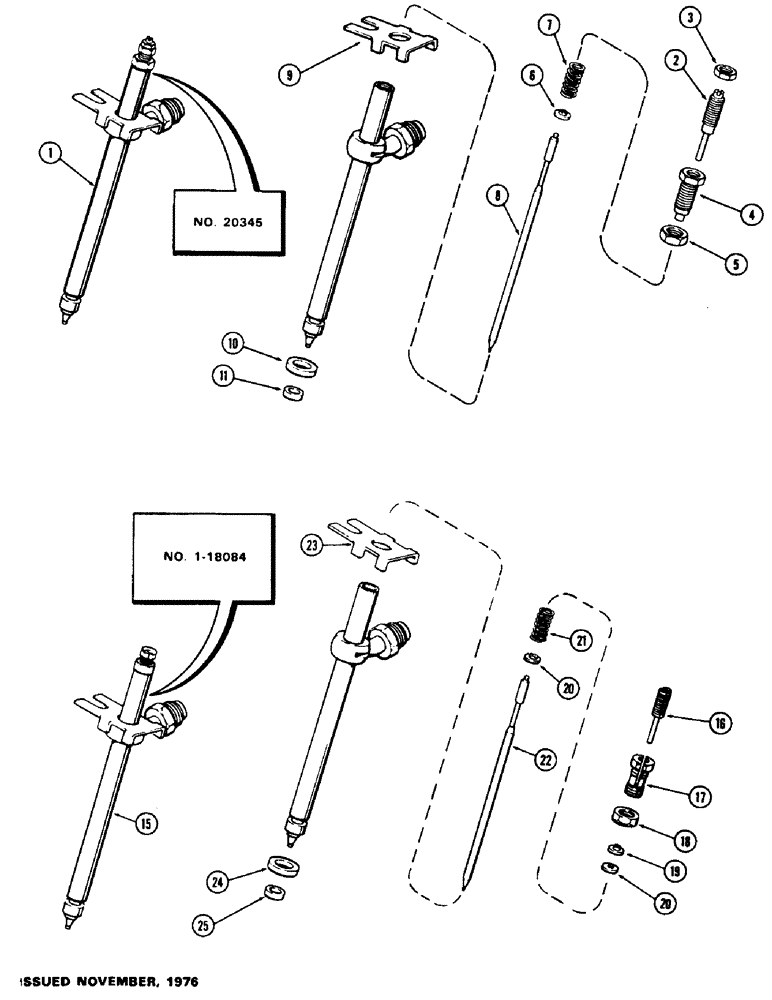

Запчасти Case 400C (045G) - A62809 FUEL INJECTION NOZZLE, (336B) DIESEL ENGINE, WITH TURBO-CHARGER (03) - FUEL SYSTEM

1

A62809

NOZZLE CAP

NOZZLE ASSY. - injection (Supplier's No. 19745 stamped on body) (Color coded red) (Order A138322), Includes: Ref. 2 - 11

4шт.

Whenever nozzle is removed from head, the seal A41402 & washer A41403 must be replaced before nozzle is installed back on head.

1шт.

A138322R

REMAN-INJECT NOZZLE

300C, 400C REMAN FOR NEW P/N A62809

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

3

A43602

NUT

- lock, lift adjusting (#10-56 hex.)

1шт.

4

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

5

A42424

LOCK NUT

- lock, pressure adjusting (5/16"-48 hex.)

1шт.

6

A41401

SEAT

- spring

1шт.

7

A43601

SPRING

- nozzle pressure (1/2" free length)

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

9

A41768

PLATE

- nozzle locating

1шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

15

A58694

NOZZLE

ASSY. - injection (Supplier's No. I18984 stamped on body) (Order A138322), A58694 FUEL NOZZLE, Includes: Ref. 16 - 25

4шт.

Whenever nozzle is removed from head, the seal A41402 & washer A41403 must be replaced before nozzle is installed back on head.

1шт.

A138322R

REMAN-INJECT NOZZLE

300C, 400C REMAN FOR NEW P/N A58694

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting, A58694 FUEL INJECTION NOZZLE

1шт.

17

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting, A58694 FUEL INJECTION NOZZLE

1шт.

18

A42424

LOCK NUT

- hex., A58694 FUEL INJECTION NOZZLE

1шт.

19

A41407

WASHER

- ball, A58694 FUEL INJECTION NOZZLE

1шт.

20

A44369

SEAT

- spring, A58694 FUEL INJECTION NOZZLE

2шт.

21

A41444

VALVE SPRING

SPRING - nozzle pressure locating (17/32" free length), A58694 FUEL INJECTION

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle, A58694 FUEL INJECTION

1шт.

23

A41768

PLATE

- nozzle locating, A58694 FUEL INJECTION

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain, A58694 FUEL INJECTION NOZZLE

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, A58694 FUEL INJECTION NOZZLE

1шт.
