Запчасти Case 400C (045E) - A138322 FUEL INJECTION NOZZLE, (336B) DIESEL ENGINE, WITH TURBO-CHARGER (03) - FUEL SYSTEM

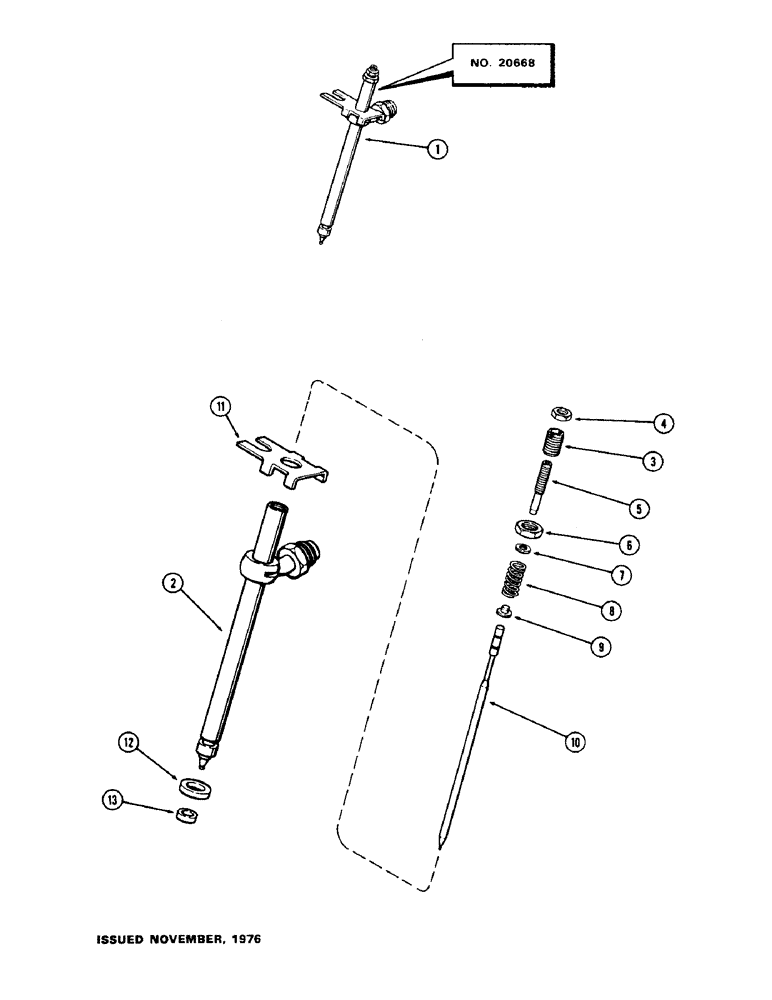

Схема запчастей Case 400C - (045E) - A138322 FUEL INJECTION NOZZLE, (336B) DIESEL ENGINE, WITH TURBO-CHARGER (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

A138322

NOZZLE CAP

NOZZLE ASSY. - injection (Supplier's No. 20668 stamped on body) (Color coded red) (Replaces A62809 & A58694), Includes: Ref. 2 - 13

4шт.

Whenever nozzle is removed from head, the seal ref. 13 & washer ref. 12 must be replaced before nozzle is installed back in the head.

1шт.

A138322R

REMAN-INJECT NOZZLE

300C, 400C

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A45292

SCREW

- pressure adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting (#10-56 hex.)

1шт.

5

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting (5/16"-48 hex.)

1шт.

7

NLS

NO LONGER SERVICED

SEAT - pressure spring, upper

1шт.

8

A45290

SPRING

- pressure adjusting, 21/32" free length

1шт.

9

A45289

SEAT

- pressure adjusting spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

Выбрано товаров: 16
