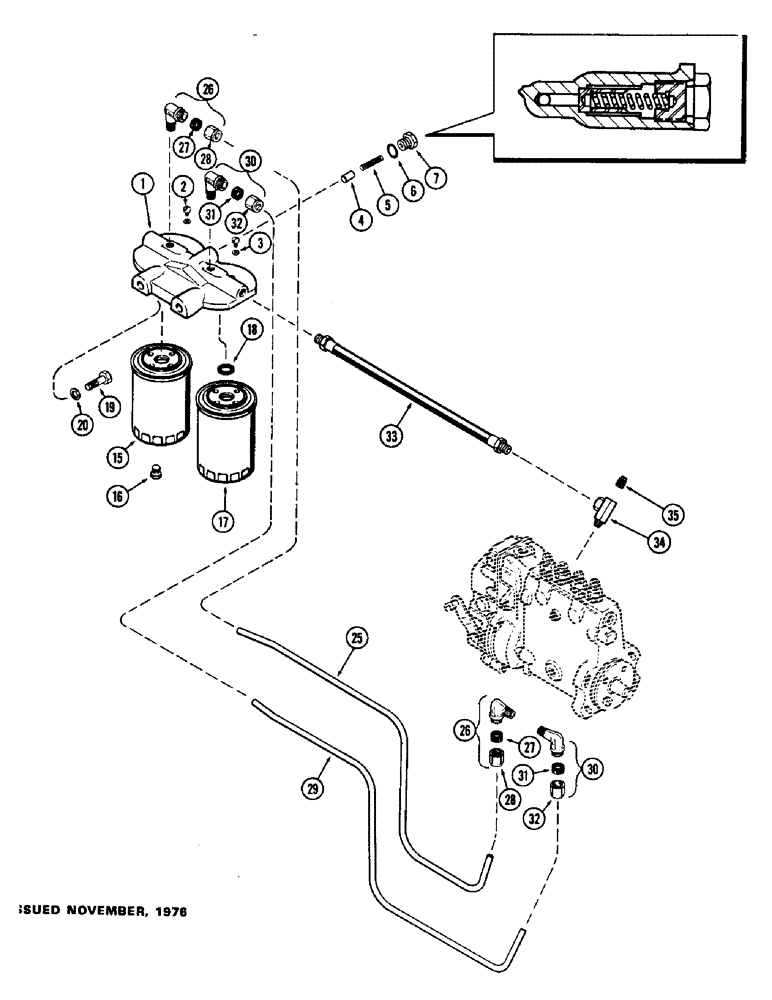

Запчасти Case 400C (044) - FUEL INJECTION FILTER SYSTEM, (336B) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2319862 (03) - FUEL SYSTEM

A58719

FILTER

ASSY. - 1st & 2nd stage, Includes: Ref. 1 - 7

1шт.

1

A58711

FILTER

HEAD - filter

1шт.

2

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed

2шт.

3

A20662

GASKET

WASHER - bleed screw

2шт.

4

A24917

PLUNGER

- relief valve

1шт.

5

A24918

SPRING

- relief valve

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - 1/2 x 11/16 x 3/32"

1шт.

7

A24916

PLUG

- relief valve

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - spin on filters, Includes: Ref. 15 -18

1шт.

15

NSS

NOT SOLD SEPARAT

FILTER - 1st stage, Includes: Ref. 16

1шт.

16

221-1661

PLUG

- 1/8" hex. hd. pipe

1шт.

17

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage, Includes: Ref. 18

1шт.

18

A42315

GASKET

- 2nd stage filter

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

25

A58772

TUBE

- 1st, Serial Range: stage-pump

1шт.

26

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel lines, Includes: Ref. 27 and 28

1шт.

27

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

28

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

29

A58773

TUBE

- pump to 2nd stage

1шт.

30

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line, Includes: Ref. 31 and 32

2шт.

31

222-103

SLEEVE,5/16" Tube

1шт.

32

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

33

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- filter, Serial Range: head-pump

1шт.

34

A20539

FITTING

UNION - switch (In injection pump)

1шт.

35

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T. sq. hd.

1шт.
