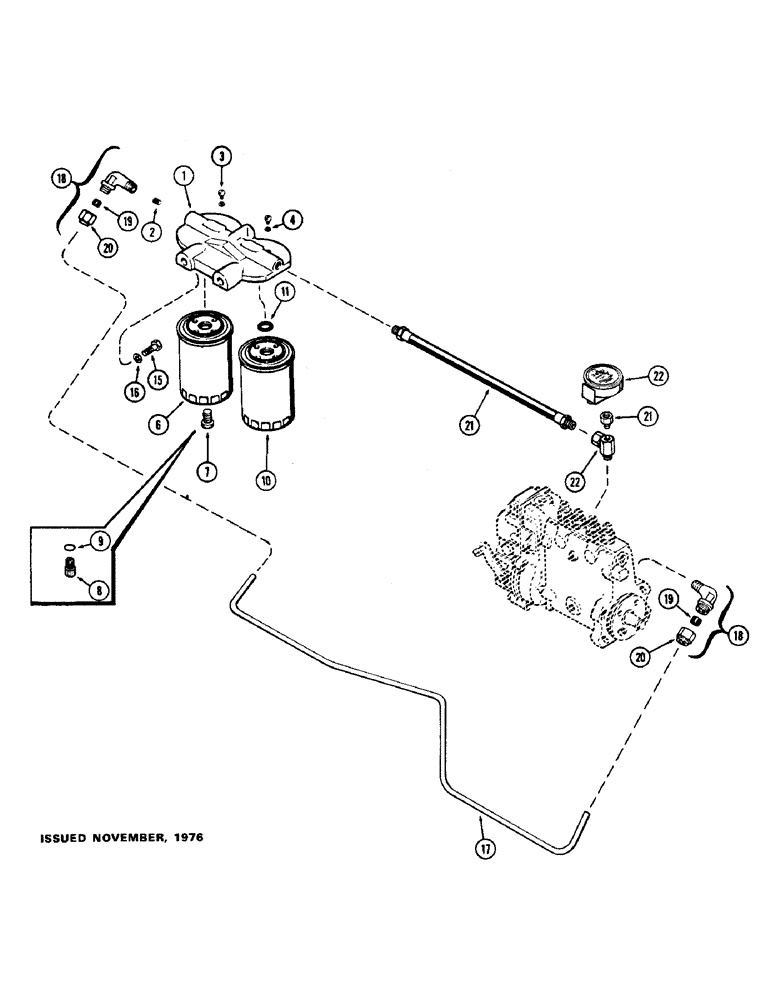

Запчасти Case 400C (043A) - FUEL INJECTION FILTER SYSTEM, (336B) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2319862 (03) - FUEL SYSTEM

A62347

FILTER

ASSY. - 1st & 2nd stage, Includes: Ref. 1 - 11

1шт.

1

A62339

HEAD

ASSY. - fuel filter, Includes: Ref. 2

1шт.

2

221-41

PLUG

- 1/8" P.T. sltd. hdless

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleeder

2шт.

4

A66619

WASHER

- bleed screw (Replaces A20662)

2шт.

NLS

NO LONGER SERVICED

FILTER KIT - fuel, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER - 1st stage, Includes: Ref. 7 - 9

1шт.

7

221-1661

PLUG

- metal, 1/8" P.T. hex. hd

1шт.

8

G49080

PLUG

- plastic, 3/8" N.F.

1шт.

9

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - w/plastic plug (3/8 x 9/16 x 3/32")

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage, Includes: Ref. 11

1шт.

11

A42315

GASKET

-, Serial Range: filter-head

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

A62341

TUBE

- pump to 1st stage filter

1шт.

18

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4 P.T., 5/16" tube, Includes: Ref. 19 and 20

2шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

21

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- 2nd stage, Serial Range: filter-pump

1шт.

22

A20539

FITTING

UNION - in pump

1шт.

23

A28061

FITTING

SNUBBER - oil gauge

1шт.

24

A8101

GAUGE

- oil pressure

1шт.
