Запчасти Case 400C (042) - FUEL INJECTION SYSTEM, (336B) DIESEL ENGINE (03) - FUEL SYSTEM

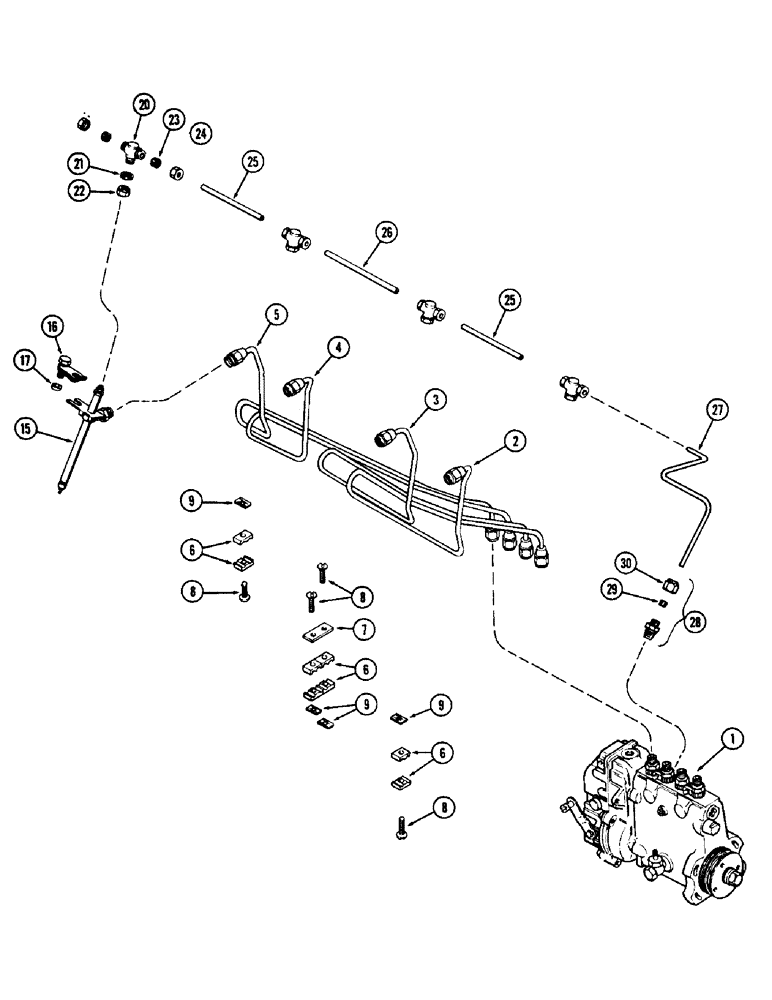

Схема запчастей Case 400C - (042) - FUEL INJECTION SYSTEM, (336B) DIESEL ENGINE (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection, w/turbo-charger (W/hand primer pump & filter) (See Figures 47A & 47C)

1шт.

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection, w/turbo-charger (W/o hand primer pump or filter) (See Figure 48)

1шт.

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection, w/o turbo-charger (W/hand primer pump & filter) (See Figures 47E & 47G)

1шт.

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection, w/o turbo-charger (W/o hand primer pump or filter) (See Figure 49A)

1шт.

2

A58702

TUBE

ASSY. - fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

ASSY. - fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

ASSY. - fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSY. - fuel injection, #4 cylinder

1шт.

6

A58709

BRACKET

CLAMP - injection tube

8шт.

7

A58710

PLATE

- bracket

1шт.

8

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- #10 x 1" N.C. rd. hd. mach.

4шт.

9

131-162

LOCK NUT

NUT - #10 flat, Tinnerman

4шт.

15

REF

INSTRUCTION

NOZZLE ASSY. - fuel injection (See Figures 45A - 45G)

4шт.

16

A58695

CLAMP

ASSY. - nozzle

4шт.

17

A58696

SPACER

- nozzle clamp

4шт.

20

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE ASSY. - nozzle leak-off

4шт.

21

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- tee

4шт.

22

A58961

NUT

- tee

4шт.

23

222-102

SLEEVE,1/4" Tube

8шт.

24

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

8шт.

25

A58965

TUBE

- leak-off, 4-5/8" long

2шт.

26

A58964

TUBE

- leak-off, 5-5/8" long

1шт.

27

A58963

TUBE

- leak-off, #1, Serial Range: nozzle-valve

1шт.

28

A28098

VALVE

ASSY. - leak-off check (In injection pump), Includes: Ref. 29 and 30

1шт.

29

222-102

SLEEVE,1/4" Tube

1шт.

30

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

Выбрано товаров: 26
