Запчасти Case 400C (074) - AIR CLEANER AND RELATED PARTS (02) - ENGINE

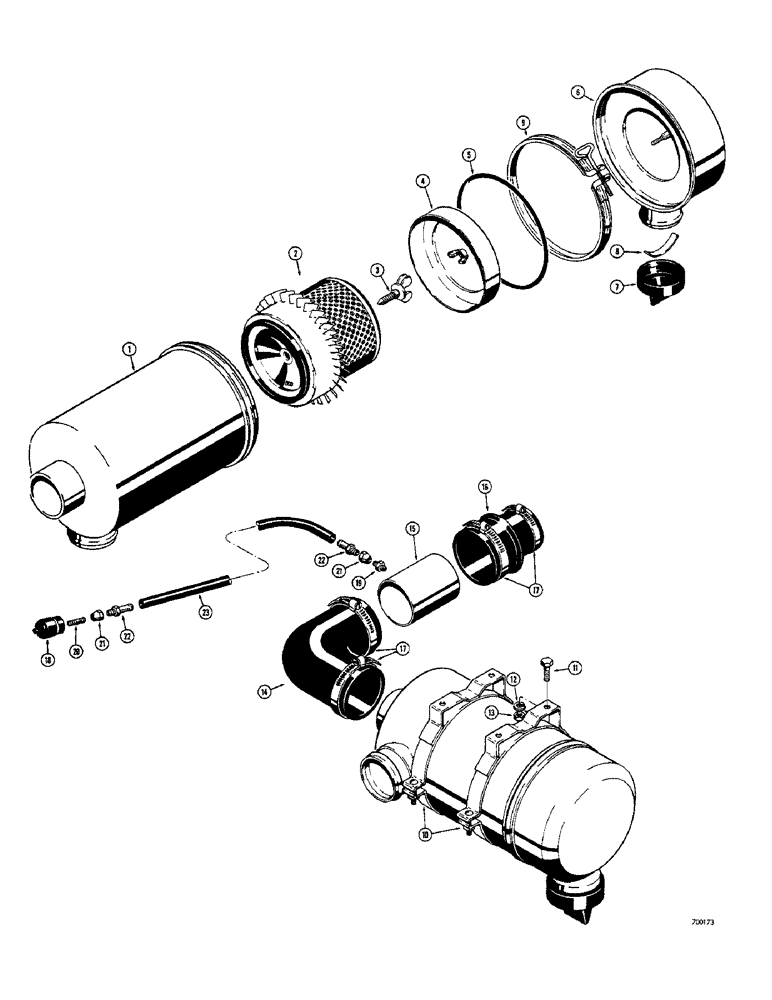

Схема запчастей Case 400C - (074) - AIR CLEANER AND RELATED PARTS (02) - ENGINE

Артикул

Название

Примечание

Количество

D50918

CLEANER

AIR CLEANER ASSEMBLY - engine, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

D50938

ELEMENT

- air cleaner

1шт.

3

D50939

BOLT (SPREADER)

BOLT AND WASHER -, Serial Range: element-body

1шт.

4

D50942

BAFFLE

- dust

1шт.

5

D50946

GASKET

- "O"ring, Serial Range: cup-body

1шт.

6

D50943

CUP

- collector

1шт.

7

D30414

VALVE - vacuator

1шт.

8

D50945

SPRING

- vacuator valve

1шт.

9

D50941

CLAMP

BOLT AND CLAMP -, Serial Range: cup-body

1шт.

10

A16574

BAND

CLAMP - mounting, air cleaner

2шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

14

D50920

ELBOW

- hose, 90 degrees

1шт.

15

D50923

TUBE - air cleaner indicator

1шт.

16

A56094

HOSE

CONNECTOR - rubber, Serial Range: tube-turbocharger

1шт.

17

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - connector to turbocharger and elbow to air cleaner

4шт.

18

D50915

INDICATOR - air cleaner element, Includes: Ref. 19

1шт.

19

D36264

FITTING

- filtered, indicator

1шт.

20

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - close (1/8" NPT)

1шт.

21

221-344

LUBE NIPPLE

COUPLING - reducing

2шт.

22

220-2

FITTING

- hose, push-on

2шт.

23

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Indicator to tube (20" long)

1шт.

Выбрано товаров: 24
