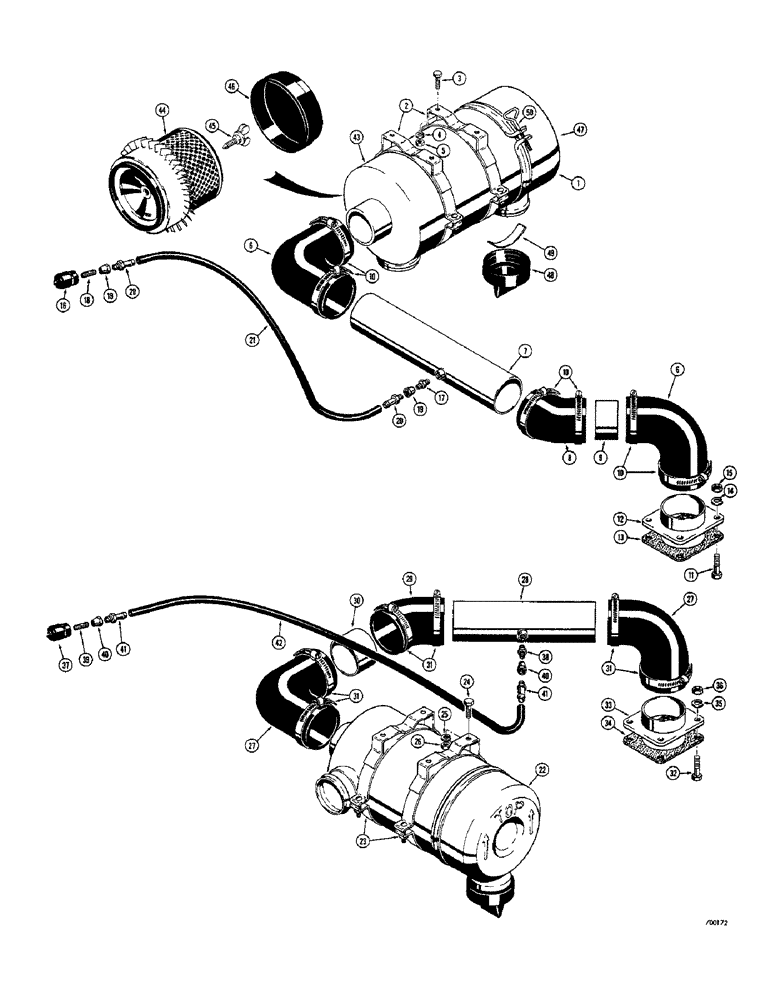

Запчасти Case 400C (072) - AIR CLEANER AND RELATED PARTS, SYNCHROMESH TRANSMISSION MODELS (02) - ENGINE

1

D50917

CLEANER

AIR CLEANER ASSEMBLY - engine

1шт.

2

70973

BRACKET

CLAMP - mounting, air cleaner

2шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

6

L17181

ELBOW

- hose, 90 degrees

2шт.

7

D50921

TUBE - air, Serial Range: cleaner-manifold

1шт.

8

D50919

ELBOW - hose, 45 degrees

1шт.

9

50916

SPACER

TUBE - connector, elbow

1шт.

10

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

6шт.

11

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

1шт.

12

D50924

FLANGE - manifold

1шт.

13

D50925

GASKET - manifold flange

1шт.

14

92-7

LOCK WASHER,7/16"

4шт.

15

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

4шт.

16

D50915

INDICATOR - cleaner element, Includes: Ref. 17

1шт.

17

D36264

FITTING

- filtered, indicator

1шт.

18

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - close (1/8" NPT)

1шт.

19

221-344

LUBE NIPPLE

COUPLING - reducing

2шт.

20

220-2

FITTING

- hose, push-on

2шт.

21

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Indicator to tube (30" long)

1шт.

22

D50917

CLEANER

AIR CLEANER ASSEMBLY - engine, POWER SHIFT TRANSMISSION MODELS

1шт.

23

70973

BRACKET

CLAMP - mounting, air cleaner, POWER SHIFT TRANSMISSION MODELS

2шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Power shift transmission models Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

25

92-5

LOCK WASHER,5/16"

POWER SHIFT TRANSMISSION MODELS 5/16"

4шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), POWER SHIFT TRANSMISSION MODELS

4шт.

27

L17181

ELBOW

- hose, 90 degrees, POWER SHIFT TRANSMISSION MODELS

2шт.

28

D50922

TUBE - air cleaner to manifold, POWER SHIFT TRANSMISSION MODELS

1шт.

29

D50919

ELBOW - hose, 45 degrees, POWER SHIFT TRANSMISSION MODELS

1шт.

30

D50916

TUBE - connector, elbow, POWER SHIFT TRANSMISSION MODELS

1шт.

31

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, POWER SHIFT TRANSMISSION MODELS

6шт.

32

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Power Shift Transmission models

4шт.

33

D50924

FLANGE - manifold, POWER SHIFT TRANSMISSION MODELS

1шт.

34

D50925

GASKET - manifold flange, POWER SHIFT TRANSMISSION MODELS

1шт.

35

92-7

LOCK WASHER,7/16"

POWER SHIFT TRANSMISSION MODELS 7/16"

4шт.

36

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC), POWER SHIFT TRANSMISSION MODELS

4шт.

37

D50915

INDICATOR - cleaner element, POWER SHIFT TRANSMISSION MODELS, Includes: Ref. 38

1шт.

38

D36264

FITTING

- filtered, indicator, POWER SHIFT TRANSMISSION MODELS

1шт.

39

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - close (1/8" NPT), POWER SHIFT TRANSMISSION MODELS

1шт.

40

221-344

LUBE NIPPLE

COUPLING - reducing, POWER SHIFT TRANSMISSION MODELS

2шт.

41

220-2

FITTING

- hose, push-on, POWER SHIFT TRANSMISSION MODELS

2шт.

42

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Indicator to tube (36" long), POWER SHIFT TRANSMISSION MODELS

1шт.

D50917

CLEANER

AIR CLEANER ASSEMBLY - engine, Includes: Ref. 43 - 50

1шт.

43

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

44

D37975

FILTER

ELEMENT - air cleaner

1шт.

45

D50940

BOLT

AND WASHER - element to body, AIR CLEANER

1шт.

46

D37979

BAFFLE

- dust, AIR CLEANER

1шт.

47

D50944

CUP - collector, AIR CLEANER

1шт.

48

L30414

VALVE

- vacuator, AIR CLEANER

1шт.

49

D50945

SPRING

- vacuator valve, AIR CLEANER

1шт.

50

R15731

CLAMP

BOLT AND CLAMP - cup to body, AIR CLEANER

1шт.
