Запчасти Case 400C (070) - THROTTLE CONTROL LINKAGE, SYNCHROMESH MODELS ONLY (02) - ENGINE

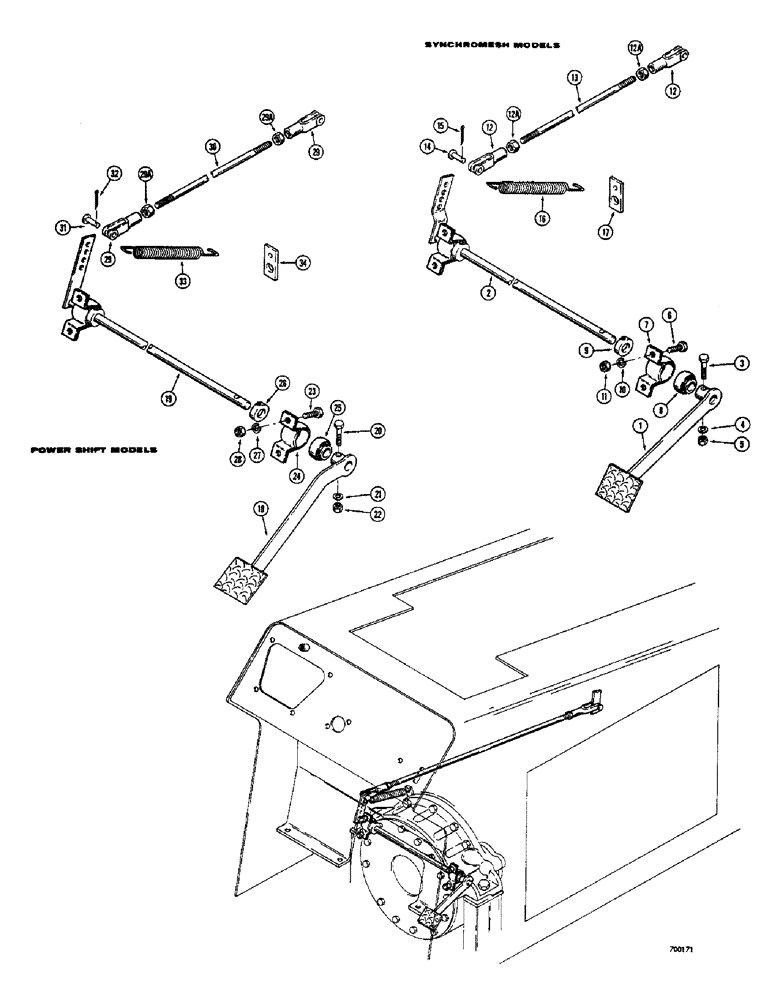

Схема запчастей Case 400C - (070) - THROTTLE CONTROL LINKAGE, SYNCHROMESH MODELS ONLY (02) - ENGINE

Артикул

Название

Примечание

Количество

1

D51176

PEDAL - engine speed control, foot throttle

1шт.

2

D51178

PIVOT

ARM - throttle control

1шт.

3

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

1шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

25-104

NUT,1/4"-20, G5

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

D50986

BEARING BLOCK ASSEMBLY - throttle arm, Includes: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

8

B10700

BEARING ASSY,0.7505" ID x 1.8504" OD x 1.219"

BEARING - shaft

1шт.

9

T10662

COLLAR

- bearing retainer

1шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

12

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - throttle rod

2шт.

12a

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

1шт.

13

D52462

ROD - throttle control

1шт.

14

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis (1/4")

2шт.

15

132-4

PIN - cotter, 1/16" dia. x 7/16"

2шт.

16

D45787

SPRING - throttle return

1шт.

17

D51181

BRACKET - spring retaining

1шт.

18

D51177

PEDAL - engine speed control, foot throttle, POWER SHIFT MODELS ONLY

1шт.

19

D51179

ARM - throttle control, POWER SHIFT MODELS ONLY

1шт.

20

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5, Power Shift models only

1шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Power Shift models only 1/4"

1шт.

22

25-104

NUT,1/4"-20, G5

Power Shift Models Only 1/4"-20, G5

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Power shift models only Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

D50986

BEARING BLOCK ASSEMBLY - throttle arm, POWER SHIFT MODELS ONLY, Includes: Ref. 24 - 26

2шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - bearing, POWER SHIFT MODELS ONLY

1шт.

25

B10700

BEARING ASSY,0.7505" ID x 1.8504" OD x 1.219"

BEARING - shaft, POWER SHIFT MODELS ONLY

1шт.

26

T10662

COLLAR

- bearing retainer, POWER SHIFT MODELS ONLY

1шт.

27

92-6

LOCK WASHER,3/8"

power shift models only 3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), POWER SHIFT MODELS ONLY

4шт.

29

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - throttle rod, POWER SHIFT MODELS ONLY

2шт.

29a

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF), POWER SHIFT MODELS ONLY

1шт.

30

D51180

ROD - throttle control, POWER SHIFT MODELS ONLY

1шт.

31

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis (1/4"), POWER SHIFT MODELS ONLY

2шт.

32

132-4

PIN - cotter, 1/16" dia. x 7/16", POWER SHIFT MODELS ONLY

2шт.

33

D45787

SPRING - throttle return, POWER SHIFT MODELS ONLY

1шт.

34

D51181

BRACKET - spring retaining, POWER SHIFT MODELS ONLY

1шт.

Выбрано товаров: 38
