Запчасти Case 400C (040) - ENGINE GASKET KITS, (336B) DIESEL ENGINE, CYLINDER BLOCK KIT (02) - ENGINE

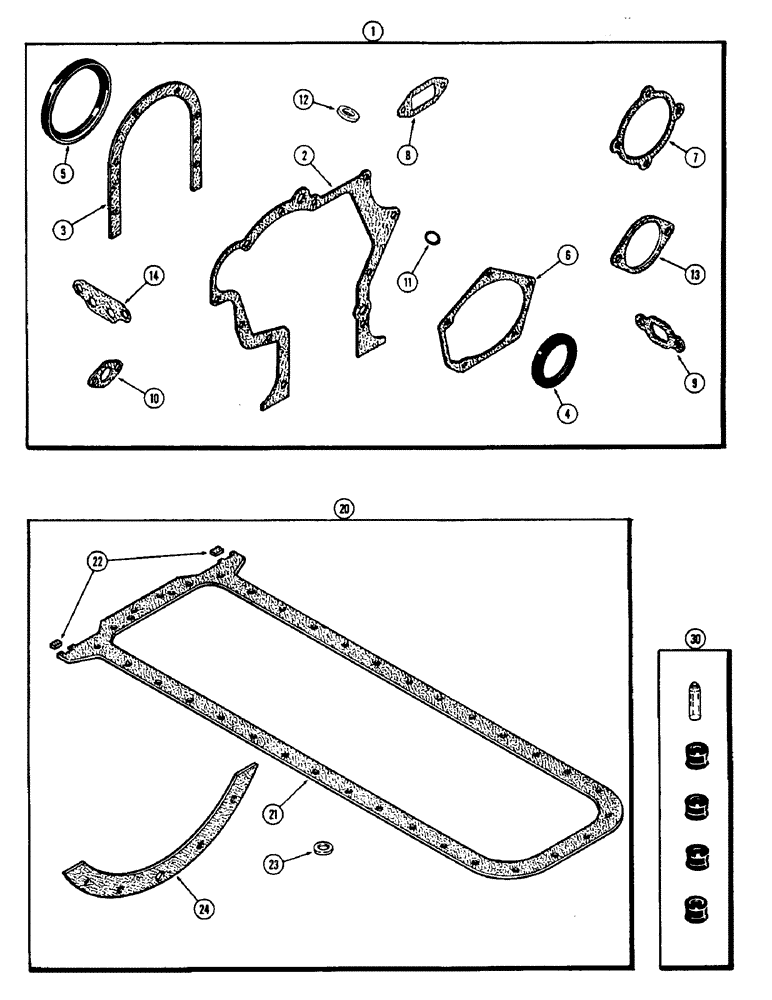

Схема запчастей Case 400C - (040) - ENGINE GASKET KITS, (336B) DIESEL ENGINE, CYLINDER BLOCK KIT (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A44075

GASKET KIT

- cylinder block, Includes: Ref. 2 - 15

1шт.

For complete engine overhaul with 5.189" to 5.194" fire dam diameter sleeves order 1-A46367, 1-A44075 and 1-A42221.

1шт.

2

A58612

GASKET

- timing gear cover

1шт.

3

A32830

GASKET

- rear seal retainer

1шт.

4

A62049

OIL SEAL

- oil, crankshaft, front 2-5/8 x 3-5/8 x 1/2"

1шт.

5

A62050

OIL SEAL

- oil, crankshaft, rear 4-3/4 x 5-3/4 x 1/2"

1шт.

6

A58615

GASKET

- fuel pump cover

1шт.

7

A58756

OIL PAN GASKET SET

- oil filter base

1шт.

8

A58646

GASKET

- water, Serial Range: pump-body

1шт.

9

A58649

GASKET

- water pump, Serial Range: body-block

1шт.

10

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

11

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base (Not used this application)

3шт.

12

A58617

GASKET

- (Not used this application)

1шт.

13

A58670

GASKET

- (Not used this application)

1шт.

14

A76656

GASKET

- (Not used this application)

1шт.

15

A58680

OIL PAN GASKET SET

- (Not used this application)

1шт.

18

A42221

GASKET KIT

- oil pan, Includes: Ref. 19 and 20

1шт.

For complete engine overhaul with 5.092" to 5.097" fire dam diameter sleeves order 1-A44086, 1-A44075 and 1-A42221

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - oil pan KIT

1шт.

20

A27968

RING

- drain plug (Copper) OIL PAN KIT

1шт.

25

M20614

SEAL KIT

SEAL KIT - valves (Incl. 4 seals and installation sleeve) OIL PAN

1шт.

Выбрано товаров: 21
