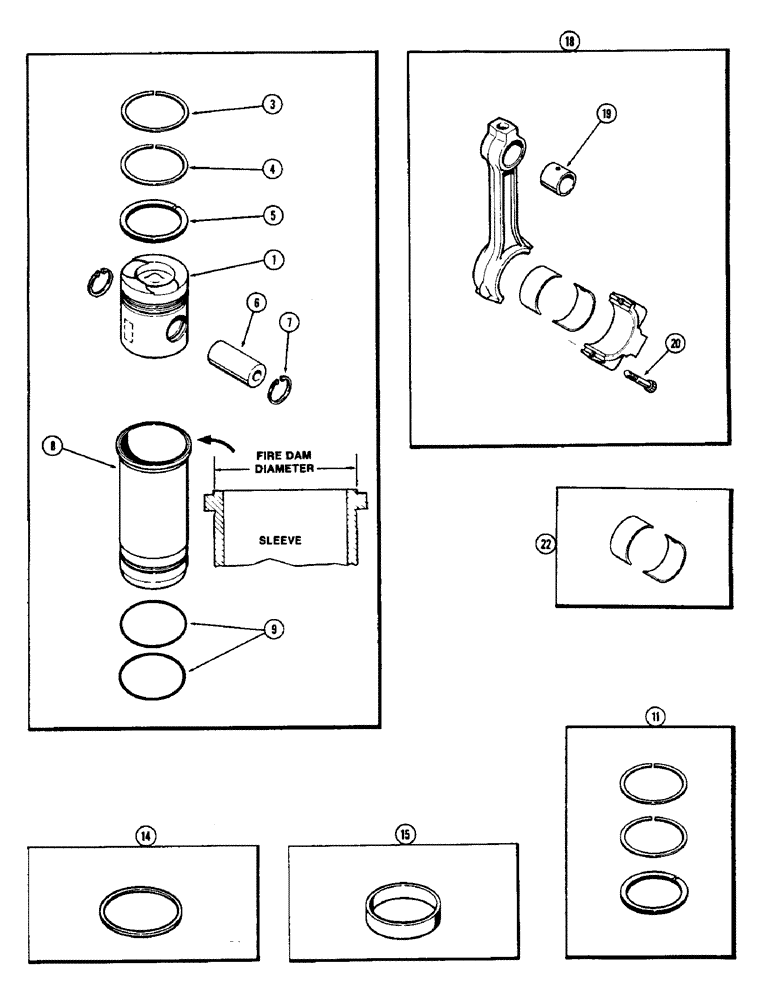

Запчасти Case 400C (032) - PISTONS AND SLEEVES, WITH 5.092 INCH TO 5.097 INCH FIRE DAM DIAMETER SLEEVE, (336B) DIESEL ENGINE (02) - ENGINE

1

A65123

PISTON

PISTON - cylinder

4шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 11)

4шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order ref. 11)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (3rd groove) (Order ref. 11)

4шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

PIN - piston

4шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

8шт.

8

A140216

SLEEVE CYLINDER

SLEEVE - cylinders, (With 2 grooves)

4шт.

9

A146616

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

O-RING - sleeve

8шт.

11

A42988

RING

RING SET - piston re-ring (Set of 1)

8шт.

14

A148553

SHIM

SHIM - sleeve, 0.010" (0.254 MM) (Repairs only)

1шт.

14

A148554

SHIM

SHIM - sleeve, 0.005" (0.127 MM) (Repairs only)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not shown)

1шт.

18

A65032

ROD

ROD ASSEMBLY - connecting, Includes: Ref. 19 and 20

4шт.

18

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

18

AC65032

CORE-ROD CONNECTING

Core Connecting Rod Return Part Number

4шт.

19

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - piston pin CONNECTING ROD

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod bearing cap

2шт.

22

A41758

BEARING LINER

INSERT - connecting rod bearing, (Standard) (Set of 2)

4шт.

22

A41899

BEARING LINER

INSERT - connecting rod bearing, 0.002" (0.051 MM) undersize (Set of 2)

4шт.

22

A41900

BEARING LINER

INSERT - connecting rod bearing, 0.010" (0.254 MM) undersize (Set of 2)

4шт.

22

A41901

BEARING LINER

INSERT - connecting rod bearing, 0.020" (0.508 MM) undersize (Set of 2)

4шт.

22

A41902

BEARING LINER

INSERT - connecting rod bearing, 0.030" (0.762 MM) undersize (Set of 2)

4шт.
