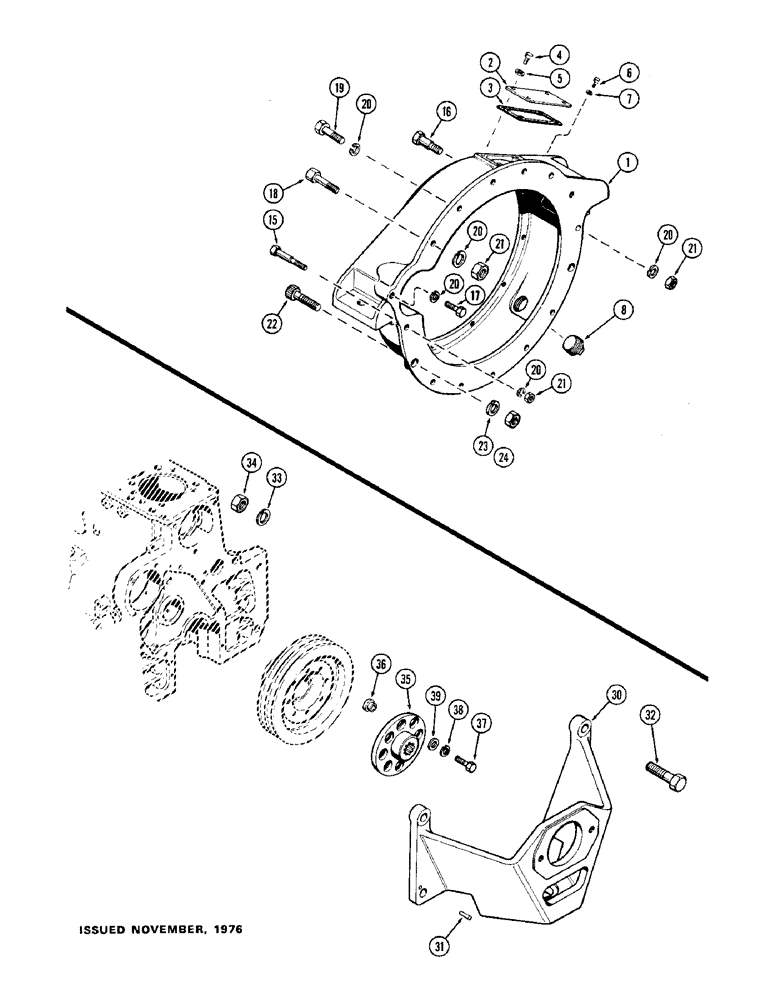

Запчасти Case 400C (030) - FLYWHEEL HOUSING, (336B) DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A21040
HOUSING
- flywheel
1шт.
2
A22584
COVER
PLATE - hand hole cover
1шт.
3
A22585
GASKET
- plate
1шт.
4
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
4шт.
5
92-5
LOCK WASHER,5/16"
4шт.
6
13-48
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
7
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
8
221-7
DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF
PLUG - 1-1/4" sq. hd. pipe
1шт.
15
A32607
STEP BOLT
- 1/2 x 1-3/8" N.C. hex., shoulder
1шт.
16
A32608
STEP BOLT
BOLT - 1/2 x 2-13/16" N.C. hex., shoulder
1шт.
17
13-826
BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5
1шт.
18
13-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
- 1/2 x 2-1/4" N.C. hex
2шт.
19
13-822
BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd
3шт.
20
92-8
LOCK WASHER,1/2"
8шт.
21
25-108
NUT,1/2"-13, G5
- 1/2" N.C. hex.
4шт.
22
166-138
12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8
- 3/4 x 3" N.C. 12 pt.
2шт.
23
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
24
25-1012
NUT,3/4"-10, G5
2шт.
30
L47205
BRACKET
- engine & pump mounting (Replaces L40838) ENGINE FRONT SUPPORT HYDRAULIC DRIVE
1шт.
31
139-64
PIN,1/8" x 1 1/2", Tapered
- taper, #5 ENGINE FRONT SUPPORT HYDRAULIC PUMP DRIVE
2шт.
32
13-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
Engine front support hydraulic pump drive Hex, 3/4"-10 x 3", G5
4шт.
33
92-12
LOCK WASHER,3/4"
WASHER, LOCK, , Engine Front Support Hydraulic Pump Drive 3/4"
4шт.
34
25-1012
NUT,3/4"-10, G5
Engine front support hydraulic pump drive 3/4"-10, G5
4шт.
35
L16692
COUPLING, BREAK AWAY
COUPLING - pump drive ENGINE FRONT SUPPORT HYDRAULIC, Includes: Ref. 36
1шт.
36
G36905
BLOCK
BUSHING - coupling ENGINE FRONT SUPPORT HYDRAULIC PUMP DRIVE
8шт.
37
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 x 1-1/2" N.C. hex. ENGINE FRONT SUPPORT HYDRAULIC PUMP DRIVE
8шт.
38
92-6
LOCK WASHER,3/8"
engine front support hydraulic pump drive 3/8"
8шт.
39
95-6
WASHER,3/8"
- 7/16 x 1 x 5/64" ENGINE FRONT SUPPORT HYDRAULIC PUMP DRIVE
8шт.
Выбрано товаров: 28
