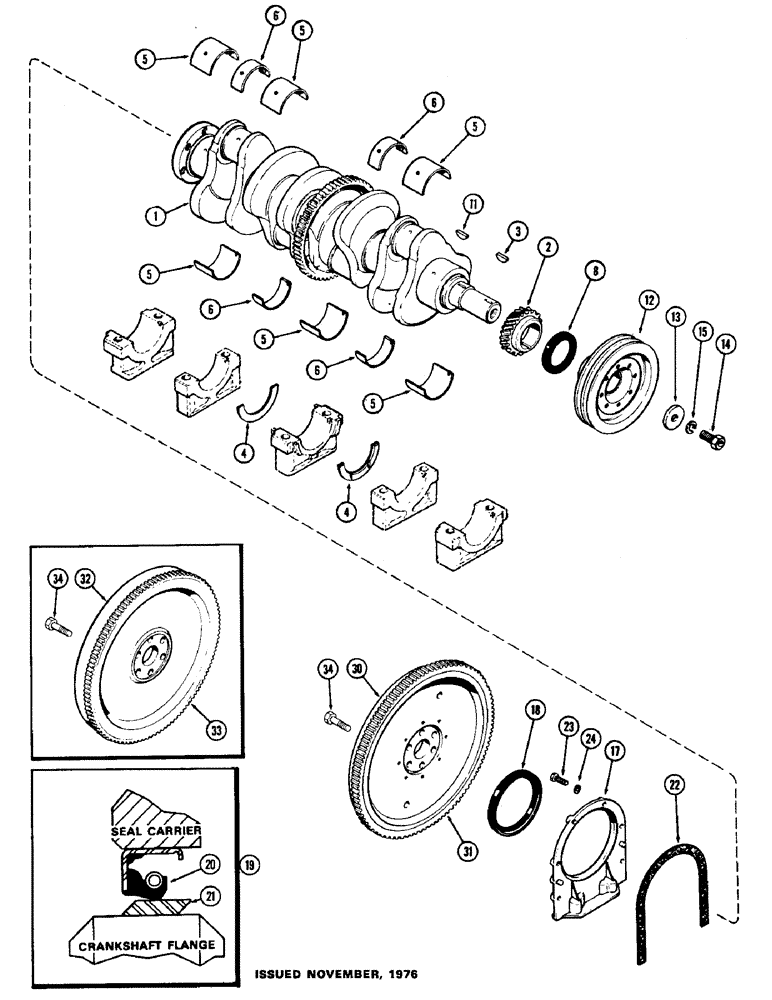

Запчасти Case 400C (028) - CRANKSHAFT AND FLYWHEEL, (336B) DIESEL ENGINE (02) - ENGINE

1

A64473

CRANKSHAFT

ASSY. - engine (Replaces A62240 & A64376), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, crankshaft (.156" wide)

2шт.

4

A42447

WASHER

- thrust, crankshaft (.162" wide)

2шт.

5

A43090

BEARING LINER

LINER - main bearing, wide (Std.) (Replaces A41752)

3шт.

5

A43124

LINING

LINER - main bearing, wide (-.002") (Replaces A41907)

3шт.

5

A43125

CRANKSHAFT BEARING

LINER - main bearing, wide (-.010") (Replaces A41908)

3шт.

5

A43126

LINING

LINER - main bearing, wide (-.020") (Replaces A41909)

3шт.

5

A43127

LINING

LINER - main bearing, wide (-0.30") (Replaces A41910)

3шт.

A43125 CONTAINS 1 OF A43137 & A43141

1шт.

6

A43089

BEARING LINER

LINER - main bearing, narrow (Std.) (Replaces A41759)

2шт.

6

A43120

LINING

LINER - main bearing, narrow (-.002") (Replaces A41903)

2шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow (-.010") (Replaces A41904)

2шт.

6

A43122

LINING

LINER - main bearing, narrow (-.020") (Replaces A41905)

2шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow (-.030") (Replaces A41906)

2шт.

8

A62049

OIL SEAL

- crankshaft front, 2-5/8 x 3-5/8 x 31/64"

1шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

12

A61047

PULLEY

- fan drive

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

A57457

RETAINER

- crankshaft rear oil seal

1шт.

18

A62050

OIL SEAL

- crankshaft, rear, 4-3/4 x 5-3/4 x 1/2" (See ref. 19)

1шт.

19

A43194

KIT

- crankshaft wear seal, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear

1шт.

21

NSS

NOT SOLD SEPARAT

SLEEVE - crankshaft wear

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

30

A58683

FLYWHEEL

ASSY. - (Used w/power shift trans.), Includes: Ref. 31

1шт.

31

A27920

GEAR

- ring (137 teeth)

1шт.

32

A59298

FLYWHEEL ASSY. - (Used w/synchromesh trans.), Includes: Ref. 33

1шт.

33

A27920

GEAR

- ring (137 teeth)

1шт.

34

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

- 5/8 x 1-1/2" N.C. hex.

6шт.
