Запчасти Case 400C (025A) - CAMSHAFT, (336B) DIESEL ENGINE, WITH AND WITHOUT TURBO-CHARGER (02) - ENGINE

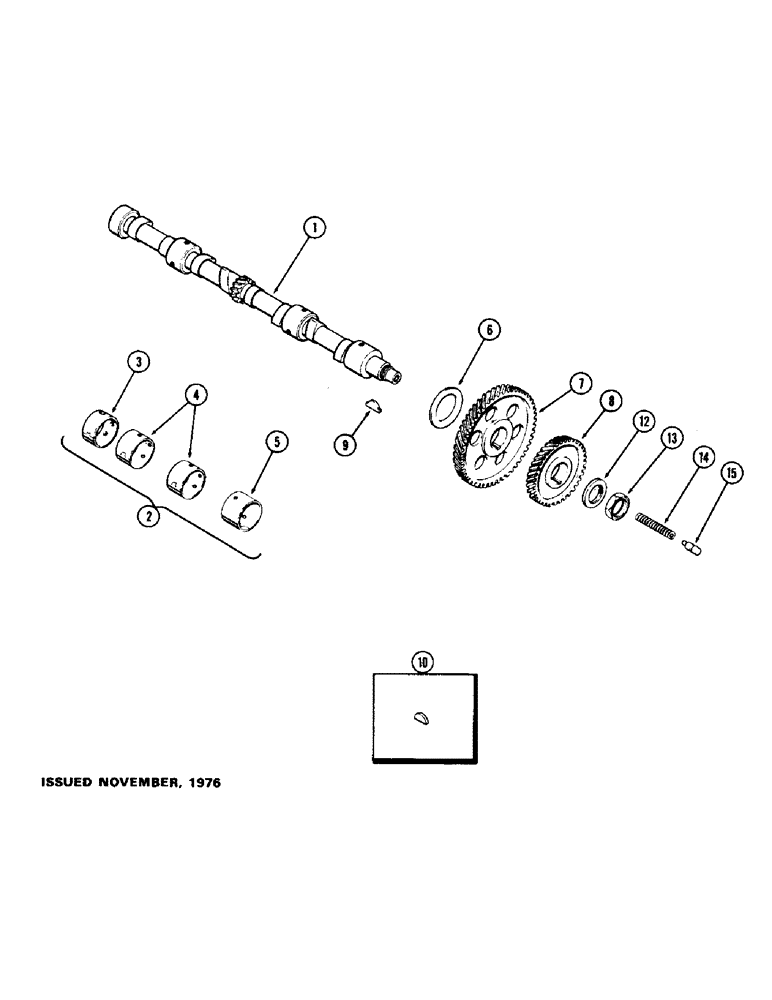

Схема запчастей Case 400C - (025A) - CAMSHAFT, (336B) DIESEL ENGINE, WITH AND WITHOUT TURBO-CHARGER (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A66742

CAMSHAFT

- engine (Replaces A58724 & A62733)

1шт.

1

A58724

CAM

SHAFT - engine (Order A66742 & 126-227)

1шт.

2

A23577

KIT

BUSHING KIT - camshaft (Set of 4), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-5/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1-7/16" wide)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-21/32" wide)

1шт.

6

A21017

WASHER

- camshaft thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - Hi-pro, 5/16 x 1-5/16" (Used w/A66742)

1шт.

10

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

Used w/A58724 #C, 5/16" x 1 1/8"

1шт.

12

A31038

THRUST WASHER

- lock, camshaft nut (Replaces A58594)

1шт.

13

A58595

NUT

- camshaft

1шт.

14

CASA27853

SPRING

- plunger, camshaft thrust

1шт.

15

A27852

PLUNGER

- thrust, camshaft

1шт.

Выбрано товаров: 15
