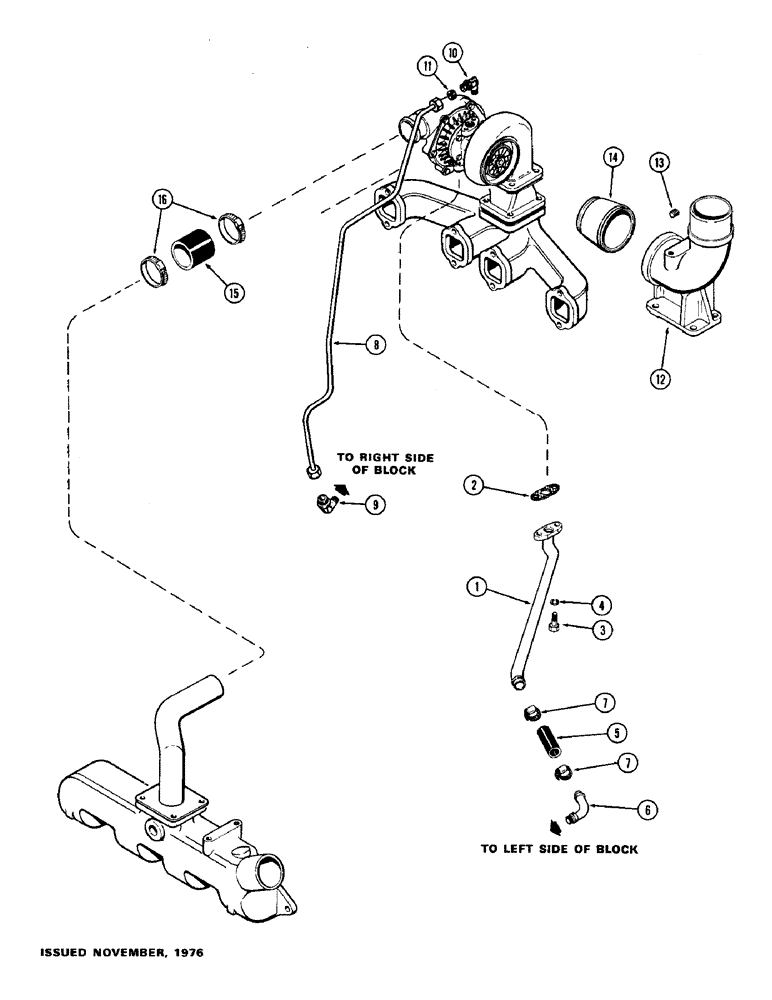

Запчасти Case 400C (016) - TURBO-CHARGER, (336B) DIESEL ENGINE (02) - ENGINE

1

A59228

TUBE

ASSY. - turbo-charger oil drain

1шт.

2

A58892

GASKET,1.59mm Thk

- drain tube

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

A58893

HOSE

- drain, Serial Range: tube-fitting

1шт.

6

A59234

FITTING

- turbo-charger drain

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

8

A62477

TUBE

- turbo-charger oil supply (Replaces A59236)

1шт.

9

222-4047

ELBOW

- 3/8" tube, 1/4" P.T.

1шт.

10

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- 3/8" tube x 3/8" P.T.

1шт.

11

222-154

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

12

A61941

ELBOW

- turbo-charger exhaust

1шт.

13

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" sq. hd. pipe

1шт.

14

A58896

SLEEVE

CONNECTOR - exhaust elbow

1шт.

15

A58894

HOSE

- air intake

1шт.

16

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.
