Запчасти Case 400C (014) - MANIFOLD AND TURBO-CHARGER, (336B) DIESEL ENGINE (02) - ENGINE

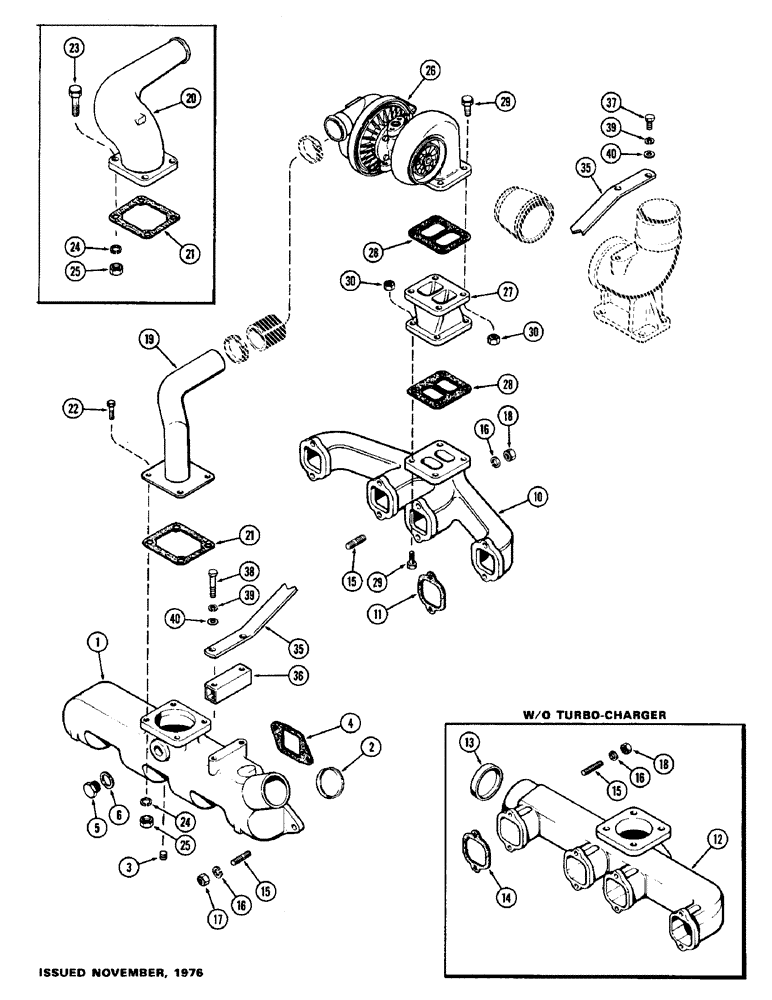

Схема запчастей Case 400C - (014) - MANIFOLD AND TURBO-CHARGER, (336B) DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A59225

MANIFOLD

ASSY. - intake, Includes: Ref. 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8 cup

1шт.

3

221-1840

PLUG

- 1/8" hex. sckt. hd. pipe

1шт.

4

A58662

MANIFOLD GASKET

- intake manifold

4шт.

5

A20917

PLUG

- intake manifold

1шт.

6

A20916

MANIFOLD GASKET

GASKET - manifold plug

1шт.

10

A61001

MANIFOLD

- exhaust (W/turbo-charger)

1шт.

11

A58895

GASKET

- exhaust manifold (W/turbo-charger)

4шт.

12

A64967

MANIFOLD

ASSY. - exhaust (W/o turbo-charger) (1st used eng. ser. no. 2316079) (Incl. item 13) (Replaces A62290 & A59293)

1шт.

12

A59293

TUBE ASSY.

MANIFOLD ASSY. - exhaust (W/o turbo-charger) (Used prior to engine ser. no. 2316079) (Order A64967), Includes: Ref. 13

1шт.

13

A58750

PLUG,Cup, 3 1/4", Stainless

- 3-1/4" cup

1шт.

14

A58666

MANIFOLD GASKET

- exhaust manifold (W/o turbo-charger)

4шт.

15

A59077

STUD

- 3/8" N.C. x 1-3/4"

16шт.

16

92-6

LOCK WASHER,3/8"

16шт.

17

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Intake manifold)

8шт.

18

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez-Pruf (Exhaust manifold)

8шт.

19

A77242

ELBOW

- air intake, turbo-charger (Formed tube) (Replaces A58903)

1шт.

20

A58903

ELBOW UNION

ELBOW - air intake, turbo-charger (Cast) (Order A77242 & 4-13-624 bolts)

1шт.

21

A58910

GASKET

- elbow

1шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex. (Used w/A77242 elbow)

4шт.

23

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Used w/A58903 elbow) Hex, 3/8"-16 x 1 3/4", G5

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

26

A157337

TURBOCHARGER

1шт.

26

A42166

REMAN-TURBOCHARGER

Remanufactured Turbocharger, original equipment, No Longer Available, Order A48194

1шт.

26

A42165

CORE

Return Part Number

1шт.

26

A48194

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

26

A48193

CORE-TURBOCHARGER

Return Part Number

1шт.

27

A61002

ADAPTER

BASE - turbo-charger adapter

1шт.

28

A58899

GASKET,0.45mm Thk

- turbo-charger

2шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

8шт.

30

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez-Pruf

8шт.

35

A61942

BRACE

- elbow to intake manifold

1шт.

36

A67057

SPACER

- intake manifold (Replaces A61945)

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Brace to elbow Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

38

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(Brace to manifold) Hex, 3/8"-16 x 2 1/4", G5

2шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

Выбрано товаров: 38
