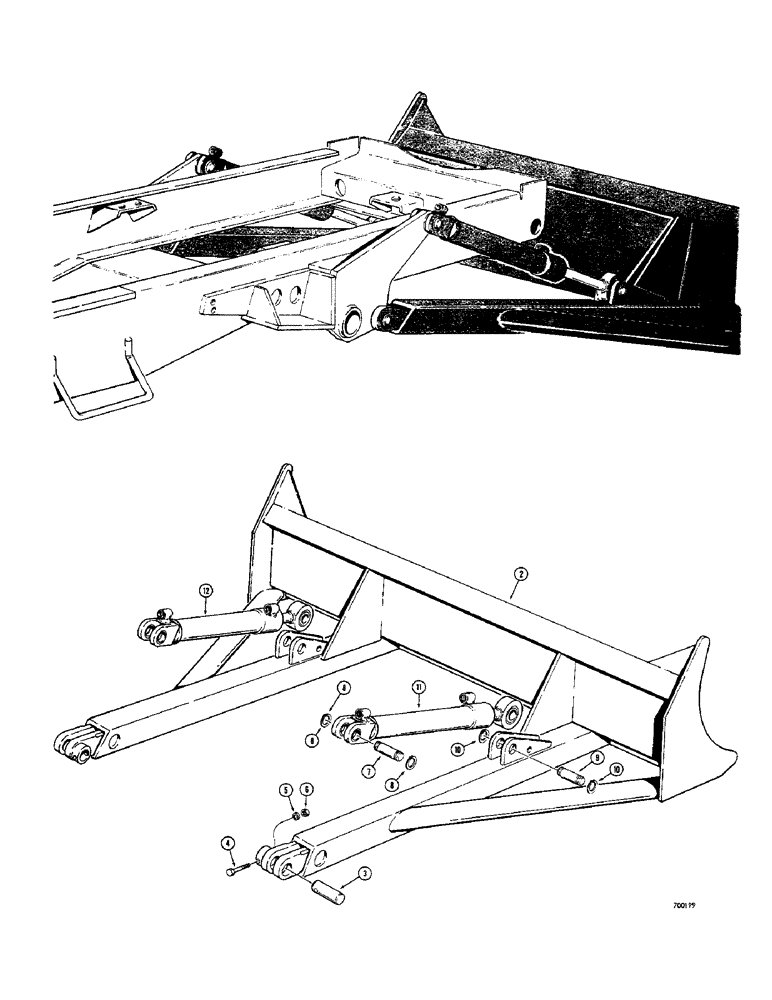

Запчасти Case 400C (238) - DECKING BLADE (88) - ACCESSORIES

1

D50259

FRONT FRAME - skidder (See Figure 180 for related parts)

1шт.

2

D50897

FRAME AND BLADE ASSEMBLY - decking blade

1шт.

3

D50898

PIN - decking blade frame to skidder frame

2шт.

4

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

HHCS - 1/2" - 13 NC x 3-1/4"

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

7

D28037

AXLE PIN

PIN - mounting, lift cylinder to skidder frame

2шт.

8

R13338

SNAP RING,#150, Ext

Ring, Snap, , lift cylinder pin #150, Ext

4шт.

9

D25078

PIN

- mounting, lift cylinder to dozer frame

2шт.

10

R13338

SNAP RING,#150, Ext

Ring, Snap, , lift cylinder pin #150, Ext

4шт.

11

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. decking blade lift (3-1/2" I.D. x 16" stroke) Parts list Figure 242

1шт.

12

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. decking blade lift (3-1/2" I.D. x 16" stroke) Parts list Figure 242

1шт.
