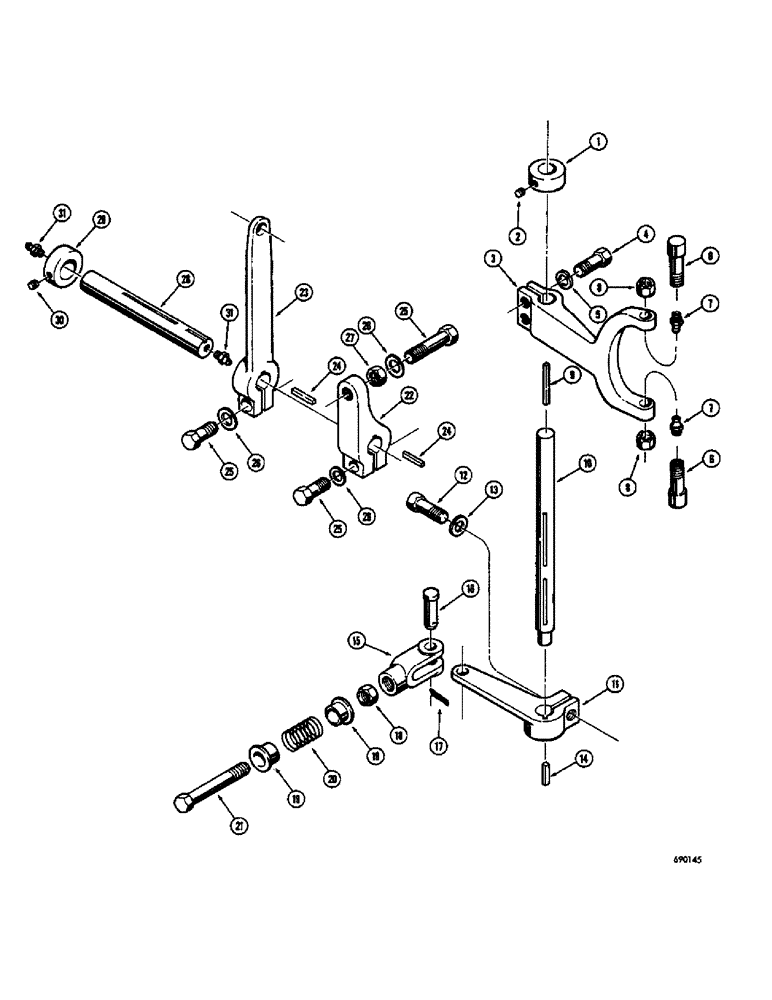

Запчасти Case 400C (234) - SWEED WINCH, CLUTCH LINKAGE (88) - ACCESSORIES

1

D46565

COLLAR - shaft

1шт.

2

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex. socket head (5/16" - 18 NC x 3/8")

1шт.

3

D48194

FORK - internal clutch

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

D48193

BEARING - clutch fork

2шт.

7

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, 3/16" drive

2шт.

8

D48345

NUT - hex., lock (3/8" - 24 NF)

2шт.

9

D46558

KEY - clutch, Serial Range: yoke-shaft

1шт.

10

D48162

SHAFT - internal clutch fork

1шт.

11

D48163

LEVER - internal clutch

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

D46558

KEY - clutch, Serial Range: lever-shaft

1шт.

15

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clevis, clutch lever

1шт.

16

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

17

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

18

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

19

D48164

GUIDE - spring, USED ON MODELS WITH EXTERNAL CLUTCH

2шт.

20

D48165

STAND

SPRING - return, USED ON MODELS WITH EXTERNAL CLUTCH

1шт.

21

14-672

BOLT,Hex, 3/8" - 24 x 4-1/2", Gr 5

HHCS - 3/8" - 24 NF x 4-1/2", USED ON MODELS WITH EXTERNAL CLUTCH

1шт.

22

D48166

ARM - internal clutch actuating, USED ON MODELS WITH EXTERNAL

1шт.

23

D48167

LEVER - clutch cable, USED ON MODELS WITH EXTERNAL

1шт.

24

D46558

KEY - lever and arm to shaft, USED ON MODELS WITH EXTERNAL CLUTCH

2шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Used on models with external clutch Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

26

92-6

LOCK WASHER,3/8"

used on models with external clutch 3/8"

3шт.

27

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC), USED ON MODELS WITH EXTERNAL CLUTCH

1шт.

28

D48168

SHAFT - clutch, USED ON MODELS WITH EXTERNAL

1шт.

29

D46565

COLLAR - shaft, USED ON MODELS WITH EXTERNAL CLUTCH

1шт.

30

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex. socket head (5/16" - 1 NC x 3/8"), USED ON MODELS WITH EXTERNAL CLUTCH

1шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, Used on models with external clutch 1/4"-28 NPT x .54" lg

2шт.
