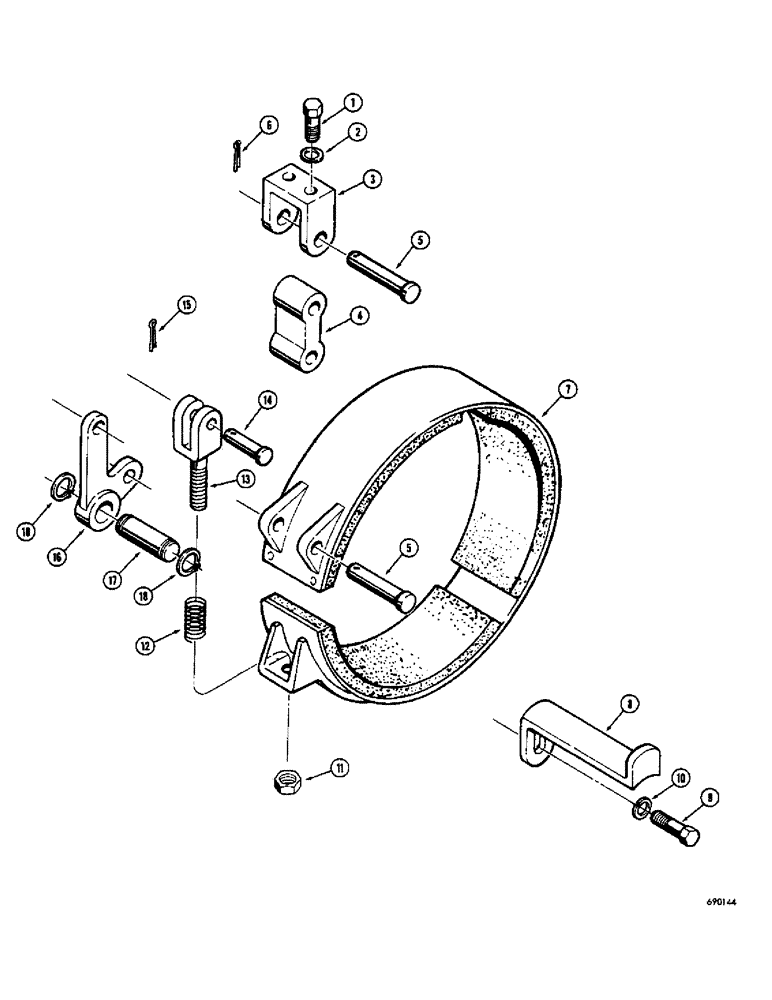

Запчасти Case 400C (232) - SWEED WINCH, BRAKE BAND AND LINKAGE (88) - ACCESSORIES

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

2

92-8

LOCK WASHER,1/2"

2шт.

3

D48156

BLOCK - brake band anchor

1шт.

4

D48158

LINK - brake band anchor

1шт.

5

D48334

PIN - anchor link

2шт.

6

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

7

D48157

BAND ASSEMBLY - brake

1шт.

8

D48161

BRACKET - brake band support

1шт.

9

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

10

92-7

LOCK WASHER,7/16"

1шт.

11

D46599

NUT - self-aligning

1шт.

12

D46581

SPRING - yoke

1шт.

13

D46589

YOKE - brake band

1шт.

14

D48335

PIN - yoke

1шт.

15

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

16

D48160

LEVER - brake

1шт.

17

D48159

PIN - brake lever anchor

1шт.

18

D48192

SNAP RING - anchor pin

2шт.
