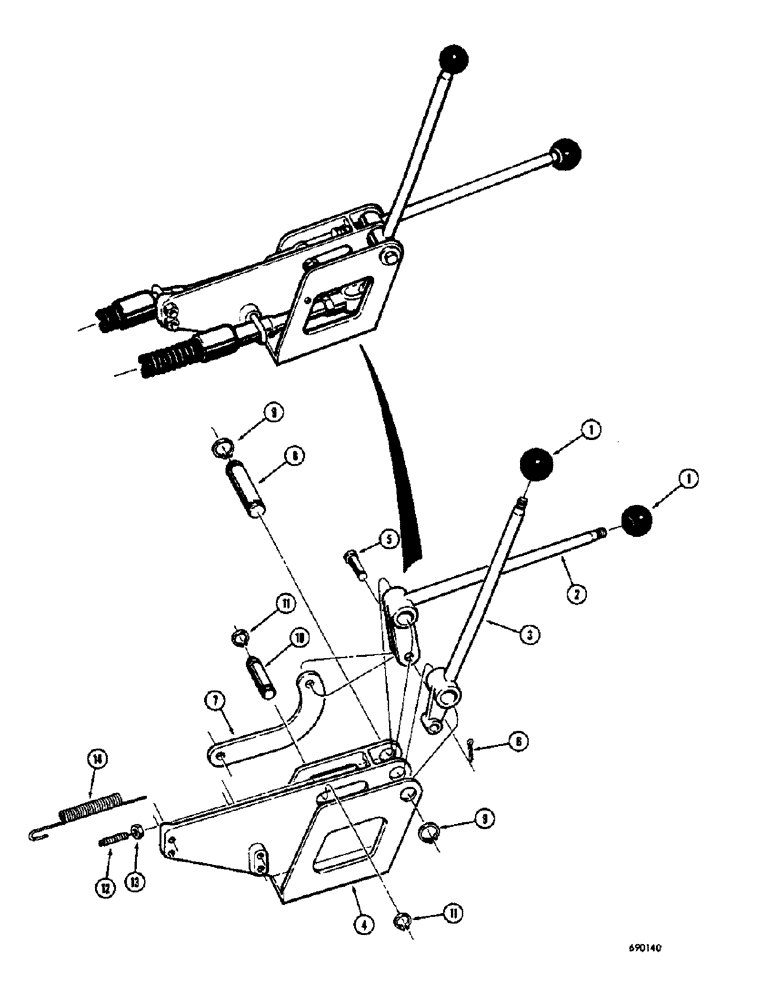

Запчасти Case 400C (222) - SWEED WINCH, WINCH CONTROL LEVERS (88) - ACCESSORIES

1

A23885

KNOB

- lever

2шт.

2

D48169

LEVER - winch brake

1шт.

3

D48175

LEVER - clutch control

1шт.

4

D48173

BASE - control levers

1шт.

5

D46572

PIN - brake lever

1шт.

6

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

7

D48170

LINK - brake over center

1шт.

8

D48171

SHAFT - control levers

1шт.

9

D48192

SNAP RING - lever shaft

2шт.

10

D48172

PIN - over center link

1шт.

11

D48333

SNAP RING - link pin

2шт.

12

181-647

SET SCREW - 3/8" - 16 NC

1шт.

13

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

1шт.

14

D48174

SPRING - clutch lever (Used with winches not having external drive shaft clutch)

1шт.
