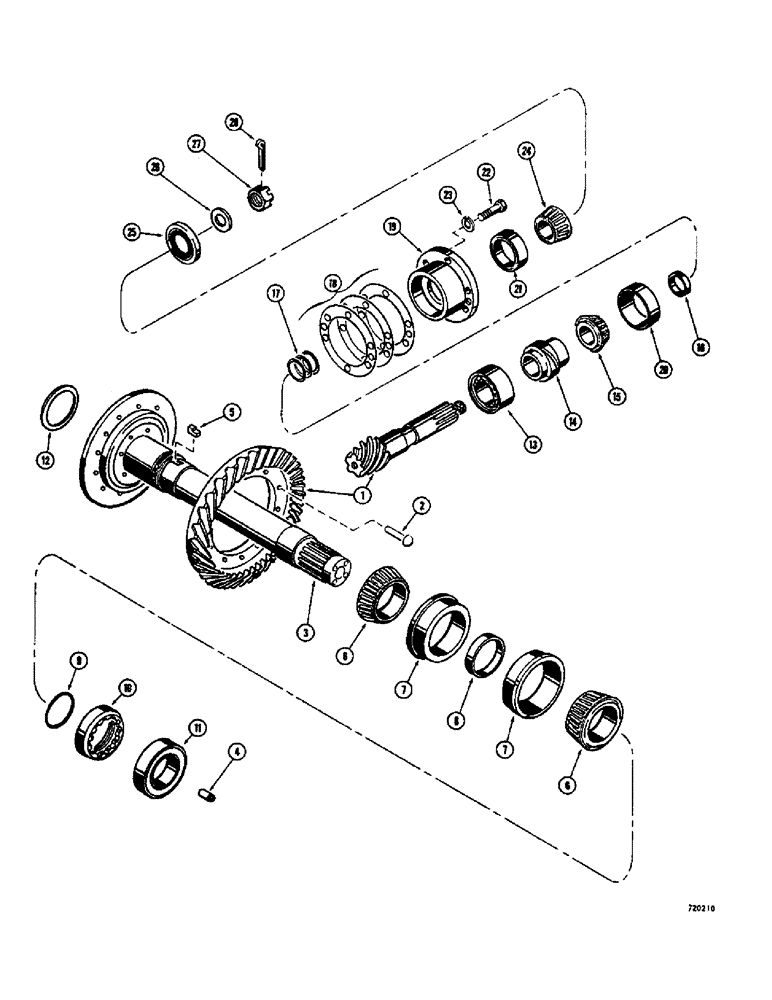

Запчасти Case 400C (219A) - RING GEAR, PINION AND SHAFT, USED WINCH SERIAL NUMBER 19-9000 AND AFTER (88) - ACCESSORIES

R26083

SHAFT ASSY.

DRUM SHAFT, RING GEAR AND PINION ASSEMBLY, Includes: Ref. 1 - 4

1шт.

1

D38205

RING GEAR AND PINION ASSEMBLY, Includes: Ref. 2

1шт.

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

NSS

NOT SOLD SEPARAT

PINION

1шт.

2

D38208

RIVET

- gear, ring (1/2" x 2")

16шт.

R26082

SHAFT ASSY.

SHAFT ASSEMBLY - drum, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - drum

1шт.

4

D37904

RETAINER

- cup

1шт.

5

D38191

KEY - lock

1шт.

6

D38342

CONE

- bearing

2шт.

7

D38341

CUP

- bearing

2шт.

8

D38027

SPACER - bearing

1шт.

9

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

SEAL - "O"ring

1шт.

10

D38024

NUT - lock, special

1шт.

11

D40602

BEARING

- ball

2шт.

12

R26084

SPACER

1шт.

13

D38344

BEARING

- roller

1шт.

14

D38020

SPACER

SLEEVE - spacer

1шт.

15

A15022

CUP ASSY.

CONE - bearing

1шт.

16

D38203

SPACER

- bearing, pinion

1шт.

17

D38204

SHIM SET - spacer

1шт.

18

D38202

SHIM SET - housing

1шт.

D38201

HOUSING ASSEMBLY - bearing, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

20

A18356

BEARING

CUP - bearing, inner

1шт.

21

40395

BEARING, CUP

CUP - bearing, outer

1шт.

22

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

6шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

24

D38345

CONE

- bearing

1шт.

25

D38017

OIL SEAL

SEAL - oil

1шт.

26

D38015

WASHER - special

1шт.

27

D38016

NUT

- pinion, special

1шт.

28

132-58

COTTER PIN

PIN - cotter (1/8" x 2-1/4")

1шт.
