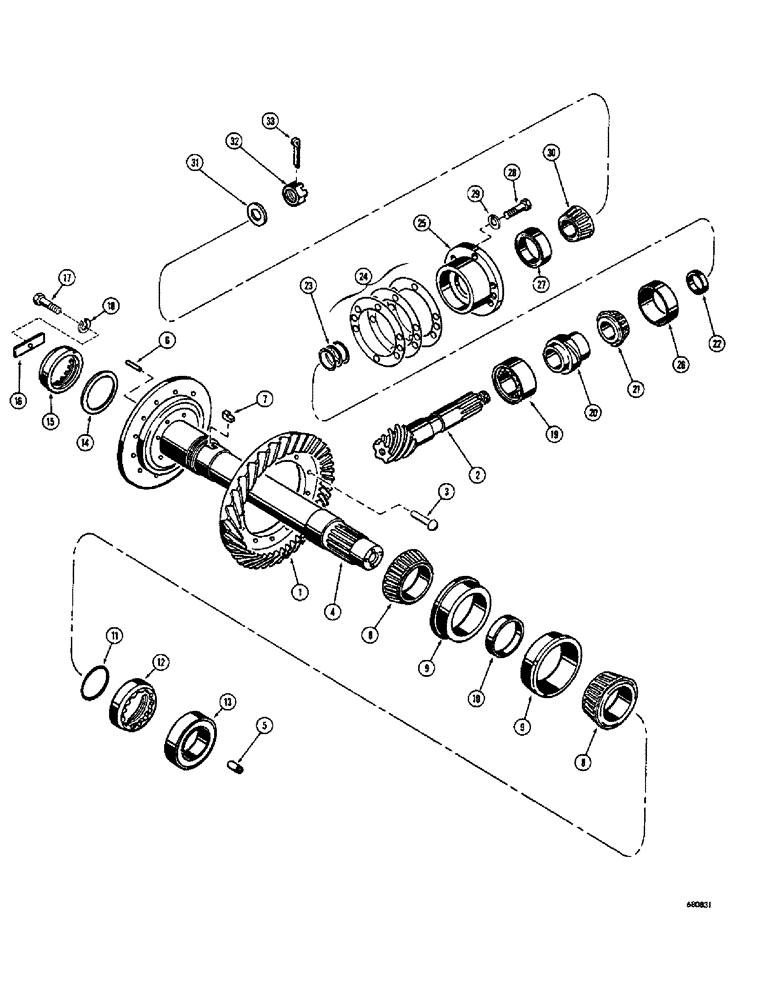

Запчасти Case 400C (218) - GEARMATIC WINCH, RING GEAR, PINION AND SHAFT, BEFORE WINCH SERIAL NUMBER 19-9000 (88) - ACCESSORIES

D38019

DRUM SHAFT, RING GEAR AND PINION ASSEMBLY, Includes: Ref. 1 - 5

1шт.

Serviced with R26086 drum shaft, ring gear and pinion kit. R26086 kit includes R26083 gear, pinion and shaft assembly and R26084 spacer.

1шт.

D38205

RING GEAR AND PINION ASSEMBLY, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

2

NSS

NOT SOLD SEPARAT

PINION

1шт.

3

D38208

RIVET

- gear, ring (1/2" x 2")

16шт.

D38206

SHAFT ASSY.

SHAFT ASSEMBLY - drum, Includes: Ref. 4 and 5

1шт.

Serviced with R26085 drum shaft kit. R26085 kit includes R26082 drum shaft and R26084 spacer.

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - drum

1шт.

5

D37904

RETAINER

- cup

1шт.

6

D38022

KIT - adj. pin (6 matched pins)

1шт.

7

D38191

KEY - lock

1шт.

8

D38342

CONE

- bearing

2шт.

9

D38341

CUP

- bearing

2шт.

10

D38027

SPACER - bearing

1шт.

11

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

SEAL - "O"ring

1шт.

12

D38024

NUT - lock (Special)

1шт.

13

D40602

BEARING

- ball

1шт.

14

D38023

SPACER

- thrust

1шт.

15

D38024

NUT - lock (Special)

1шт.

16

D38025

PLATE, LOCKING

PLATE - lock

1шт.

17

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS - 3/8" - 24 NF x 1/2"

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

D38344

BEARING

- roller

1шт.

20

D38020

SPACER

SLEEVE - spacer

1шт.

21

A15022

CUP ASSY.

CONE - bearing

1шт.

22

D38203

SPACER

- bearing, pinion

1шт.

23

D38204

SHIM SET - spacer

1шт.

24

D38202

SHIM SET - housing

1шт.

D38201

HOUSING ASSEMBLY - bearing, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

26

A18356

BEARING

CUP - bearing, inner

1шт.

27

40395

BEARING, CUP

CUP - bearing, outer

1шт.

28

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

6шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

30

D38345

CONE

- bearing

1шт.

31

D38015

WASHER - special

1шт.

32

D38016

NUT

- pinion, special

1шт.

33

132-58

COTTER PIN

PIN - cotter, 1/8" dia. x 2-1/4"

1шт.
