Запчасти Case 400C (214) - GEARMATIC WINCH, CABLE DRUM AND BRAKE BANDS (88) - ACCESSORIES

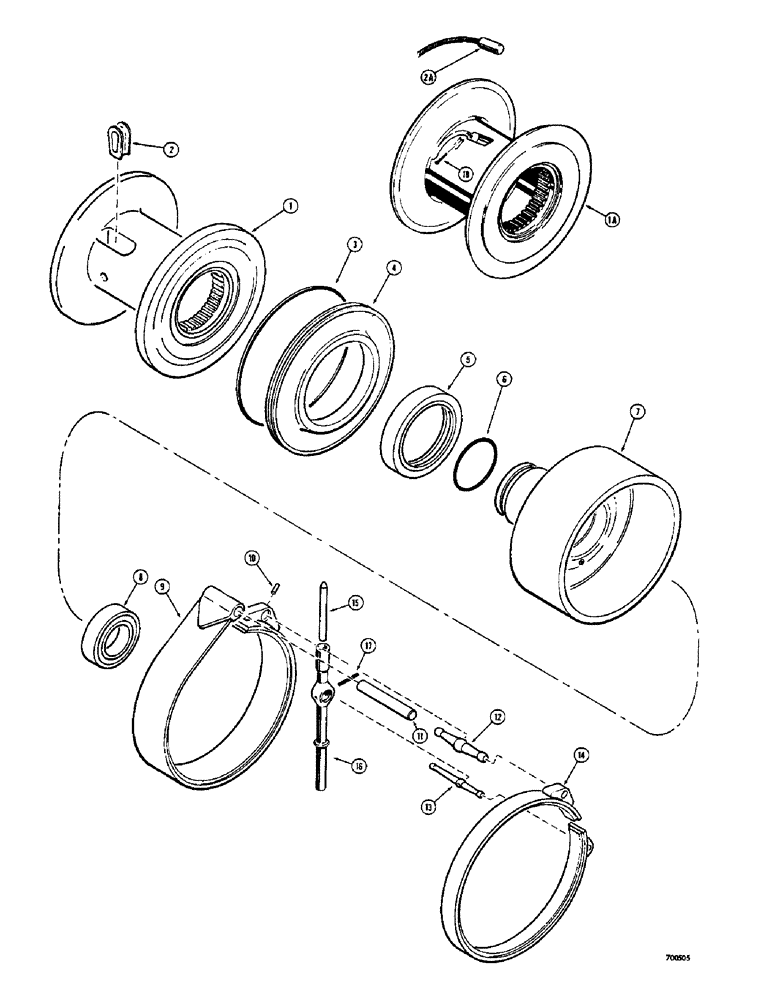

Схема запчастей Case 400C - (214) - GEARMATIC WINCH, CABLE DRUM AND BRAKE BANDS (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

D38167

DRUM - cable, used before winch serial no. 19-5000 (When stock is exhausted, order D48330 drum and appropriate ferrule for service)

1шт.

1a

D48330

DRUM

- cable, used on winch serial no. 19-5000 and after

1шт.

2

D38190

HONDU - drum cable retaining

1шт.

2a

D48859

FERRULE - drum cable, for 7/16" and 1/2" cable (Used with D48330 drum only)

1шт.

2a

D48860

FERRULE

- drum cable, for 9/16" and 5/8" cable (Used with D48330 drum only)

1шт.

2a

D48861

FERRULE

- drum cable, for 11/16" and 3/4" cable (Used with D48330 drum only)

1шт.

3

D38219

O-RING

SEAL - "O" ring

1шт.

4

D38169

HOUSING - seal, oil

1шт.

5

D38168

SEAL - oil

1шт.

6

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

7

D38171

DRUM - brake

1шт.

8

D40602

BEARING

- ball

1шт.

9

D38188

CLAMP

BAND - brake, secondary

1шт.

10

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.

11

D38195

PIN - anchor, brake

1шт.

12

D38196

LEVER - brake, secondary

1шт.

13

D38189

LEVER - brake, primary

1шт.

14

D38187

BAND

- brake, primary

1шт.

15

D37885

ROD

- push

1шт.

16

D42857

LEVER

BLOCK - brake band

1шт.

17

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

18

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , If used 1/8" x 2"

1шт.

Выбрано товаров: 22
